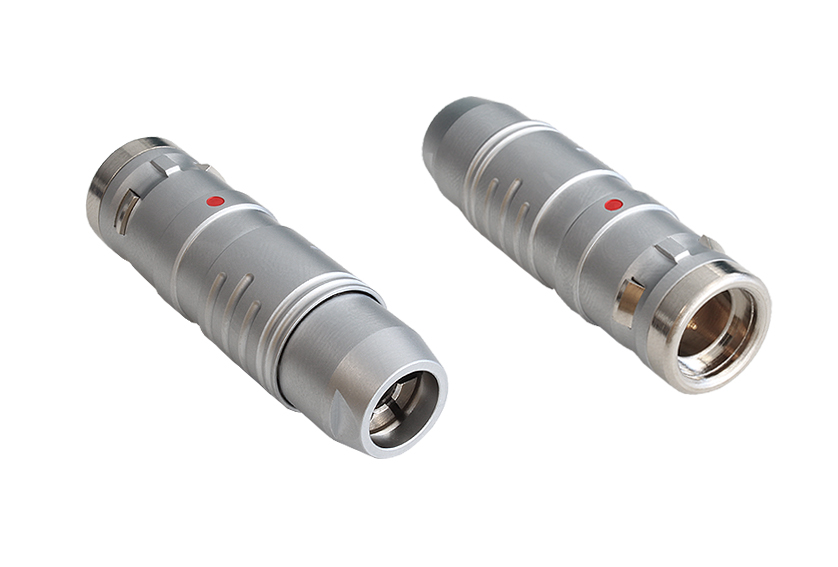

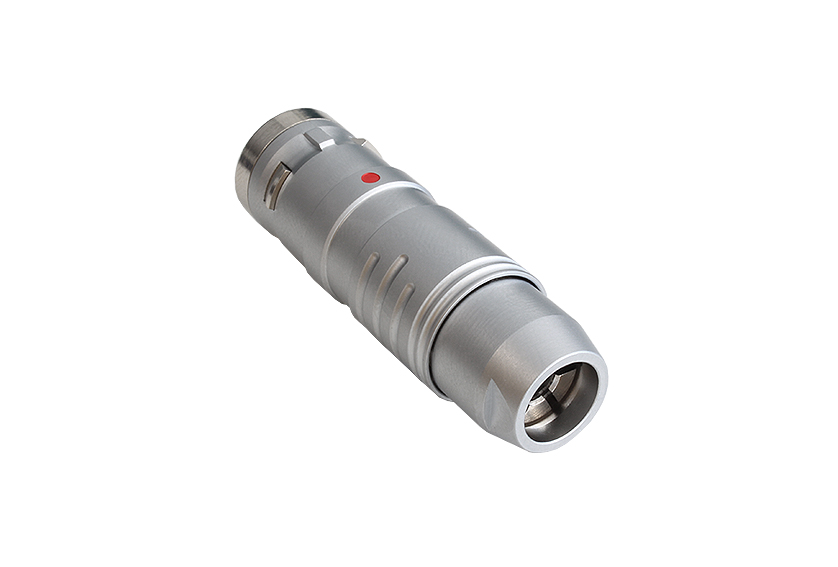

2 Contacts Straight Plug 2Y Series Push Pull Connector
€84.01*
Prices excl. VAT plus shipping costs
Article number:PPCFGG2K02CLAD
Manufacturer number:PPCFGG2K02CLAD
Brand:Bulgin
Minimum order quantity:2
Datasheet (EN)Specifications
| contact_pin_material: | Brass gold plated 3u" |
|---|---|
| current_max: | 30A |
| diameter_over_coupling_ring_mm: | 16mm |
| durability: | >4500 cycles |
| function: | Straight Plug Push Pull Connector |
| insulator: | PPS |
| ip_rating: | IP66 |
| locking_sleeve_material: | Brass plated |
| max_cable_entry_size: | 5.0mm |
| max_contact_accomodation_awg: | 16AWG |
| max_contact_accomodation_mm2: | 1.5mm2 |
| max_operating_temperature: | +200°C |
| min_cable_entry_size: | 4.6mm |
| min_operating_temperature: | -50°C |
| number_of_contacts: | 2 Contacts |
| operating_humidity: | 0.95 |
| pin_pin_terminal_voltage: | 2100V |
| pin_shell_terminal_voltage: | 1750V |
| push_pull_connector_series: | 2Y Series |
| rohs_compliant: | |
| salt_spray_corrosion_test: | 48h |
| shielding_efficiency_max: | 80dB |
| shielding_efficiency_min: | 95dB |
| shock_resistance: | 100g |
| terminal_diameter: | 2mm |
| uniek_nr: | blgPPCFGG2K02CLAD |
| vibration_resistance_max: | 2000Hz |
| vibration_resistance_min: | 10Hz |
