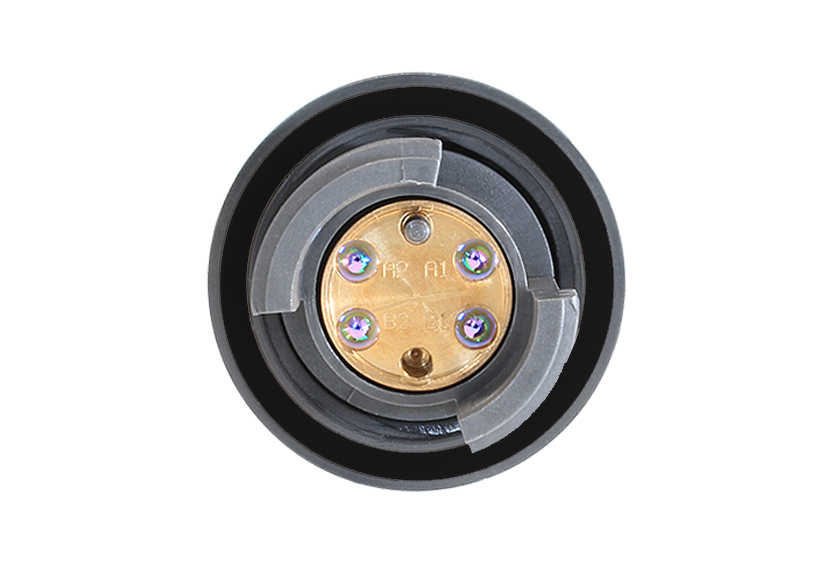

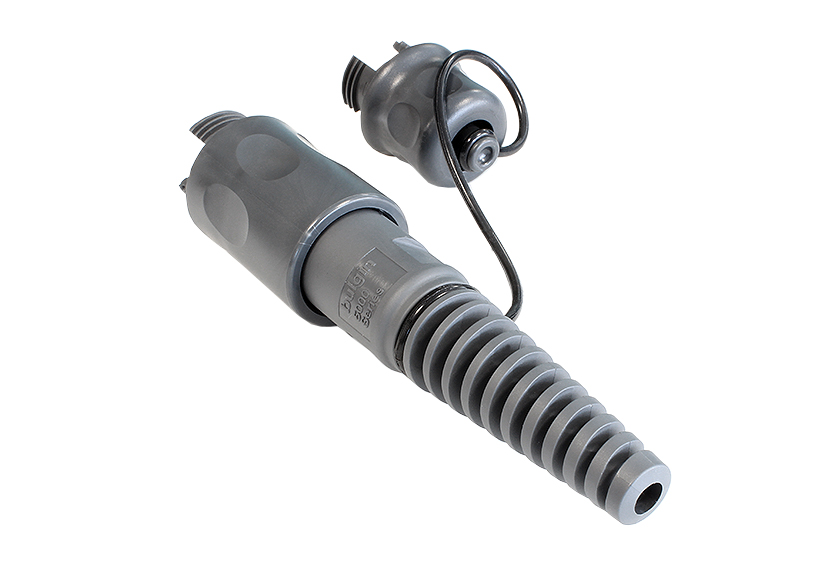

4 Channel Plug Connector
€842.47*
Prices excl. VAT plus shipping costs
Article number:PXEB5400MM5560
Manufacturer number:PXEB5400MM5560
Brand:Bulgin
Minimum order quantity:3
Datasheet (EN)Specifications
| avg_insertion_loss: | <1.5dB |
|---|---|
| body_colour: | Dark Grey |
| body_material: | Polycarbonate/Polybutylene Terephthalate (PC/PBT) |
| body_material_type: | Plastic Body |
| contact_type: | Expanded Beam |
| coupling_type: | Screw |
| diameter_over_coupling_ring_mm: | 30mm |
| fibre_mode: | MM |
| flamability_rating: | UL94V-0 |
| function: | EB Plug Connector |
| ip_rating: | IP68 |
| material_finish: | Matt |
| max_cable_entry_size: | 6mm |
| max_insertion_loss: | <2dB |
| max_operating_temperature: | +80°C |
| min_cable_entry_size: | 5.5mm |
| min_operating_temperature: | -50°C |
| rohs_compliant: | |
| uniek_nr: | blgPXEB5400MM5560 |
