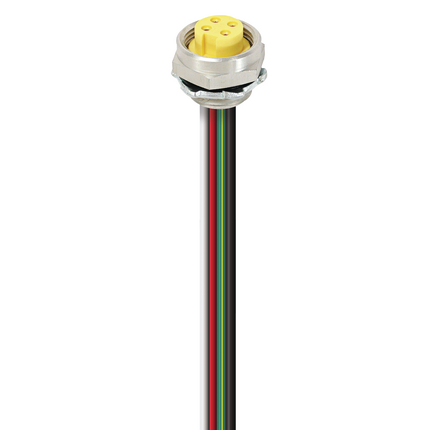

Mini Power Receptacle Connector
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:RKFPA 4-1/2NPT-805/3M
Manufacturer number:511000383
Brand:Lumberg Automation
Minimum order quantity:1
Product information
The Mini Power Receptacle Connector is a dependable solution for power connections in industrial and automation systems. This connector features a 7/8" size, female contact, front mount design, and has 4 pins (3+PE). It is housed in a durable silver housing made from brass and nickel plating, ensuring long-lasting performance under tough conditions. Rated for 600 V and 15 A, the connector supports 14 AWG conductors and offers reliable connectivity in various applications. It ensures a high level of protection with IP65 and IP67 ratings when used with compatible connectors. With an operational temperature range of -40°C to +90°C, it provides flexibility and reliability in extreme environments.
Downloads
Datasheet (EN)Specifications
| Ambient Temperature (Fixed Installation): | -40 °C to +90 °C |
|---|---|
| Ambient Temperature (Operation)*: | -40°C to +90°C |
| CSA: | C-UL LISTED: E482233 |
| Cable Length: | 3 m |
| Conductor Size: | 14 AWG |
| Conductor material: | Cu |
| Connector Design: | straight |
| Connector Type: | Receptacle |
| Contact Base Material (#1): | Cu Alloy |
| Contact Bearer Color: | black |
| Contact Bearer Material (#1): | PVC |
| Contact Plating: | Au |
| Customer Specific Product: | |
| Housing Color: | Silver |
| Housing Material: | Brass |
| Housing Plating: | Ni |
| Insulated Wire Diameter: | ø 0.132 in |
| Item Description: | RKFPA 4-1/2NPT-805/3M |
| Long Description (#1): | Mini Power Receptacle Connector: 7/8", female, front mount, 4-pin(3+PE), silver housing, 600 V, 15 A, 14 AWG |
| Mating Cycles: | ≤ 100 |
| Number of Pins: | 4(3+PE) |
| Number of Wires: | 4 |
| Part Number (#1): | 511000383 |
| Product Family: | Power Connector |
| Product Sub Family: | Mini Power 7/8" |
| Protection Degree / IP Rating (IEC 60529): | IP65, IP67 |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Protection Degree / IP Rating Note: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. |
| Rated Current (UL)*: | 15 A |
| Rated Voltage (UL): | 600 V |
| RoHS Compliant: | yes |
| Shielding: | Unshielded |
| Type of Contact / Gender: | female |
| UL: | UL 2237 |
| UL-File: | UL: E482233 |
| Wire Insulation Material: | PVC |
| uniek_nr: | aut511000383 |
