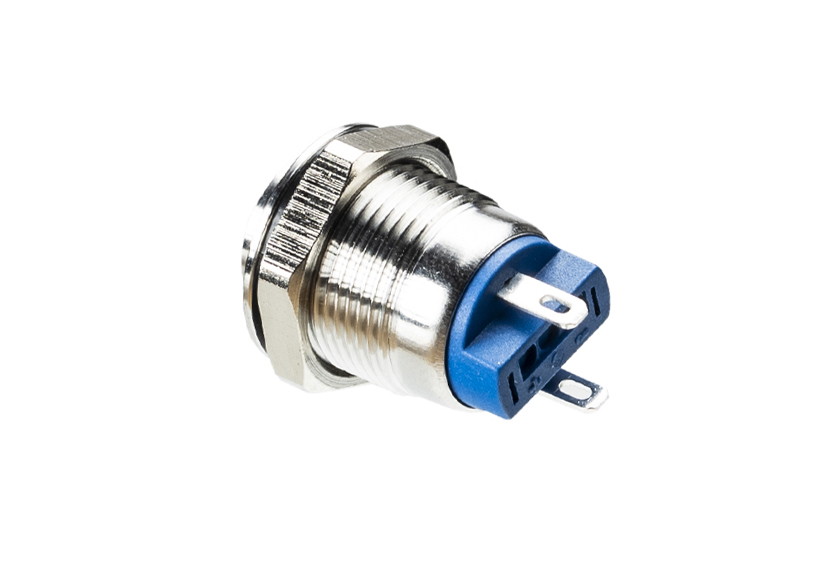

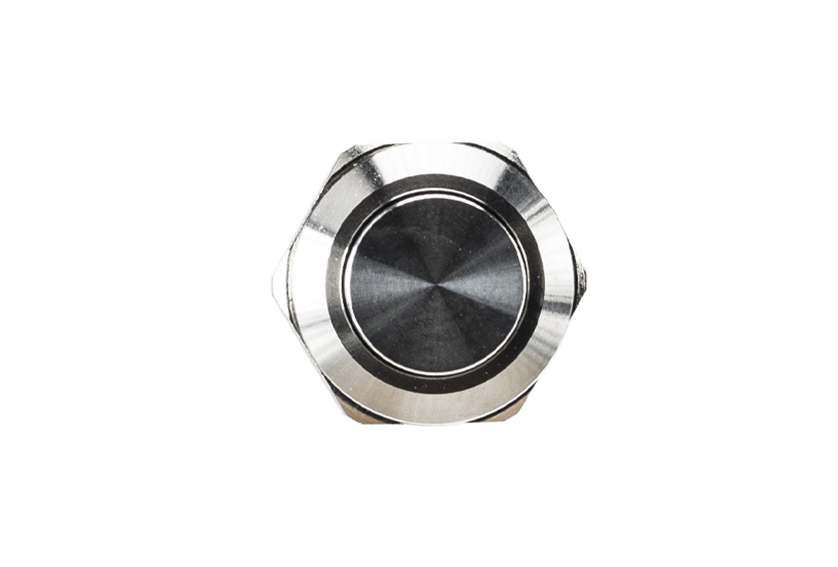

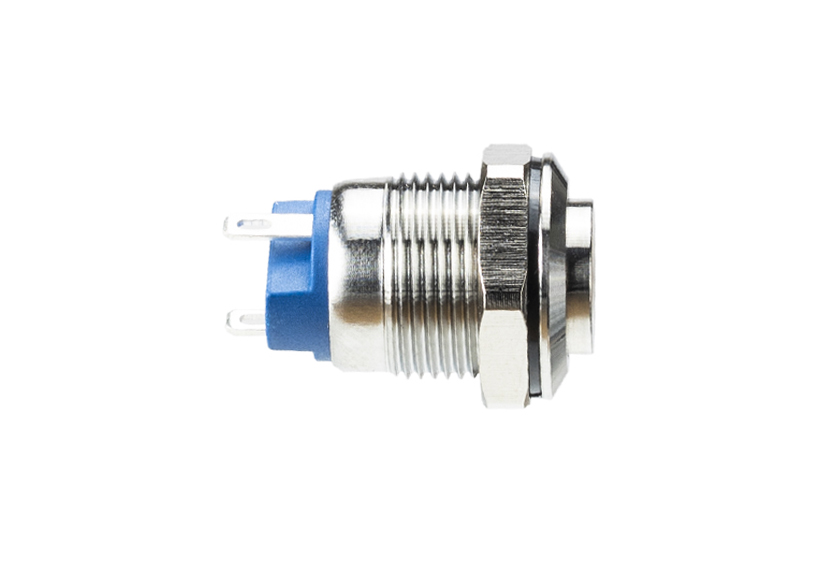

Stainless Steel Vandal Resistant IP67 Push Button Switch MAV0120 Series Prominent Button
€22.65*
Prices excl. VAT plus shipping costs
Article number:MAV0120/3D
Manufacturer number:MAV0120/3D
Brand:Bulgin
Minimum order quantity:5
Product information
Stainless Steel Vandal Resistant Single Contact Momentary Action Push To Make Switches
Downloads
Datasheet (EN)Specifications
| body_material: | SS 304 |
|---|---|
| current_max: | 2A |
| diameter: | 12mm |
| function: | Momentary Action |
| illumination_colour: | N/A |
| ip_rating: | IP67 |
| max_operating_temperature: | +55°C |
| min_operating_temperature: | -25°C |
| switch_profile: | Prominent Button |
| thread_size: | M12 x 0.75 |
| uniek_nr: | blgMAV0120/3D |
| voltage_max: | 36V |
