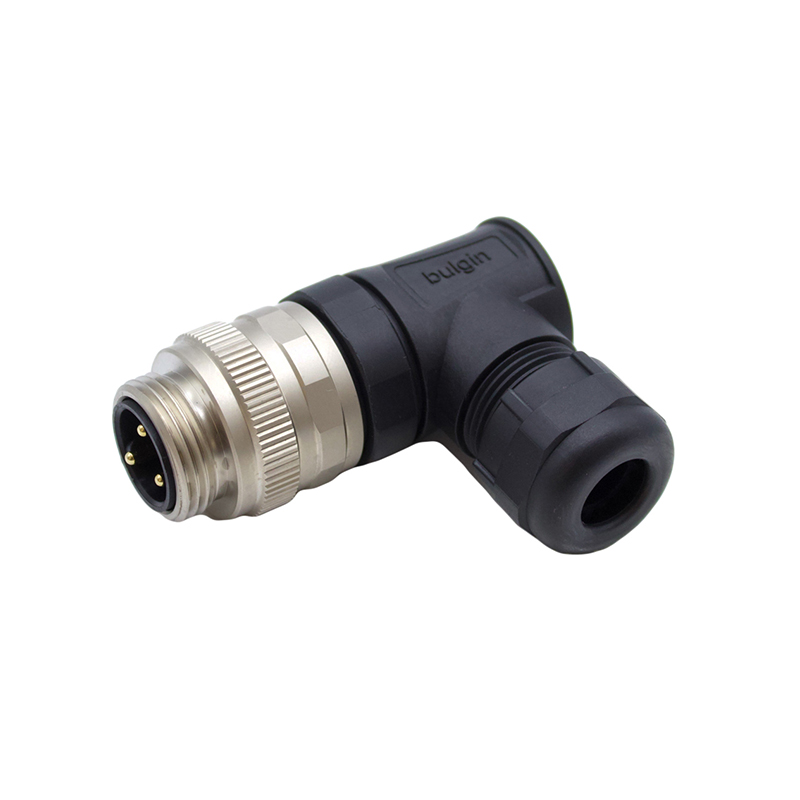

3 Contacts 7/8" Right Angled Male Connector
€69.68*
Prices excl. VAT plus shipping costs
Article number:PXPTPU78RAM03ASTM22
Manufacturer number:PXPTPU78RAM03ASTM22
Brand:Bulgin
Minimum order quantity:2
Datasheet (EN)Specifications
| connection_method: | Screw |
|---|---|
| contact_pin_material: | Brass gold plated 1u" |
| contact_type: | Plug Contact |
| current_max: | 12A |
| durability: | >100 Cycles |
| function: | Right Angled Male Connector |
| insulation_resistance: | >100MOhm |
| ip_rating: | IP67 |
| max_cable_entry_size: | 12mm |
| max_coupling_torque: | 0.8Nm |
| max_operating_temperature: | +85°C |
| min_cable_entry_size: | 6mm |
| min_coupling_torque: | 0.4Nm |
| min_operating_temperature: | -25°C |
| nominal_cross_sectional_area_mm2: | 1.5mm2 |
| number_of_contacts: | 3 Contacts |
| pin_layout_code: | A Code |
| rohs_compliant: | |
| thread_size: | M22 |
| uniek_nr: | blgPXPTPU78RAM03ASTM22 |
| voltage_max: | 300V |
