4 mm test lead to accept high power fuses 200 cm black - XSMS-419 black

Discontinued

Request an alternative product

Prices excl. VAT plus shipping costs

Article number:XSMS-419 black - 200 cm

Manufacturer number:66.9395-20021

Brand:Stäubli

Minimum order quantity:1

Product information

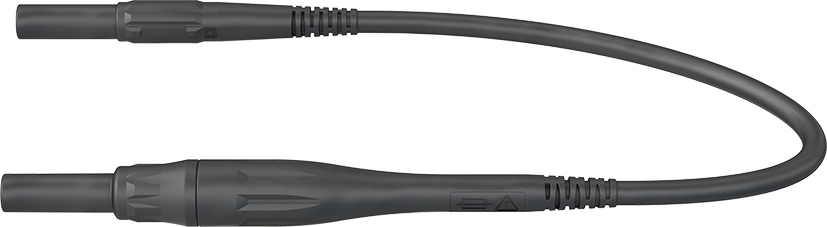

Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.Test lead with integrated high breaking capacity fuses designed for 1000 V, CAT IV in accordance with IEC/EN 61010-031 and allow for the use of Ø 4 mm safety probes and test clips for fuse-protected measurements. The two-part fused connector can be easily unscrewed and accepts a high breaking capacity fuse measuring 6.3 x 32 mm. The fuse is not supplied.

Downloads

Datasheet (EN)

Specifications

Accessory:
Current carrying capacity:	8 A
Insulating material:	Siliconen
Max. working voltage:	1000 V
Measuring circuit category:	CAT IV
Plug in technique:	4 mm veiligheidsstekkertechniek
Set version:
Spare part:
Type of accessory/spare part:	Meetsnoer
With case/bag:
uniek_nr:	tnm66.9395-20021
