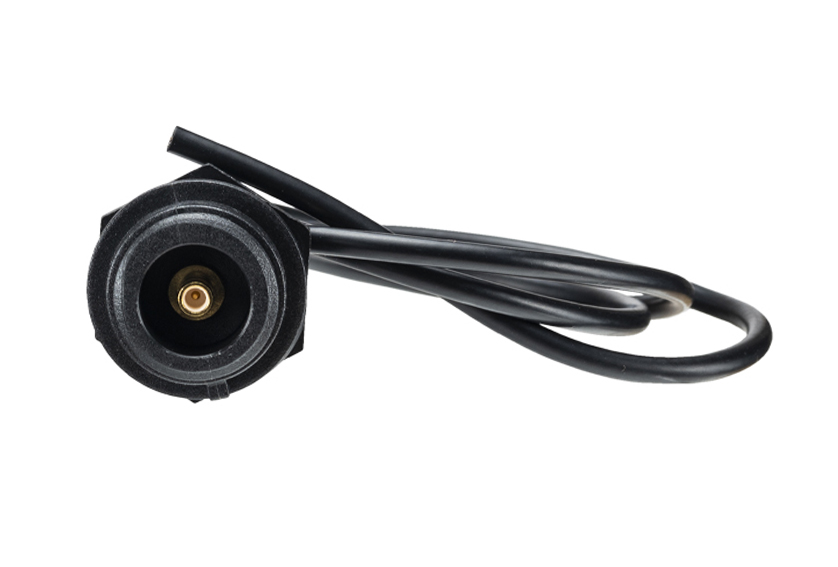

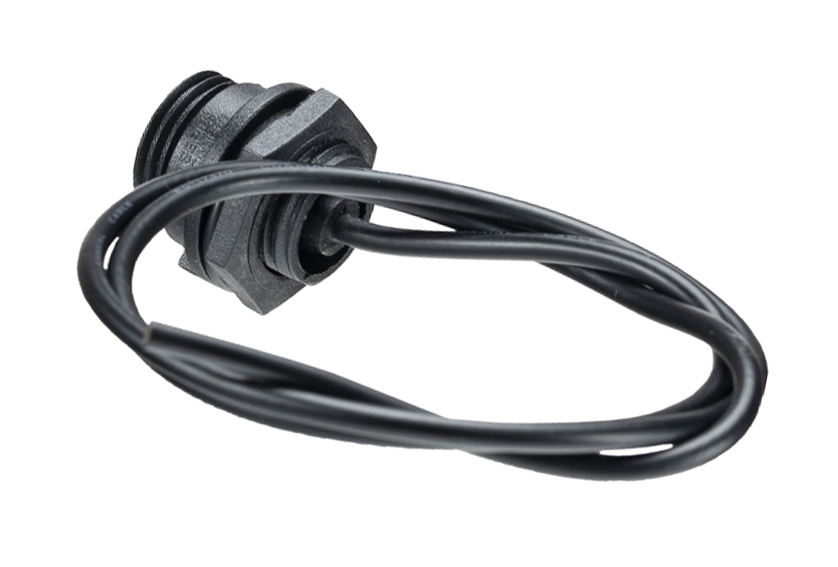

Front Panel Mount SMB Jack Connector 0.5M cable PX0414 Series
€40.85*
Prices excl. VAT plus shipping costs
Article number:PX0414/0M50
Manufacturer number:PX0414/0M50
Brand:Bulgin
Minimum order quantity:3
Datasheet (EN)Specifications
| approvals: | CSA, UL, VDE |
|---|---|
| body_material: | Polyamide (PA) |
| body_material_type: | Plastic Body |
| cable_length: | 0.5m |
| contact_type: | Socket Contact |
| coupling_type: | Screw |
| diameter_over_coupling_ring_mm: | 19.1mm |
| flamability_rating: | UL94V-0 |
| function: | Front Panel Mount Connector |
| ip_rating: | IP68, IP69K |
| max_operating_temperature: | +80°C |
| min_operating_temperature: | -40°C |
| number_of_contacts: | 1 Contact |
| uniek_nr: | blgPX0414/0M50 |
