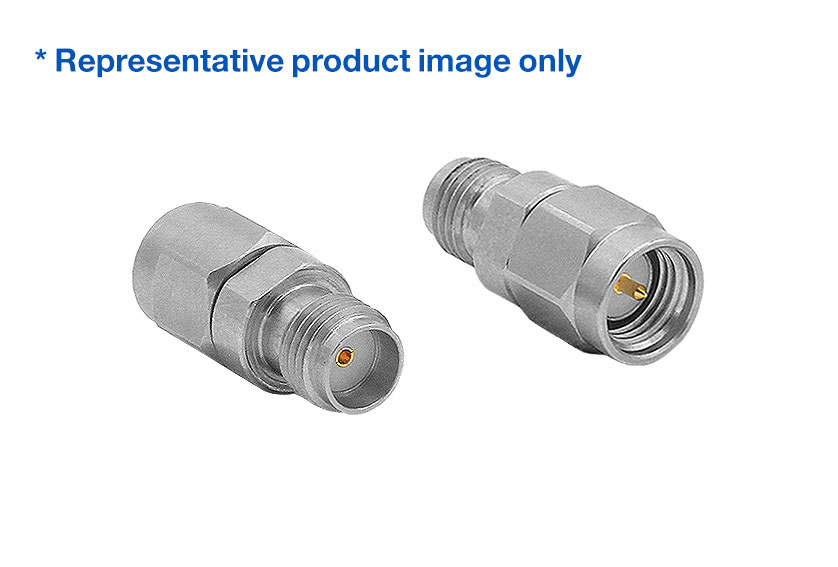

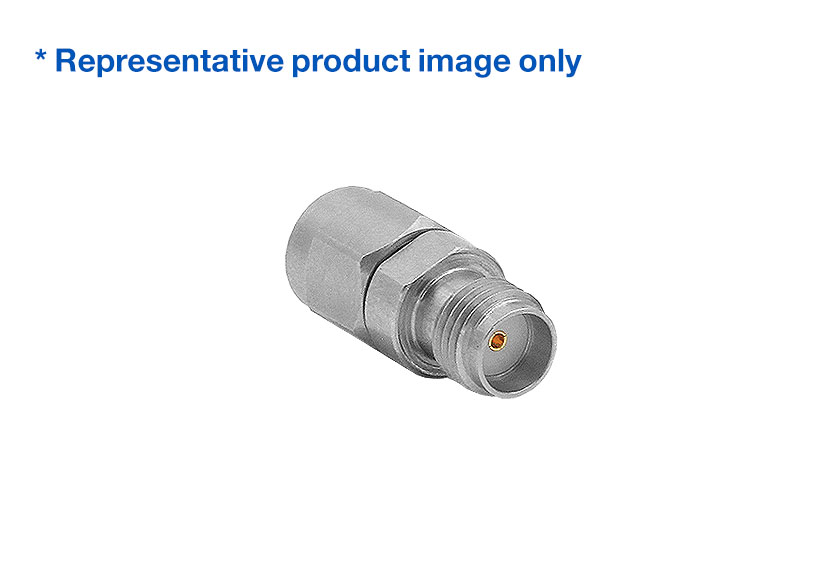

SMA Plug to N Jack RF Adapter
€114.29*
Prices excl. VAT plus shipping costs
Article number:RFAASMAPNP
Manufacturer number:RFAASMAPNP
Brand:Bulgin
Minimum order quantity:25
Datasheet (EN)Specifications
| body_length: | 36.80mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| function: | Male to Female RF Adapter |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | Adapter ASTM D 1710 |
| max_operating_frequency: | 18GHz |
| max_operating_temperature: | +85°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -40°C |
| thread_size: | 5/8 24UNEF 2A |
| uniek_nr: | blgRFAASMAPNP |
| voltage_max: | 335V |
| vswr: | <1.15 |
