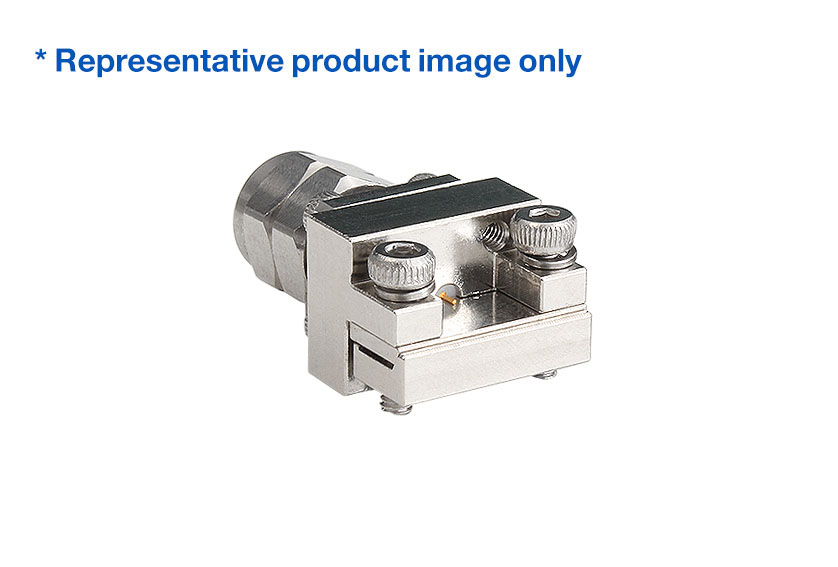

2.92mm Plug Edge Launch PCB RF Connector
€88.63*
Prices excl. VAT plus shipping costs
Article number:
RF292CPB
Manufacturer number:
RF292CPB
Brand:
Bulgin
Minimum order quantity:
25
Datasheet (EN)Specifications
| Operating Temperature (min.): | -40°C |
|---|---|
| PCB Thickness: | 0.87mm |
| Thread Size: | 1/4 36UNS 2A |
| Voltage (max.): | 250V |
| VSWR: | < 1.30 |
| Operating Frequency (min.): | 0GHz |
| Coupling Torque (min.): | 0.80Nm |
| Operating Temperature (max.): | +85°C |
| Body Material: | Brass with Gold Plating |
| Centre Contact Retention Force: | >20N |
| Contact Pin Material: | Beryllium Copper |
| Dielectric Withstanding Voltage: | >750V |
| Durability: | >500 cycles |
| Function: | Female Edge Launch RF Connector |
| Impedance: | 50Ohm |
| Insulation Resistance: | >5000MOhm |
| Insulator: | ULTEM 1000 |
| Coupling Torque (max.): | 1.10Nm |
| Operating Frequency (max.): | 40GHz |
| Unique No.: | blgRF292CPB |
