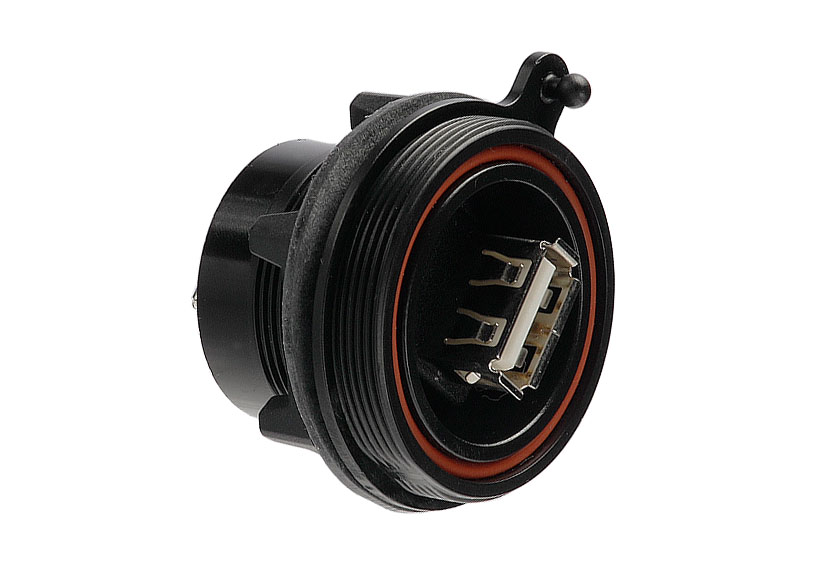

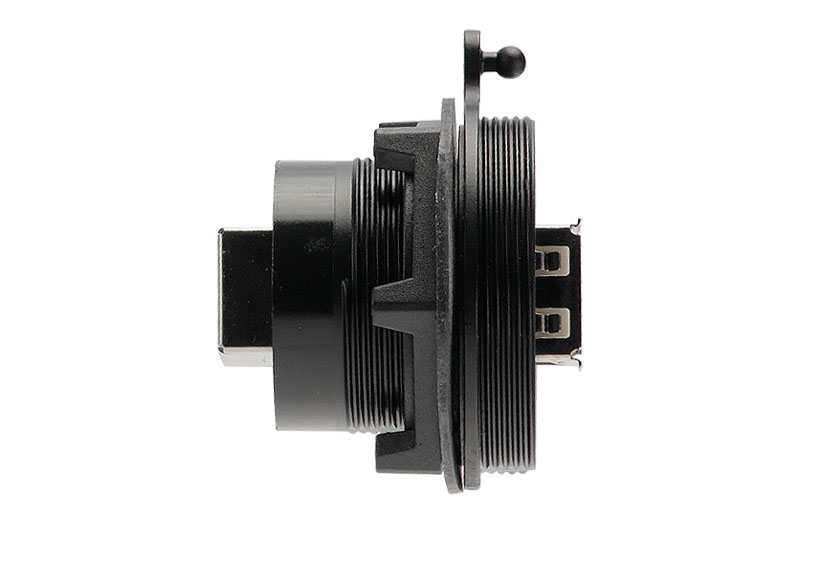

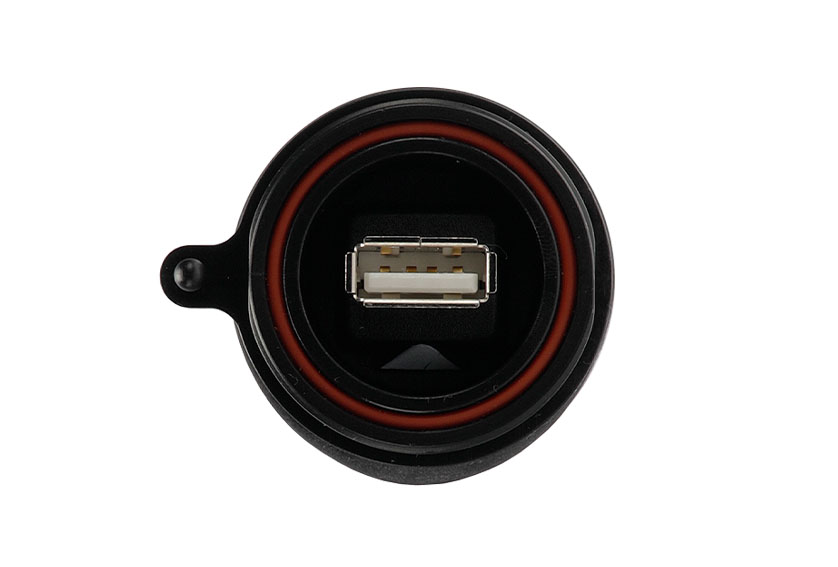

A TYPE USB CHASSIS BUCC
€25.94*
Prices excl. VAT plus shipping costs
Article number:
PX0842/A
Manufacturer number:
PX0842/A
Brand:
Bulgin
Minimum order quantity:
4
Downloads
Datasheet (EN)Specifications
| Operating Temperature (max.): | +70°C |
|---|---|
| Operating Temperature (min.): | 0°C |
| Number of Contacts: | 4 Contacts |
| RoHS Compliant: | |
| IP Rating: | IP68, IP69K |
| Function: | Front Panel Mount Connector |
| Body Colour: | Black |
| Body Material: | Polyester (PE) - Glass Filled |
| Body Material Type: | Plastic Body |
| Contact Type: | Socket Contact |
| Coupling Type: | Screw |
| Current (max.): | 1A |
| Data Cable Type: | USB 2.0 Sealed A Socket to Standard B Socket |
| Diameter Over Coupling Ring (mm): | 38.1mm |
| Flammability Rating: | UL94V-0 |
| Voltage (max.): | 5V |
| Unique No.: | blgPX0842/A |
