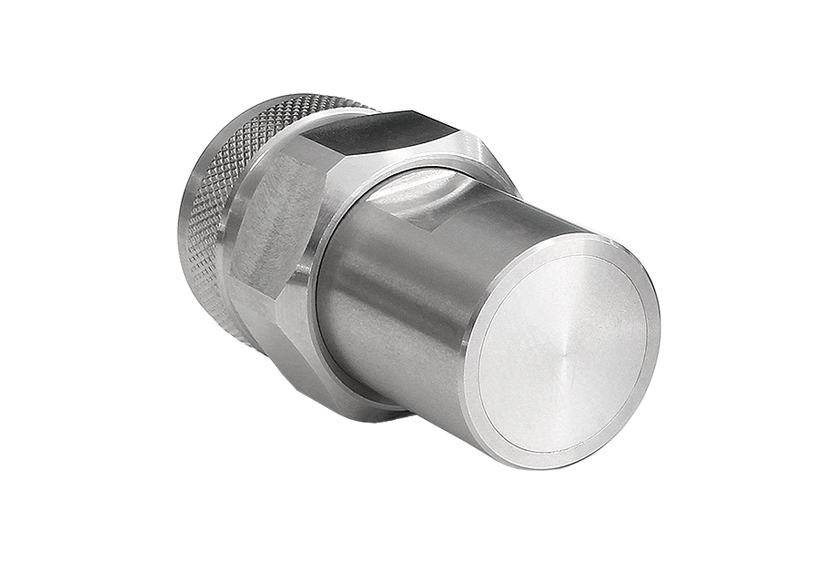

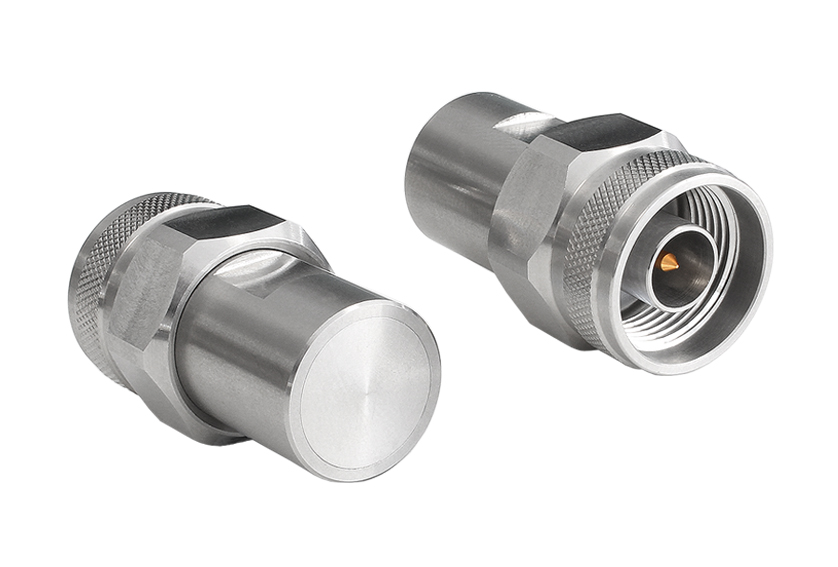

N Type Plug Termination (2W)
€329.75*
Prices excl. VAT plus shipping costs
Article number:RFTERMNP2W
Manufacturer number:RFTERMNP2W
Brand:Bulgin
Minimum order quantity:1
Datasheet (EN)Specifications
| average_power: | <2W |
|---|---|
| body_length: | 34.00mm |
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >1500V |
| durability: | >500 cycles |
| function: | Male RF Termination |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | UNFILLED ULTEM 1000/PEI |
| max_operating_frequency: | 18GHz |
| max_operating_temperature: | +85°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -40°C |
| uniek_nr: | blgRFTERMNP2W |
| voltage_max: | 500V |
| vswr: | <1.15 |
