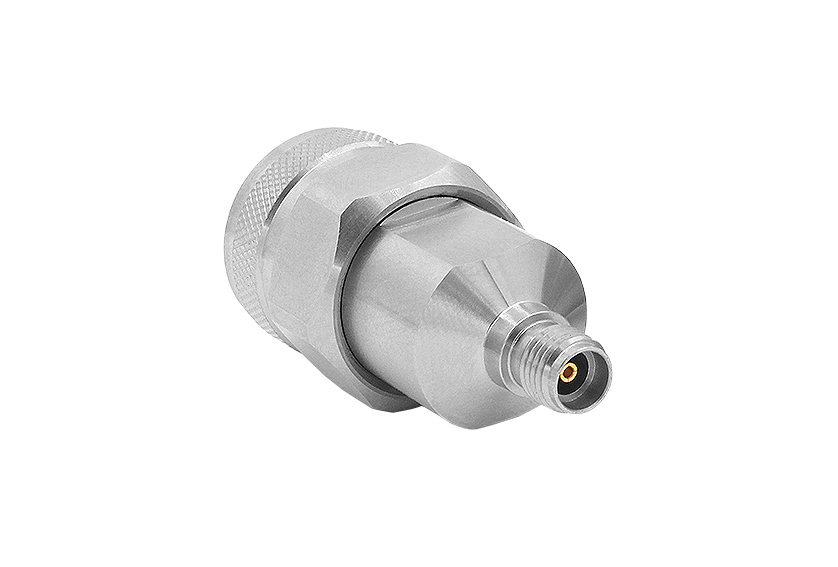

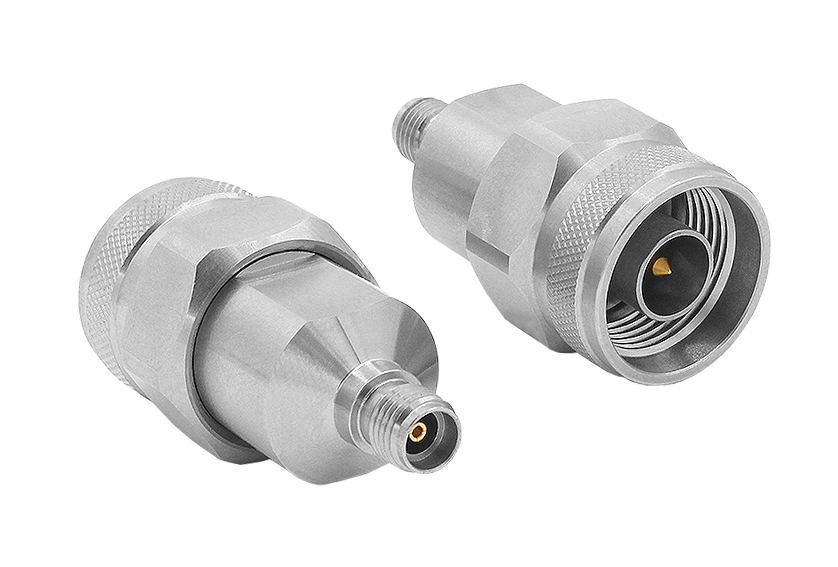

3.5mm Jack to N Plug RF Adapter
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:RFAA350JNP
Manufacturer number:RFAA350JNP
Brand:Bulgin
Minimum order quantity:50
Datasheet (EN)Specifications
| body_length: | 38.30mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| function: | Male to Female RF Adapter |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | UNFILLED ULTEM 1000/PEI |
| max_operating_frequency: | 18GHz |
| max_operating_temperature: | +165°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -65°C |
| thread_size: | 1/4 36UNS 2A |
| uniek_nr: | blgRFAA350JNP |
| voltage_max: | 335V |
| vswr: | <1.15 |
