4 mm stackable plug green - XZGL-425 green
€7.77*
Prices excl. VAT plus shipping costs
Article number:XZGL-425 green
Manufacturer number:66.9328-25
Brand:Stäubli
Minimum order quantity:1
Product information

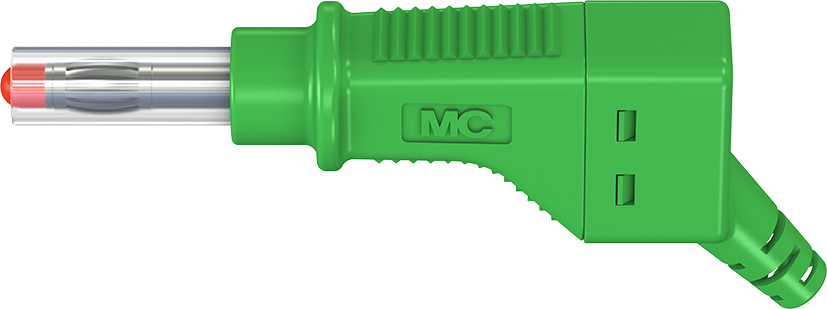

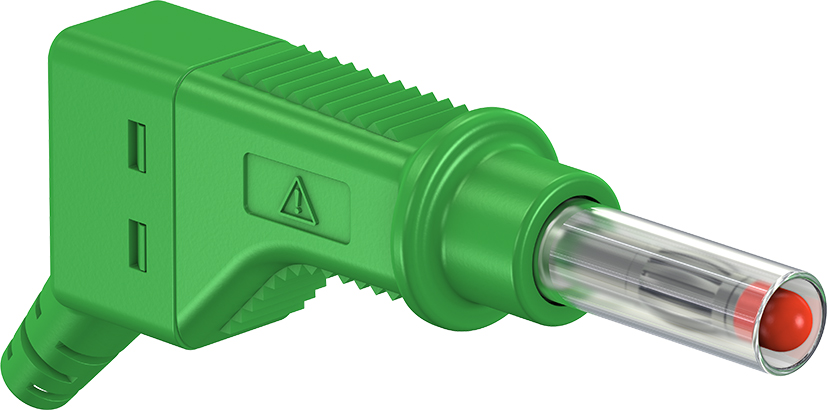

Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With retractable sleeve to prevent accidental touching. As a result of the protective collar, the clearances and creepage distances allow test leads equipped with this plug also to be safely connected to older test instruments not yet fitted with safety sockets up to 600 V, CAT II in accordance with the standards. Screw connection.
Downloads
Datasheet (EN)Specifications
| Accessory: | |
|---|---|
| Current carrying capacity: | 32 A |
| Insulating material: | Overig |
| Max. working voltage: | 600 V |
| Measuring circuit category: | CAT II |
| Plug in technique: | 4 mm veiligheidsstekkertechniek |
| Set version: | |
| Spare part: | |
| Type of accessory/spare part: | Connector |
| With case/bag: | |
| uniek_nr: | tnm66.9328-25 |
