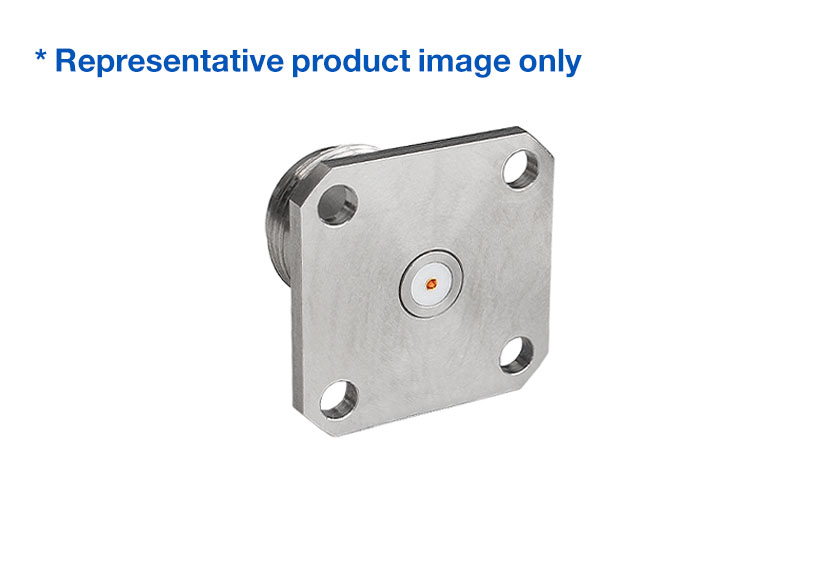

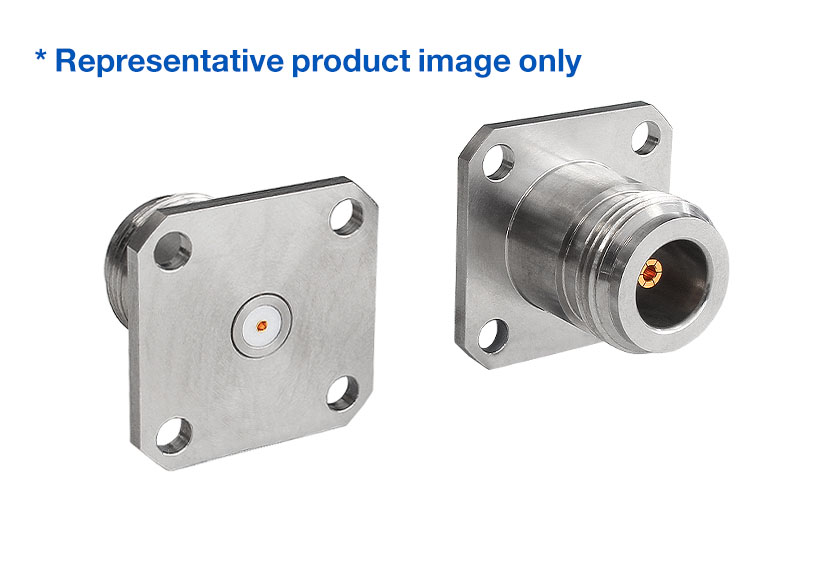

N Jack Straight 4 Hole Flange RF Connector
€61.12*
Prices excl. VAT plus shipping costs
Article number:RFNA4JFHE
Manufacturer number:RFNA4JFHE
Brand:Bulgin
Minimum order quantity:25
Datasheet (EN)Specifications
| body_length: | 19.00mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >1500V |
| durability: | >500 cycles |
| flange_mount_length: | 17.50mm |
| function: | Female Flange Mount RF Connector |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | Adapter ASTM D 1710 & PEI |
| max_coupling_torque: | 1.10Nm |
| max_operating_frequency: | 18GHz |
| max_operating_temperature: | +155°C |
| min_coupling_torque: | 0.80Nm |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -55°C |
| mount_hole_distance: | 12.70mm |
| socket_diameter: | 0.51mm |
| thread_size: | 5/8 24UNEF 2A |
| uniek_nr: | blgRFNA4JFHE |
| voltage_max: | 500V |
| vswr: | <1.30 |
