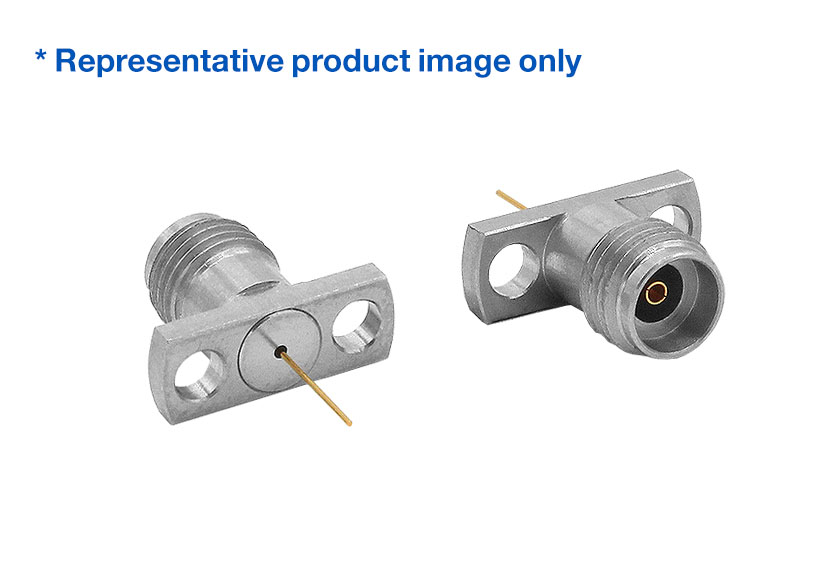

2.92mm Jack Straight 2 Hole Flange RF Connector
€98.45*
Prices excl. VAT plus shipping costs
Article number:
RF292A2JEGAL
Manufacturer number:
RF292A2JEGAL
Brand:
Bulgin
Minimum order quantity:
25
Product information
2.92mm Series Pin without Extended PTFE 2 Hole Flange
Downloads
Datasheet (EN)Specifications
| Operating Temperature (min.): | -40°C |
|---|---|
| Mounting Hole Distance: | 12.20mm |
| Pin Diameter: | 0.30mm |
| Pin Length: | 7.00mm |
| Thread Size: | 1/4 36UNS 2A |
| Voltage (max.): | 250V |
| VSWR: | < 1.25 |
| Operating Frequency (min.): | 0GHz |
| Coupling Torque (min.): | 0.80Nm |
| Operating Temperature (max.): | +85°C |
| Body Length: | 9.50mm |
| Body Material: | Stainless Steel Passivation |
| Centre Contact Retention Force: | >20N |
| Contact Pin Material: | Beryllium Copper |
| Dielectric Withstanding Voltage: | >750V |
| Durability: | >500 cycles |
| Flange Mount Length: | 15.80mm |
| Function: | Female Flange Mount RF Connector |
| Impedance: | 50Ohm |
| Insulation Resistance: | >5000MOhm |
| Insulator: | ULTEM 1000 |
| Coupling Torque (max.): | 1.10Nm |
| Operating Frequency (max.): | 40GHz |
| Unique No.: | blgRF292A2JEGAL |
