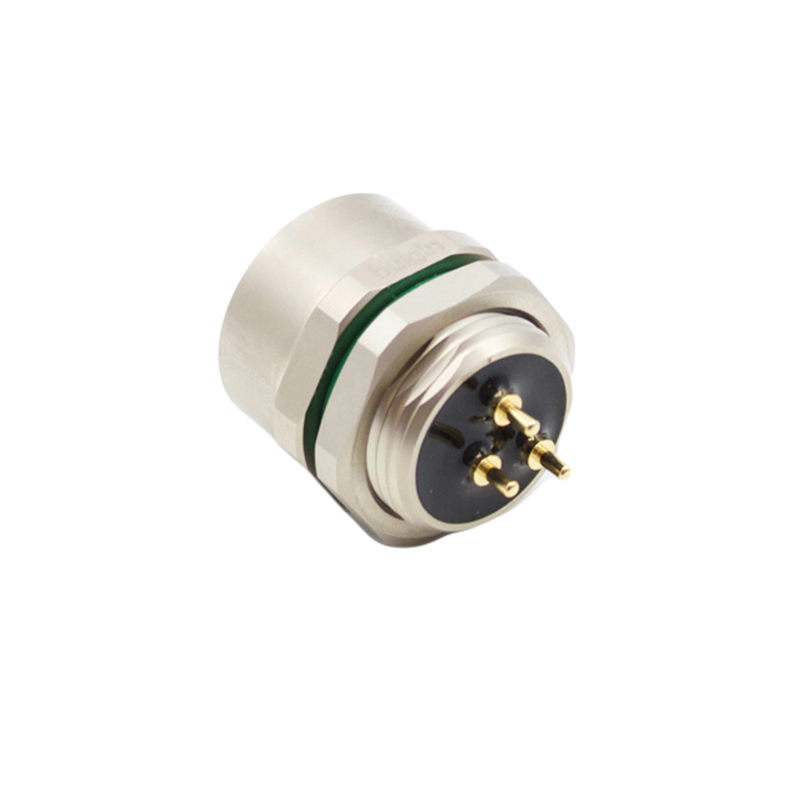

3 Contacts 7/8" Flex Body Female Connector
€60.59*
Prices excl. VAT plus shipping costs
Article number:PXMBNI78FPF03APCPG135
Manufacturer number:PXMBNI78FPF03APCPG135
Brand:Bulgin
Minimum order quantity:2
Datasheet (EN)Specifications
| connection_method: | PCB |
|---|---|
| contact_pin_material: | Phosphor bronze gold plated 1u" |
| contact_type: | Socket Contact |
| current_max: | 12A |
| durability: | >100 Cycles |
| function: | Front Panel Mounting Female Connector |
| insulation_resistance: | >100MOhm |
| ip_rating: | IP67 |
| max_operating_temperature: | +85°C |
| max_panel_thickness: | 4.0mm |
| min_operating_temperature: | -25°C |
| number_of_contacts: | 3 Contacts |
| panel_cut_out: | 20.50mmx19.20mm |
| pcb_thickness: | >2.5mm |
| pin_layout_code: | A Code |
| rohs_compliant: | |
| thread_size: | PG13.5 |
| uniek_nr: | blgPXMBNI78FPF03APCPG135 |
| voltage_max: | 300V |
