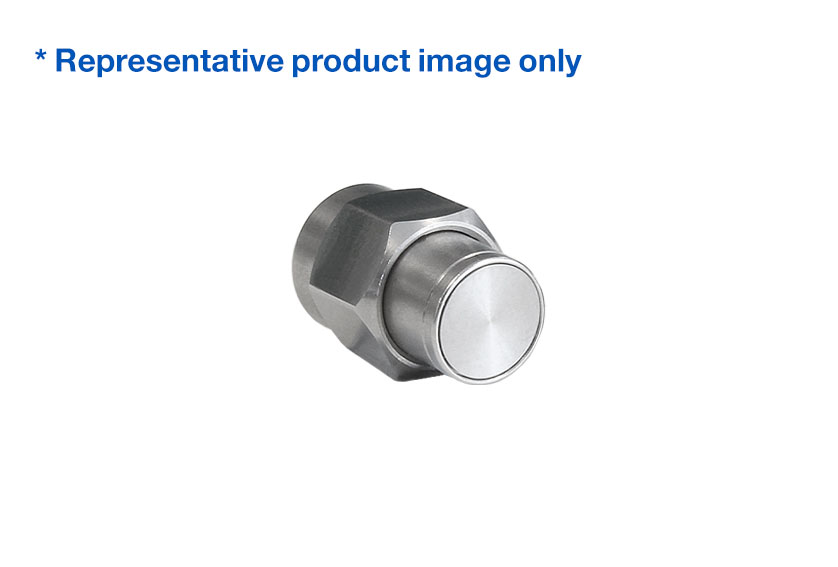

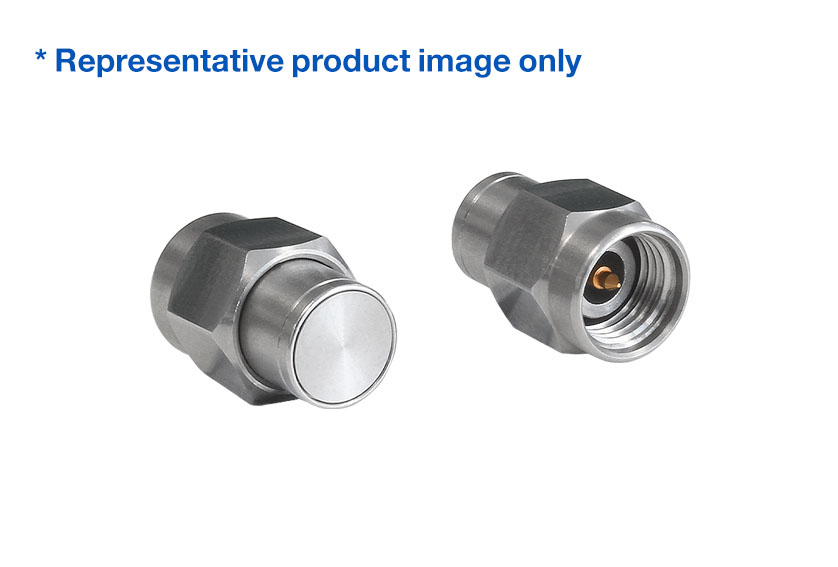

2.92mm Jack Termination (1W)
€395.09*
Article number:RFTERM292J1W
Manufacturer number:RFTERM292J1W
Brand:Bulgin
Minimum order quantity:1
4664965ba7a274dfbd20c33b5d05f253Specificaties
| average_power: | <1W |
|---|---|
| body_length: | 12.20mm |
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| function: | Female RF Termination |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | UNFILLED ULTEM 1000/PEI |
| max_operating_frequency: | 40GHz |
| max_operating_temperature: | +125°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -55°C |
| thread_size: | 1/4 36UNS 2A |
| uniek_nr: | blgRFTERM292J1W |
| voltage_max: | 335V |
| vswr: | <1.25 |
