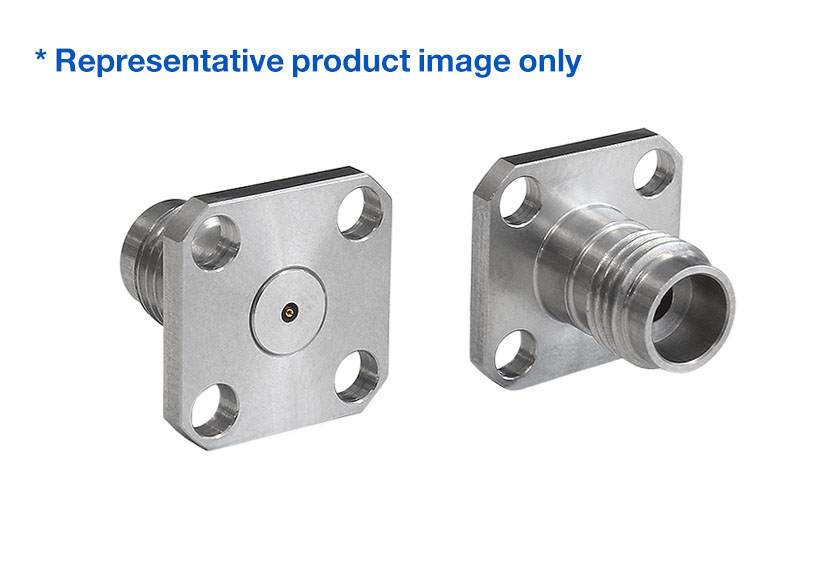

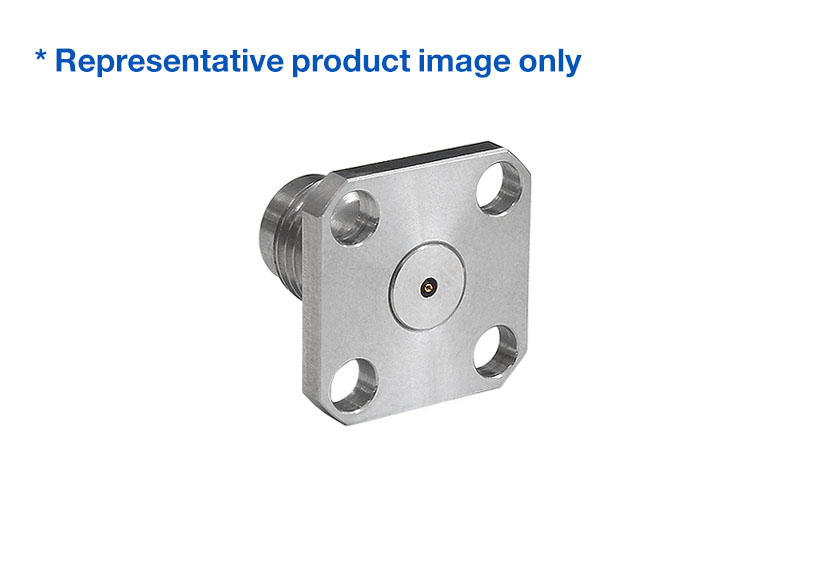

SMA Straight Plug 4 Hole Flange RF Connector
€42.41*
Prices excl. VAT plus shipping costs
Article number:
RFSMAA4PAABFGB
Manufacturer number:
RFSMAA4PAABFGB
Brand:
Bulgin
Minimum order quantity:
13
Product information
SMA Series Pin with Extended PTFE 4 Hole Flange
Downloads
Datasheet (EN)Specifications
| Operating Temperature (min.): | -65°C |
|---|---|
| Mounting Hole Distance: | 6.35mm |
| Pin Diameter: | 0.38mm |
| Pin Length: | 2.00mm |
| PTFE Diameter: | 4.00mm |
| PTFE Length: | 3.00mm |
| Voltage (max.): | 335V |
| VSWR: | < 1.30 |
| Operating Frequency (min.): | 0GHz |
| Coupling Torque (min.): | 0.80Nm |
| Operating Temperature (max.): | +165°C |
| Body Length: | 12.70mm |
| Body Material: | Stainless Steel Passivation |
| Centre Contact Retention Force: | >26.7N |
| Contact Pin Material: | Beryllium Copper |
| Coupling Nut Retention Force: | >27.2Kg |
| Dielectric Withstanding Voltage: | >750V |
| Durability: | >500 cycles |
| Flange Mount Length: | 9.50mm |
| Function: | Male Flange Mount RF Connector |
| Impedance: | 50Ohm |
| Insulation Resistance: | >5000MOhm |
| Insulator: | Adapter ASTM D 1710 |
| Coupling Torque (max.): | 1.10Nm |
| Operating Frequency (max.): | 26.5GHz |
| Unique No.: | blgRFSMAA4PAABFGB |
