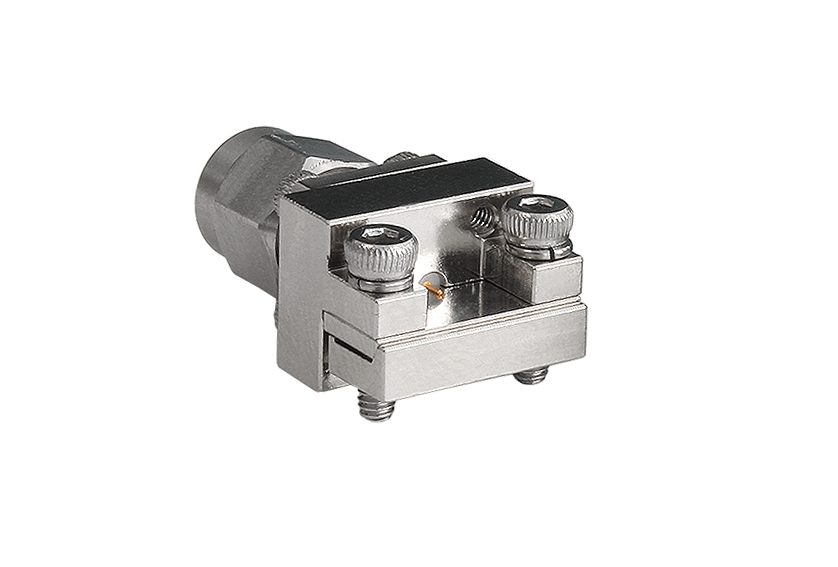

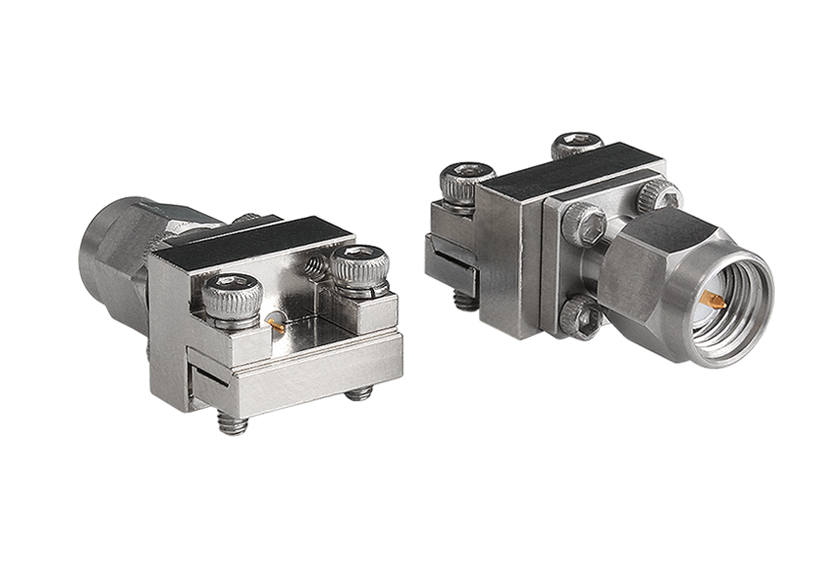

SMA Plug End Launch RF Connector
€116.35*
Article number:RFSMAEP
Manufacturer number:RFSMAEP
Brand:Bulgin
Minimum order quantity:1
206316442fb9a23e1665ccd7a4f151d2Specificaties
| body_length: | 22.12mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| coupling_nut_retention_force: | >27.2Kg |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| function: | Male End Launch RF Connector |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | Adapter ASTM D 1710 |
| max_coupling_torque: | 1.10Nm |
| max_operating_frequency: | 26.5GHz |
| max_operating_temperature: | +155°C |
| min_coupling_torque: | 0.80Nm |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -55°C |
| uniek_nr: | blgRFSMAEP |
| voltage_max: | 335V |
| vswr: | <1.40 |
