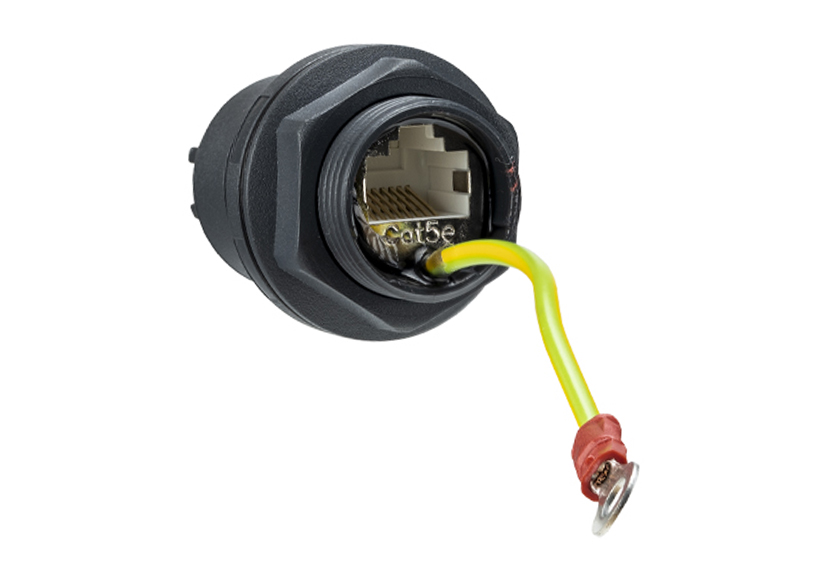

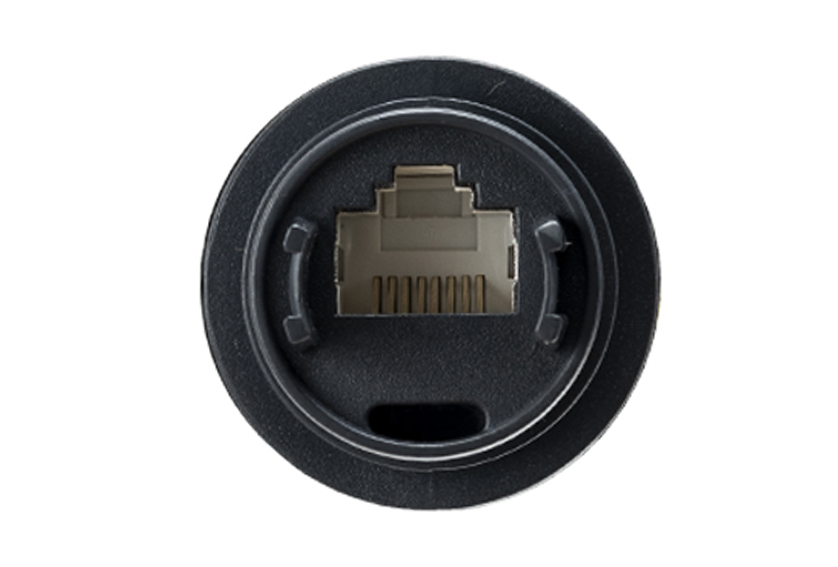

PXP6033 Series CAT5e Coupler Plus Earth Wire Plastic Body
€61.93*
Prices excl. VAT plus shipping costs
Article number:
PXP6033TP/E
Manufacturer number:
PXP6033TP/E
Brand:
Bulgin
Minimum order quantity:
2
Datasheet (EN)Specifications
| Operating Temperature (max.): | +120°C |
|---|---|
| Operating Temperature (min.): | -40°C |
| Number of Contacts: | 8 Contacts |
| IP Rating: | IP66, IP68, IP69K |
| Function: | Front Panel Mount Connector |
| Body Material: | Polycarbonate/Polybutylene Terephthalate (PC/PBT) |
| Body Material Type: | Plastic Body |
| Contact Type: | Socket Contact |
| Coupling Type: | Push-Twist |
| Current (max.): | 1.5A |
| Diameter Over Coupling Ring (mm): | 32mm |
| Ethernet Category: | Cat 5e + Earth |
| Flammability Rating: | UL94V-0 |
| Voltage (max.): | 42V |
| Unique No.: | blgPXP6033TP/E |
