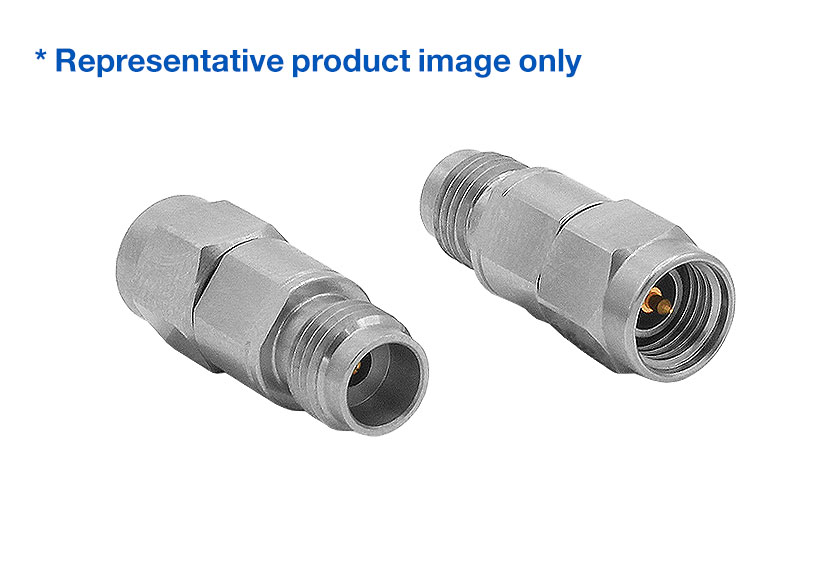

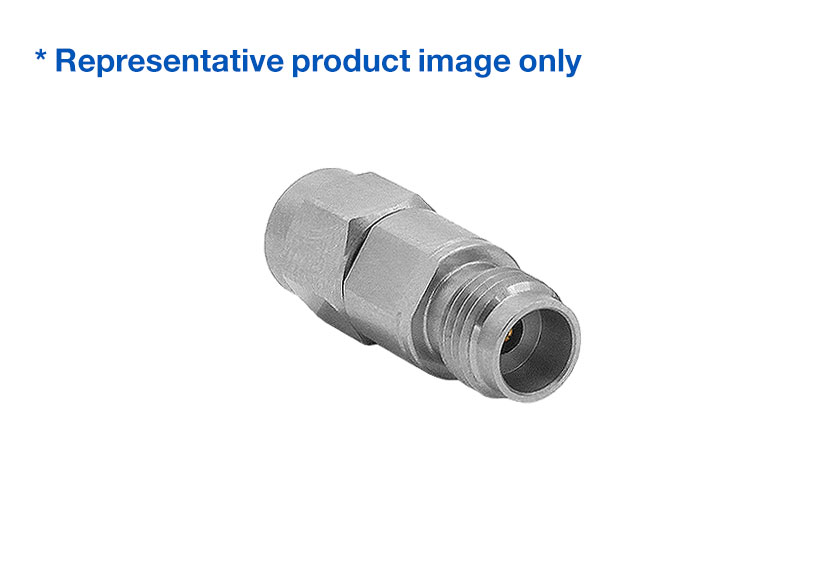

2.4mm Jack to 3.5mm Jack RF Adapter
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:RFAA240J350J
Manufacturer number:RFAA240J350J
Brand:Bulgin
Minimum order quantity:50
Datasheet (EN)Specifications
| body_length: | 20.60mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >20N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| function: | Female to Female RF Adapter |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | ULTEM 1000/PEI |
| max_operating_frequency: | 33GHz |
| max_operating_temperature: | +85°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -40°C |
| thread_size: | M7x0.75 6g & 1/4 36UNS 2A |
| uniek_nr: | blgRFAA240J350J |
| voltage_max: | 250V |
| vswr: | <1.15 |
