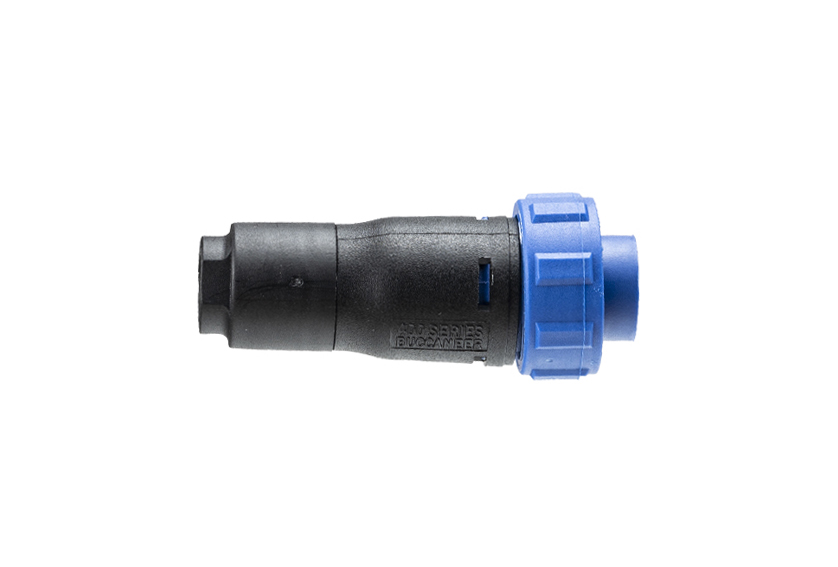

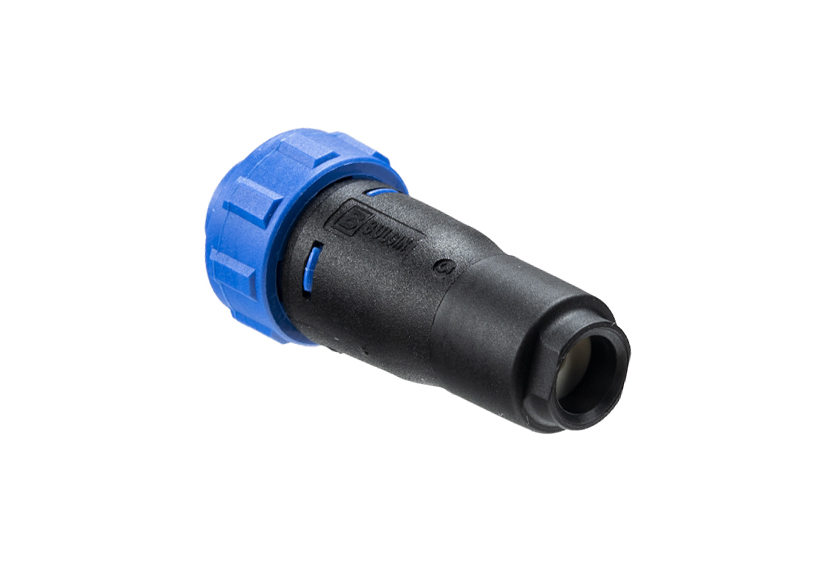

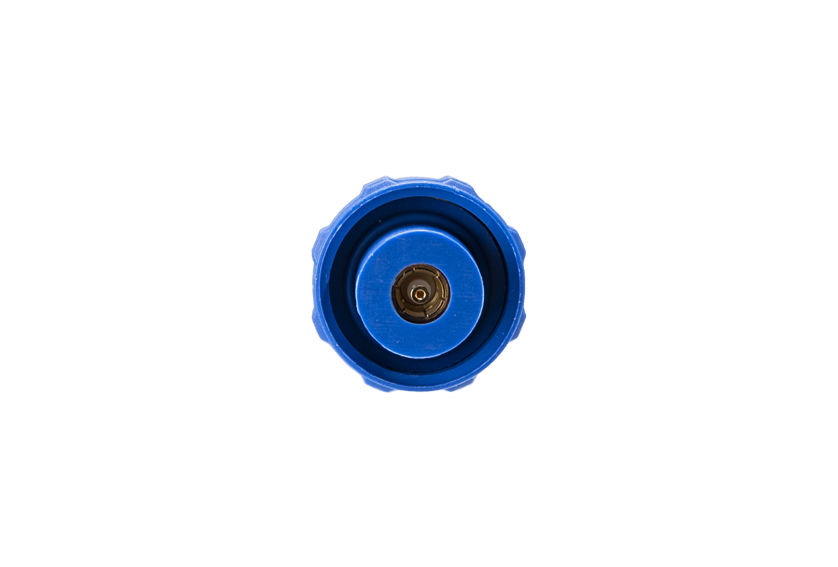

Rewireable Flex SMB Connector For RG-174 Cable
€25.94*
Prices excl. VAT plus shipping costs
Article number:PX0415/1
Manufacturer number:PX0415/1
Brand:Bulgin
Minimum order quantity:4
Datasheet (EN)Specifications
| approvals: | CSA, UL, VDE |
|---|---|
| body_material: | Polyamide (PA) |
| body_material_type: | Plastic Body |
| contact_type: | Plug Contact |
| coupling_type: | Screw |
| diameter_over_coupling_ring_mm: | 19.1mm |
| flamability_rating: | UL94V-0 |
| function: | Flex Cable Connector |
| ip_rating: | IP68, IP69K |
| max_cable_entry_size: | 3mm |
| max_operating_temperature: | +80°C |
| min_cable_entry_size: | 2.5mm |
| min_operating_temperature: | -40°C |
| number_of_contacts: | 1 Contact |
| uniek_nr: | blgPX0415/1 |
