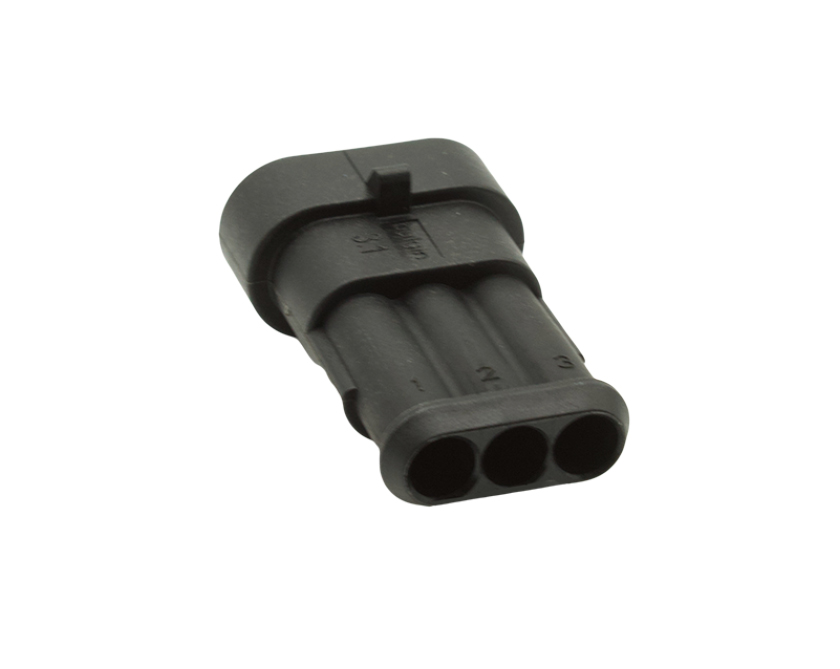

3 Contacts Male Automotive Rectangular Black Connector
€0.89*
Prices excl. VAT plus shipping costs
Article number:PX2000P03BK
Manufacturer number:PX2000P03BK
Brand:Bulgin
Minimum order quantity:250
Datasheet (EN)Specifications
| body_colour: | Black |
|---|---|
| body_material: | Polybutylene Terephthalate (PBT) |
| body_material_type: | Plastic Body |
| contact_type: | Socket Contact |
| coupling_type: | Snap-in |
| current_max: | 14A |
| dielectric_withstanding_voltage: | 1500V |
| durability: | >100 Cycles |
| function: | Straight Male Connector |
| insulation_resistance: | >2000MOhms |
| ip_rating: | IP67 |
| max_operating_temperature: | +125°C |
| min_operating_temperature: | -55°C |
| number_of_contacts: | 3 Contacts |
| rohs_compliant: | |
| uniek_nr: | blgPX2000P03BK |
| voltage_max: | 24V |
