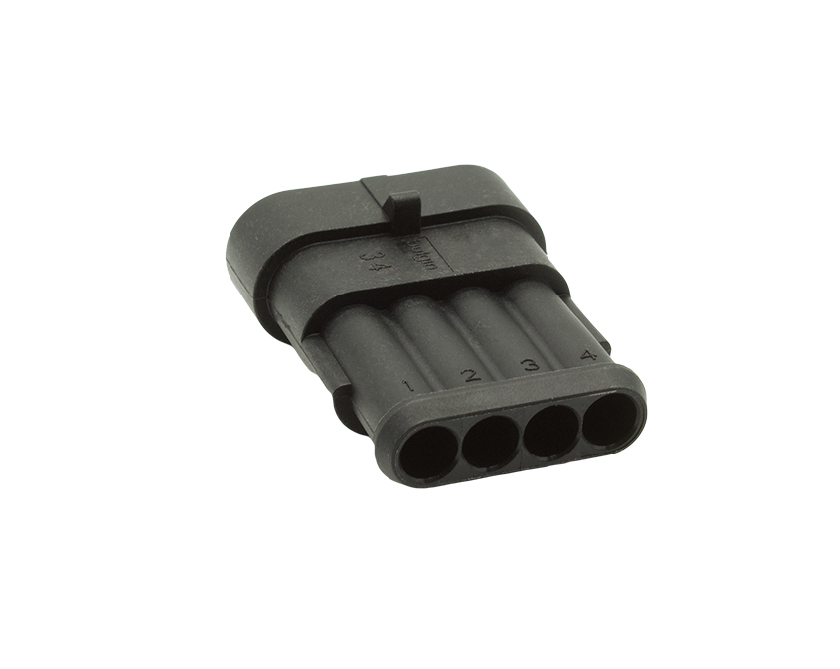

4 Contacts Male Automotive Rectangular Black Connector
€1.01*
Prices excl. VAT plus shipping costs
Article number:
PX2000P04BK
Manufacturer number:
PX2000P04BK
Brand:
Bulgin
Minimum order quantity:
250
Product information
4 Contacts Male Automotive Rectangular Black Connector
Downloads
Datasheet (EN)Specifications
| Body Colour: | Black |
|---|---|
| Operating Temperature (max.): | +125°C |
| Operating Temperature (min.): | -55°C |
| Number of Contacts: | 4 Contacts |
| RoHS Compliant: | |
| IP Rating: | IP67 |
| Insulation Resistance: | >2000MOhms |
| Body Material: | Polybutylene Terephthalate (PBT) |
| Body Material Type: | Plastic Body |
| Contact Type: | Socket Contact |
| Coupling Type: | Snap-in |
| Current (max.): | 14A |
| Dielectric Withstanding Voltage: | 1500V |
| Durability: | >100 Cycles |
| Function: | Straight Male Connector |
| Voltage (max.): | 24V |
| Unique No.: | blgPX2000P04BK |
