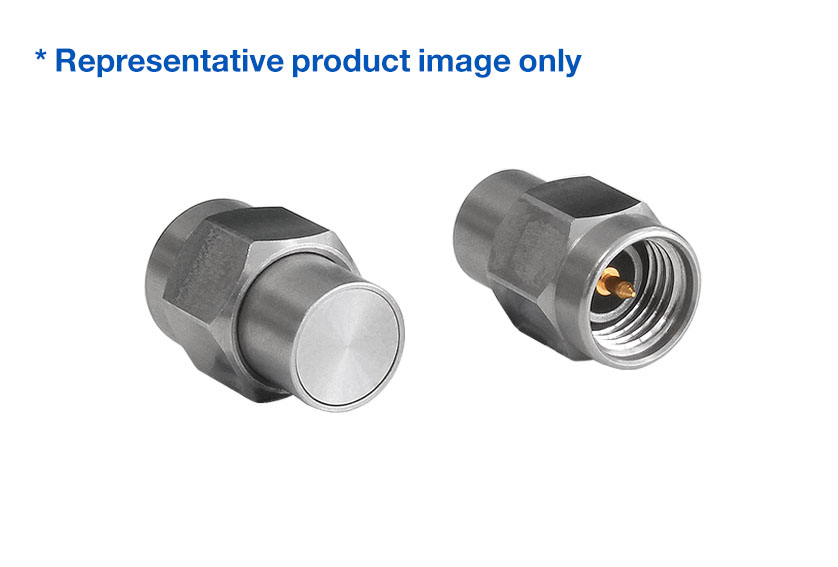

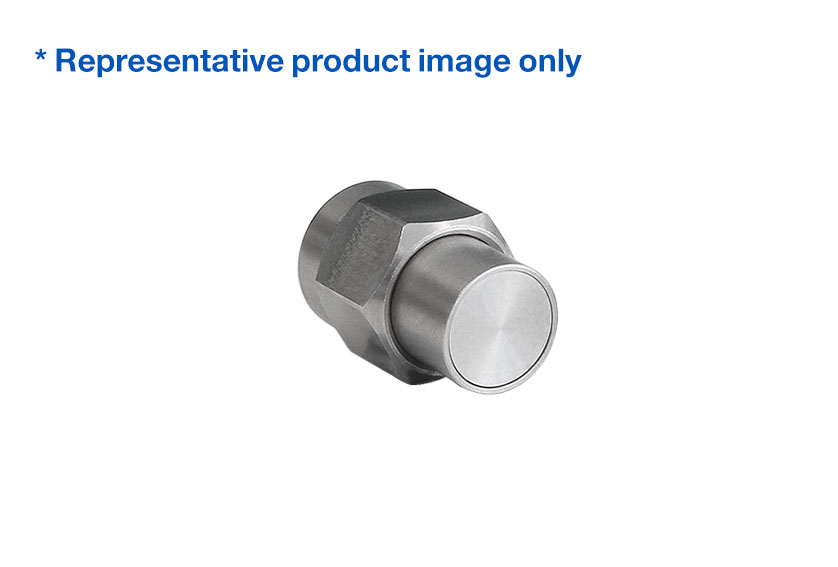

3.5mm Plug Termination (2W)
€171.71*
Article number:RFTERM350P2W
Manufacturer number:RFTERM350P2W
Brand:Bulgin
Minimum order quantity:1
4664965ba7a274dfbd20c33b5d05f253Specificaties
| average_power: | <2W |
|---|---|
| body_length: | 12.80mm |
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| function: | Male RF Termination |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | UNFILLED ULTEM 1000/PEI |
| max_operating_frequency: | 27GHz |
| max_operating_temperature: | +165°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -65°C |
| uniek_nr: | blgRFTERM350P2W |
| voltage_max: | 335V |
| vswr: | <1.20 |
