Fast Ethernet Cat5e Data Double-Ended Cordset
€93.61*
Prices excl. VAT plus shipping costs
Article number:0985 342 122/10 M
Manufacturer number:12054
EAN:04001088048171
Brand:Lumberg Automation
Minimum order quantity:5
Product information

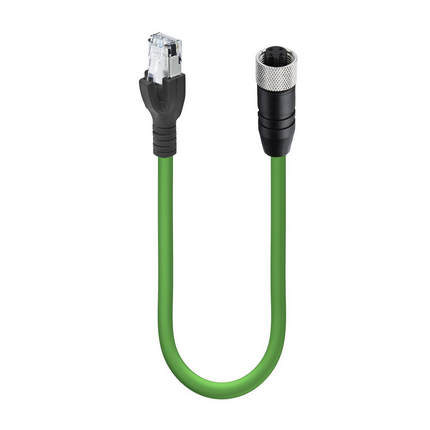

The Fast Ethernet Cat5e Data Double-Ended Cordset is a versatile and reliable data cable designed for seamless connectivity. This cordset features a male straight RJ45-coded black RJ45 connector on one end and a female straight D-coded black M12 Standard connector on the other. It is shielded and built to handle a voltage of 30 V AC / 42 V DC and a current of 1.5 A. The green cable is made from PUR and consists of four wires (2x2x0.34 mm²). With a rated transmission rate of 100 Mbit/s, this cable ensures fast and efficient data transfer.
The main benefits of this cordset include its shielding for enhanced performance in electrically noisy environments and its robust construction for industrial applications. The connectors are designed to provide secure and reliable connections, with mating cycles of ≤ 750 for the RJ45 side and ≤ 100 for the M12 side, ensuring durability and longevity. The cable's resistance to oil, chemicals, and harsh environments makes it suitable for a wide range of applications.
This cable is ideal for use in industrial automation, machine-to-machine communication, and other environments where reliable and fast data transmission is essential. It is designed to meet various standards, including IEC 60603-7 for the RJ45 side and IEC 61076-2-101 for the M12 side, ensuring compatibility with a wide range of devices and systems.
The main benefits of this cordset include its shielding for enhanced performance in electrically noisy environments and its robust construction for industrial applications. The connectors are designed to provide secure and reliable connections, with mating cycles of ≤ 750 for the RJ45 side and ≤ 100 for the M12 side, ensuring durability and longevity. The cable's resistance to oil, chemicals, and harsh environments makes it suitable for a wide range of applications.
This cable is ideal for use in industrial automation, machine-to-machine communication, and other environments where reliable and fast data transmission is essential. It is designed to meet various standards, including IEC 60603-7 for the RJ45 side and IEC 61076-2-101 for the M12 side, ensuring compatibility with a wide range of devices and systems.
Downloads
Datasheet (EN)Specifications
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
|---|---|
| Ambient Temperature (Fixed Installation): | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation): | - 25 °C - + 80 °C |
| Ambient Temperature (Operation)*: | - 25 °C - + 60 °C |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 90 °C |
| Attachment Material, Side 2: | CuZn |
| Attachment Plating, Side 2: | Nickel-plated |
| Attachment Type, Side 2: | Coupling Nut |
| Cable Characteristics: | Exclusion of dangerous materials; Line construction similar PROFInet C-Specification; Line requirements similar: IEC 11801, IEC 61156 (CAT 5), EN 50173, EN 50288-2-2 (100MHz-cable and EIA/TIA 568 B (CAT 5e), Good microbes and hydrolysis resistance; |
| Cable Diameter D: | ø 6.50 ± 0.20 mm |
| Cable Jacket Color: | green matt similarly RAL 6018 |
| Cable Jacket Material: | PUR |
| Cable Length: | 10 m |
| Cable Number: | 342 |
| Coding: | RJ45 |
| Coding, Side 2: | D |
| Conductor Size: | 2x2x0.34 mm² |
| Conductor material: | Cu |
| Connector Design: | Straight |
| Connector Design, Side 2: | Straight |
| Connector Type: | Cordset, double ended |
| Contact Base Material (#1): | Copper Alloy |
| Contact Base Material, Side 2: | CuSn |
| Contact Bearer Color: | Clear |
| Contact Bearer Color, Side 2: | Black |
| Contact Bearer Material (#1): | PC |
| Contact Bearer Material, Side 2: | PBT |
| Contact Plating: | Cu/Au |
| Contact Plating, Side 2: | Cu/Au |
| Contact Resistance: | ≤ 20 mOhm |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Core Colors: | star quad: white & blue, yellow & orange |
| Cycles (Bending): | ˃ 2 M |
| Cycles (Torsion): | ˃ 2 M @ ± 360 °/1 m |
| Data Transmission: | Fast Ethernet Cat5e |
| Data Transmission Rate: | 100 Mbit/s |
| Design Standard: | IEC 60603-7 |
| Design Standard, Side 2: | IEC 61076-2-101 |
| Fastening Torque (Attachment), Side 2: | M 12x1: (50-60) Ncm, hand-tight |
| Flammability Class (Cable Jacket): | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant |
| Flammability Class (Contact Bearer): | UL 94 V-0 |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Foil shield: | Al-PT Foil |
| Halogenfree: | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
| Insulated Wire Diameter: | ø 1.58 ± 0.05 mm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Insulation Resistance Cable: | ˃ 5000 MΩxkm |
| Item Description: | 0985 342 122/10 M |
| Long Description (#1): | Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45-coded black RJ45 to female straight D-coded black M12 Standard, shielded, 30 V AC / 42 V DC, 1.5 A; PUR green cable, 4-wires, 2x2x0.34 mm² |
| Mating Cycles: | ≤ 750 |
| Mating Cycles, Side 2: | ≤ 100 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Molded Body Color: | Black |
| Molded Body Color, Side 2: | Black |
| Molded Body Material: | PVC |
| Molded Body Material, Side 2: | TPU |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | Notice derating |
| Number of Pins: | 4 |
| Number of Pins, Side 2: | 4 |
| Number of Wires: | 4 |
| Oil Resistance: | EN 60811 Part 2-1 |
| Operating Voltage: | 30 V AC / 42 V DC |
| Overall Shield (Cable): | Cu-ETP1 tinned |
| Overvoltage Category: | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 12054 |
| Pin Color 01@Side 1: | yellow |
| Pin Color 01@Side 2: | yellow |
| Pin Color 02@Side 1: | orange |
| Pin Color 02@Side 2: | white |
| Pin Color 03@Side 1: | white |
| Pin Color 03@Side 2: | orange |
| Pin Color 04@Side 1: | blue |
| Pin Color 04@Side 2: | blue |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Data Connectors |
| Product Sub Family: | RJ45 |
| Product Sub Family, Side 2: | M12 Standard |
| Protection Degree / IP Rating**: | IP20 |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67, IP69K |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Current*: | 1.5 A |
| Rated Impulse Voltage: | 1 kV |
| Rated Voltage: | 60 V |
| RoHS Compliant: | yes |
| Shielding: | Shielded |
| Shielding Material: | Copper, nickel-plated |
| Shielding Material, Side 2: | CuZn, tin-plated |
| Type of Contact / Gender: | Male |
| Type of Contact / Gender, Side 2: | Female |
| UL Cable Type: | AWM: 20549 |
| Wire Insulation Material: | PP |
| uniek_nr: | aut12054 |
