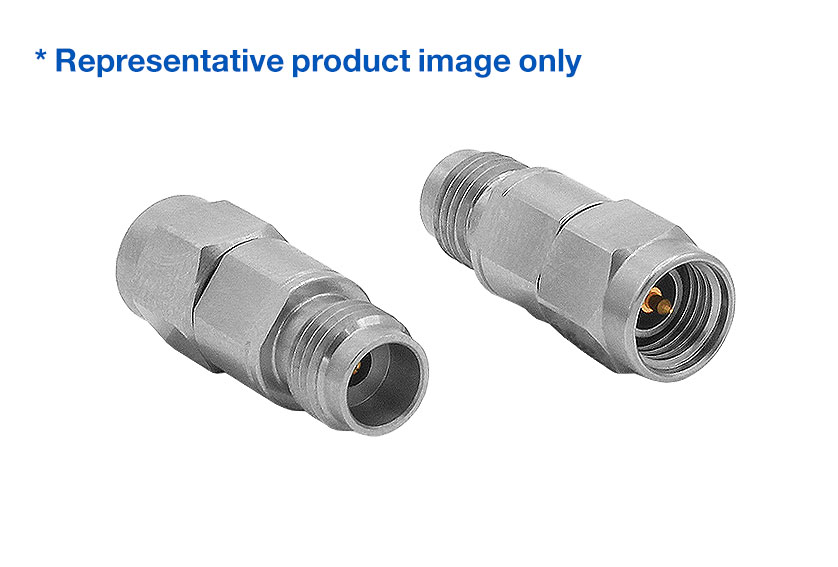

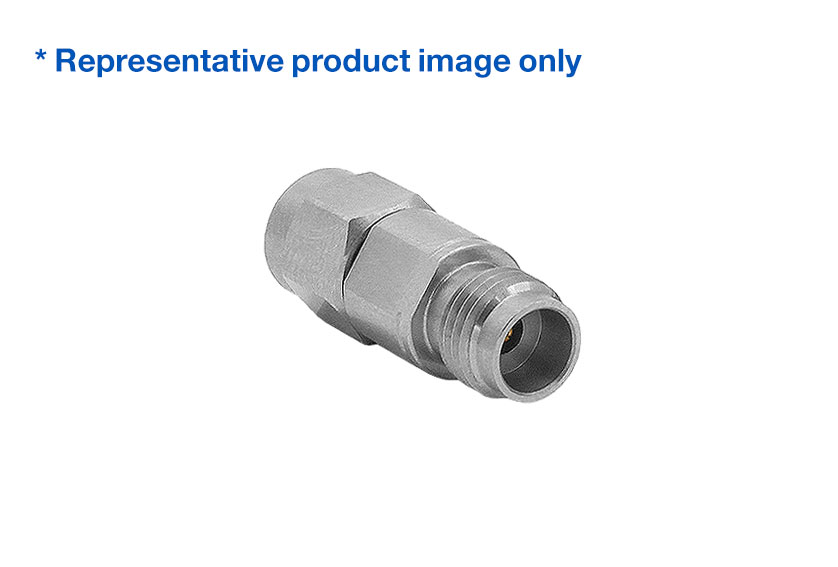

2.4mm Plug to 2.92mm Plug RF Adapter
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:RFAA240P292P
Manufacturer number:RFAA240P292P
Brand:Bulgin
Minimum order quantity:50
Datasheet (EN)Specifications
| body_length: | 20.50mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >20N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| function: | Male to Male RF Adapter |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | ULTEM 1000/PEI |
| max_operating_frequency: | 40GHz |
| max_operating_temperature: | +85°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -40°C |
| uniek_nr: | blgRFAA240P292P |
| voltage_max: | 250V |
| vswr: | <1.20 |
