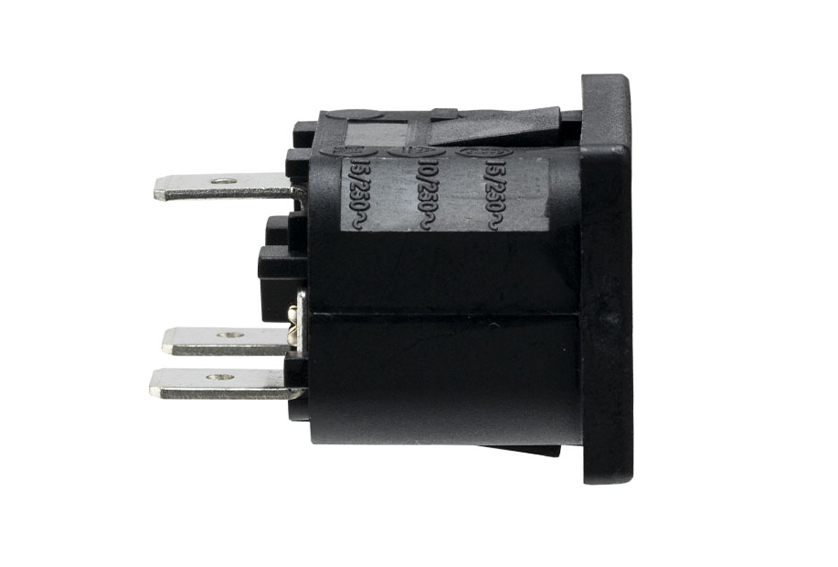

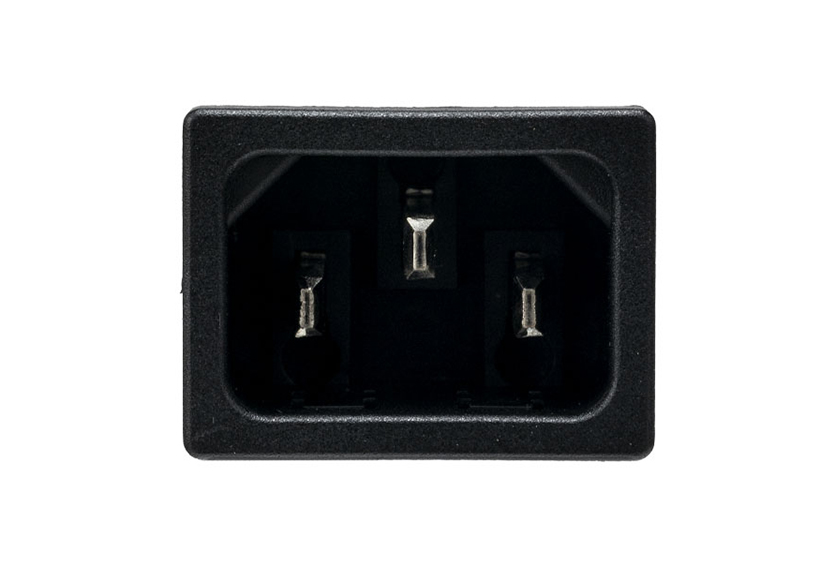

3 POLE PLUG IEC 320
€1.88*
Prices excl. VAT plus shipping costs
Article number:PX0575/10/63
Manufacturer number:PX0575/10/63
Brand:Bulgin
Minimum order quantity:55
Downloads
Datasheet (EN)Specifications
| approvals: | CSA, ENEC, UL, VDE, CCC |
|---|---|
| body_material: | Nylon 66 |
| current_max: | 10A, 15A |
| flamability_rating: | UL94V-0 |
| function: | Panel Mount Connector |
| iec_connector_colour: | Black |
| iec_connector_mates_with: | PX0587,PX0587/SE,PX0588 |
| iec_en60620_type: | EN60 320-1 Standard Sheet C14 Class I |
| max_operating_temperature: | +70°C |
| max_panel_thickness: | 1mm |
| min_operating_temperature: | -40°C |
| min_panel_thickness: | 1mm |
| number_of_contacts: | 3 Contacts |
| uniek_nr: | blgPX0575/10/63 |
| voltage_max: | 250V |
