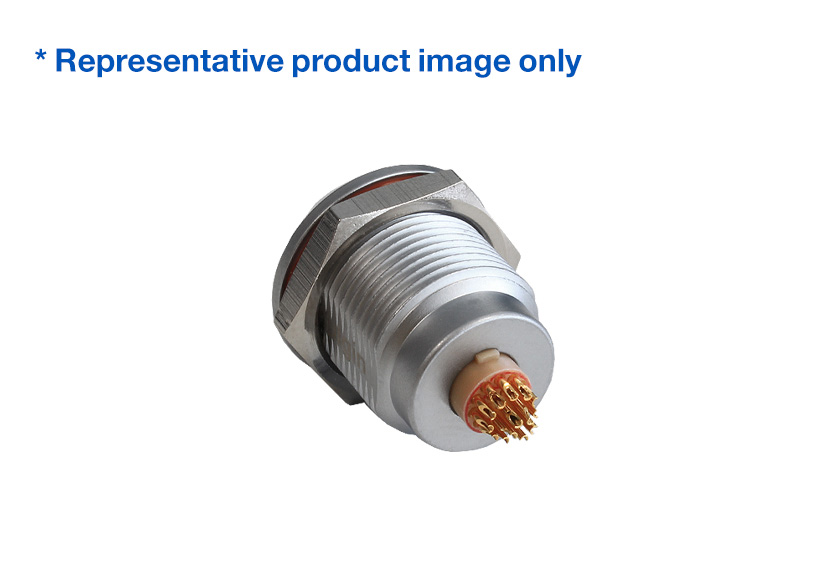

14 Contacts Fixed Socket 1Y Series Push Pull Connector
€81.85*
Prices excl. VAT plus shipping costs
Article number:PPCEGG1K14CLL
Manufacturer number:PPCEGG1K14CLL
Brand:Bulgin
Minimum order quantity:7
Datasheet (EN)Specifications
| contact_pin_material: | Phosphor bronze gold plated 3u" |
|---|---|
| coupling_nut_retention_force: | 7Nm |
| current_max: | 2A |
| diameter_over_coupling_ring_mm: | 19.9mm |
| durability: | >4500 cycles |
| fixing_nut_material: | Nickel Plated brass |
| function: | Fixed Socket Push Pull Connector |
| insulator: | PPS |
| ip_rating: | IP66 |
| max_contact_accomodation_awg: | 28AWG |
| max_contact_accomodation_mm2: | 0.08mm2 |
| max_operating_temperature: | +200°C |
| max_panel_thickness: | 9.5mm |
| min_operating_temperature: | -50°C |
| number_of_contacts: | 14 Contacts |
| operating_humidity: | 0.95 |
| panel_cut_out: | 16.10mmx14.60mm |
| pin_pin_terminal_voltage: | 800V |
| pin_shell_terminal_voltage: | 1200V |
| push_pull_connector_series: | 1Y Series |
| rohs_compliant: | |
| salt_spray_corrosion_test: | 48h |
| shielding_efficiency_max: | 80dB |
| shielding_efficiency_min: | 95dB |
| shock_resistance: | 100g |
| terminal_diameter: | 0.5mm |
| thread_size: | M16x1.0mm |
| uniek_nr: | blgPPCEGG1K14CLL |
| vibration_resistance_max: | 2000Hz |
| vibration_resistance_min: | 10Hz |
