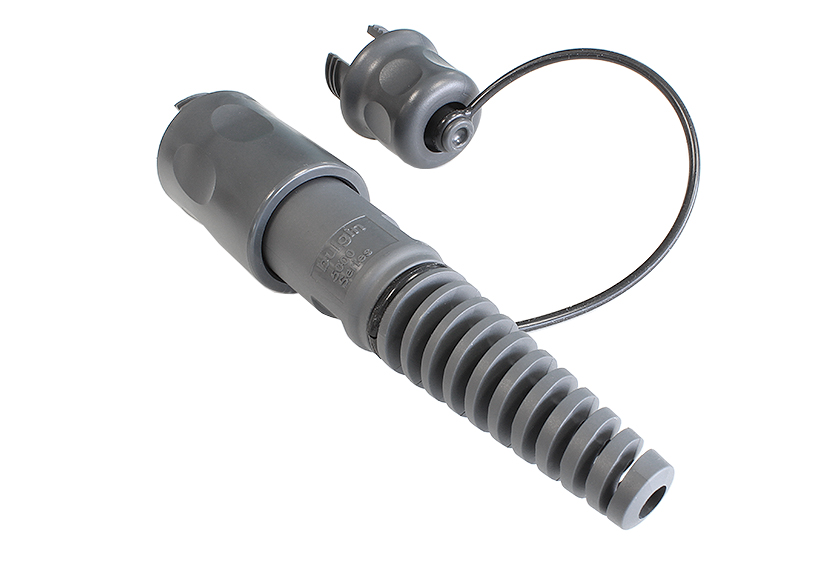

2 Channel Plug Connector
€706.03*
Prices excl. VAT plus shipping costs
Article number:
PXEB5200MM4550
Manufacturer number:
PXEB5200MM4550
Brand:
Bulgin
Minimum order quantity:
2
Datasheet (EN)Specifications
| Avg. Insertion Loss: | < 1.5dB |
|---|---|
| IP Rating: | IP68 |
| Material Finish: | Matt |
| Cable Entry Size (max.): | 5mm |
| Insertion Loss (max.): | < 2dB |
| Operating Temperature (max.): | +80°C |
| Cable Entry Size (min.): | 4.5mm |
| Operating Temperature (min.): | -50°C |
| Function: | EB Plug Connector |
| Flammability Rating: | UL94V-0 |
| Body Colour: | Dark Grey |
| Body Material: | Polycarbonate/Polybutylene Terephthalate (PC/PBT) |
| Body Material Type: | Plastic Body |
| Contact Type: | Expanded Beam |
| Coupling Type: | Screw |
| Diameter Over Coupling Ring (mm): | 30mm |
| Fibre Mode: | MM |
| RoHS Compliant: | |
| Unique No.: | blgPXEB5200MM4550 |
