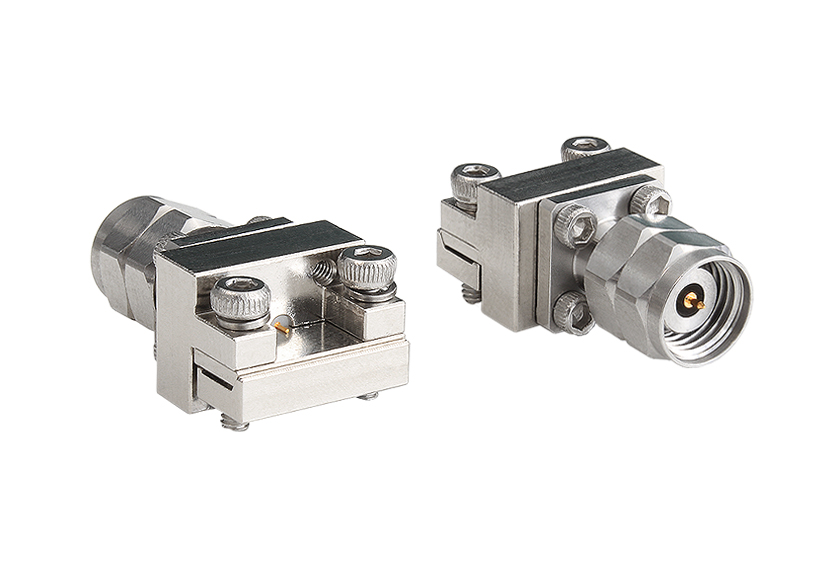

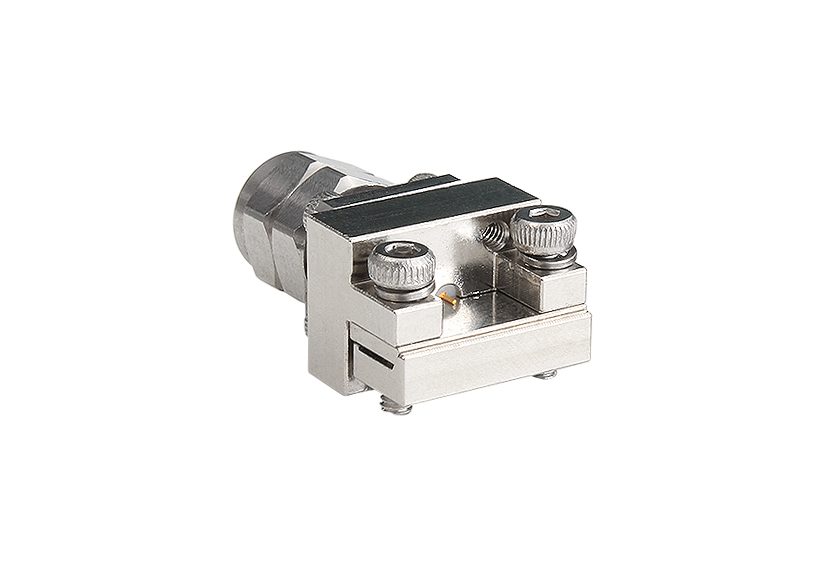

2.4mm Plug End Launch RF Connector
€210.77*
Prices excl. VAT plus shipping costs
Article number:RF240EP
Manufacturer number:RF240EP
Brand:Bulgin
Minimum order quantity:1
Datasheet (EN)Specifications
| body_length: | 22.02mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| coupling_nut_retention_force: | >27.2Kg |
| dielectric_withstanding_voltage: | >500V |
| durability: | >500 cycles |
| function: | Male End Launch RF Connector |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | (UNFILLED ULTEM 1000/PEI) / (Adapter ASTM D 1710) |
| max_coupling_torque: | 1.10Nm |
| max_operating_frequency: | 50GHz |
| max_operating_temperature: | +125°C |
| min_coupling_torque: | 0.80Nm |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -55°C |
| uniek_nr: | blgRF240EP |
| voltage_max: | 150V |
| vswr: | <1.60 |
