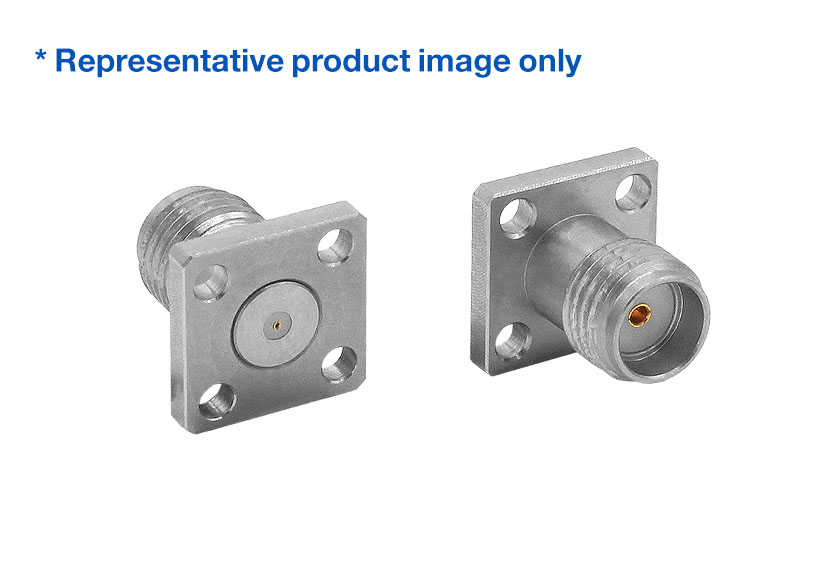

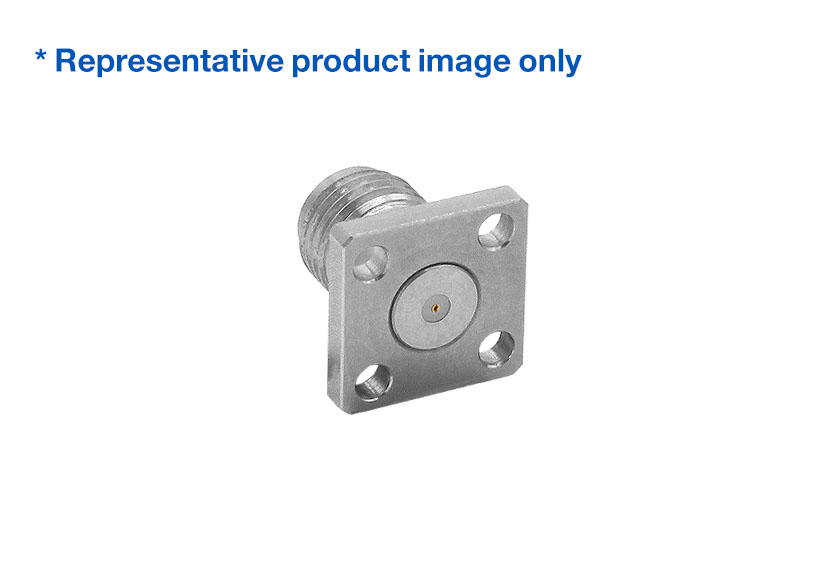

SMA Straight Jack 4 Hole Flange RF Connector
€33.92*
Prices excl. VAT plus shipping costs
Article number:RFSMAA4JAAB
Manufacturer number:RFSMAA4JAAB
Brand:Bulgin
Minimum order quantity:13
Datasheet (EN)Specifications
| body_length: | 9.40mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| coupling_nut_retention_force: | >27.2Kg |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| flange_mount_length: | 9.50mm |
| function: | Female Flange Mount RF Connector |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | Adapter ASTM D 1710 |
| max_coupling_torque: | 1.10Nm |
| max_operating_frequency: | 26.5GHz |
| max_operating_temperature: | +165°C |
| min_coupling_torque: | 0.80Nm |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -65°C |
| mount_hole_distance: | 6.35mm |
| socket_diameter: | 0.30mm |
| socket_outer_diameter: | 1.94mm |
| thread_size: | 1/4 36UNS 2A |
| uniek_nr: | blgRFSMAA4JAAB |
| voltage_max: | 335V |
| vswr: | <1.30 |
