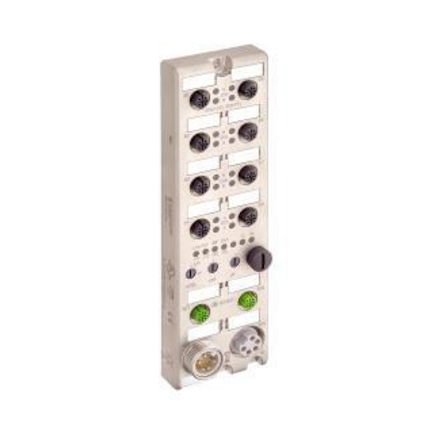

LioN-M, I/O Standalone
€871.92*
Prices excl. VAT plus shipping costs
Article number:
0980 ESL 312-111
Manufacturer number:
934880002
EAN:
04001088076754
Brand:
Belden
Minimum order quantity:
1
Product information
The LioN-M I/O standalone module is an advanced solution for industrial automation, offering EtherNet/IP support and housed in a durable metal casing measuring 60 mm wide. The module includes up to IP67 protection, making it suitable for harsh environments. With 16 digital output channels, each capable of handling 2 A, and robust galvanic isolation, this device ensures reliable performance. It supports 8 x M12 A-coded I/O connections and 2 x M12 D-coded bus connections for versatile connectivity. Additionally, it features 2 x 7/8" power supply connections, both 5-poles, to accommodate various industrial power standards. SSR (Solid State Relay) options, LED status indicators, and various diagnostic tools simplify monitoring and maintenance, ensuring system stability and uptime. Perfect for deploying in high-demand industrial settings, including manufacturing, production lines, and automated assembly.
Downloads
Datasheet (EN)Specifications
| O-Ring Material: | FKM |
|---|---|
| ODVA: | |
| Output Current per Channel: | max. 2 A |
| Output Current per Module: | max. 9 A |
| Output Wiring: | 2-, 3-wire |
| Overload Behavior: | Manual restart |
| Part Number (#1): | 934880002 |
| Permissible Humidity (Operation): | 5 % ... 95 % (For UL applications max. 80 %) |
| Permissible Humidity (Storage/Transport): | 5 % ... 95 % (For UL applications max. 80 %) |
| Pollution Degree: | 3 acc. to EN 60664-1, VDE 0110-1 |
| Potted: | |
| Product Family: | I/O Systems: Active - Standalone |
| Product Sub Family: | LioN-P |
| Number of Ports: | 8x, X1 to X8 |
| Number of Digital Output Channels: | max. 16, fixed |
| Item Description: | 0980 ESL 312-111 |
| Long Description (#1): | LioN-P, I/O Standalone, EtherNet/IP, industrial metal housing, 60 mm, up to IP67, 16 digital output channels (2 A) with galvanic isolation, 8 x M12 A-coded I/O connection, 5-poles, 2 x M12 D-coded bus connection, 4-poles, 2 x 7/8" power supply connection, |
| Mean Time To Failure (MTTF): | 714 years. acc. to Telcordia SR-332 (2011) 20°C |
| Module Supply Voltage (Nominal): | 24 V DC (SELV/PELV) |
| Module Supply Voltage (Range): | 18 V DC to 30 V DC |
| Mounting: | 2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts. |
| Nominal Voltage: | 24 V DC via UL (actuator power supply) |
| Number of Connections (#3): | 2 |
| Number of Connections (#6): | 2 |
| Protection Class: | III, IEC 61140, EN 61140, VDE 0140-1 |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Status Indicator (System Supply): | LED green |
| Supported Network Protocols (Other) (#1): | ACD, ARP, BootP, DHCP, HTTP, IGMP, Ping, TCP/IP |
| System Power Supply Connection Note: | *do not connect / disconnect under voltage! |
| Transmission Method: | 100 BASE-TX, with auto negotiation and auto crossing |
| Transmission Rate (#3): | Fast Ethernet (10/100 Mbit/s), Full Duplex |
| UL: | cULus Listed, UL 61010-1 |
| UL / FE: | 500 V DC |
| UL-File: | E230848 |
| US (System Supply Voltage) / FE: | 500 V DC |
| US / UL (Actuator Supply Voltage): | 500 V DC |
| Vibration Resistance: | 15 g / 5 -500 Hz |
| Weight: | 520 g |
| Width: | 60 mm |
| Status Indicator (Outputs): | LED white or yellow per channel |
| Status Indicator (Actuator Supply): | LED green |
| Protective Circuit: | Electronicaly: Overload protection, short-circuit protection |
| Protocol (EtherNet/IP): | EtherNet/IP |
| Quick Connect (QC): | Supported, ≤ 500 ms |
| Reverse Polarity Protection: | |
| Reverse Polarity Protection (#2): | |
| RoHS Compliant: | |
| Shock Resistance: | 50 g / 11ms |
| Specification (#1): | CIP V3.1x, EIP Adaption of CIP V1.1x |
| Width (#1): | 2.3622 in |
| Actuator Supply Voltage (Nominal): | 24 V DC (SELV/PELV) |
| CIP I/O Connection Limit: | 3 |
| CIP Msg Connection Limit: | 6 |
| CSA: | Yes, via UL |
| Channel Type: | p-switching |
| China RoHS-Compliant: | |
| Connection (#11): | M12 LAN, 4-poles, D-coded |
| Connection (#3): | M12, 5-poles, A-coded |
| Connection Actuator Supply Voltage: | via Module Supply Connection |
| Connection Module Supply Voltage: | 7/8" Power, 5-poles |
| Connection Sensor Supply Voltage: | M12 Power, 5-poles, L-coded |
| Connection Types: | Exclusive Owner, Input Only, Listen Only |
| Contact Base Material (#1): | M12, D-coded, CuSn, Gold-plated | 7/8" CuZn, Gold-plated |
| CE: | |
| Bus connection / FE: | 2000 V DC |
| Ambient Temperature (storage/transport), min. (#1): | Error |
| Actuator Supply Voltage (Range): | 18 V DC to 30 V DC |
| Address Switches Range (#1): | 0 to 255 dec |
| Addressing: | BootP, DHCP, Rotary Address Switches |
| Air Pressure (Operation): | 80 kPa … 106 kPa (up to 2000 m above sea level) |
| Air Pressure (Storage/Transport): | 80 kPa … 106 kPa (up to 2000 m above sea level) |
| Ambient Temperature (Operation)*: | -20 °C to 70 °C |
| Ambient Temperature (Storage/Transport): | -25 °C to 85 °C |
| Ambient Temperature (operation), max: | 70 |
| Ambient Temperature (operation), max (#1): | Error |
| Ambient Temperature (operation), min.: | Error |
| Ambient Temperature (operation), min. (#1): | -20 |
| Ambient Temperature (storage/transport), max.: | Error |
| Ambient Temperature (storage/transport), max. (#1): | 85 |
| Ambient Temperature (storage/transport), min.: | -25 |
| Contact Bearer Material (#1): | PA / TPU |
| Current Carrying Capacity of Connector: | max. 9 A |
| Current Carrying Capacity of Connector (#1): | max. 9 A |
| EN 61000-4-4 Fast Transients (Burst): | Criterion B, 2 kV |
| EN 61000-4-5 Surge Voltage: | Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m |
| EN 61000-4-6 Conducted immunity: | Criterion A; Test voltage 10 V |
| Fastening Torque (Bus Connection): | M12: 0.5 Nm |
| Fastening Torque (Fixing Screw): | M4: 1 Nm |
| Fastening Torque (Ground Connection (FE)): | M4: 1 Nm |
| Fastening Torque (I/O Connection): | M12: 0.5 Nm |
| Fastening Torque (Power Connection): | 7/8": 1.5 Nm |
| Flammabilty Class: | UL 94 (IEC 61010) |
| Galvanically Isolated: | |
| Height: | 26 mm |
| Housing Color: | Grey Metallic |
| Housing Material: | Metal, Zinc Die-cast |
| Housing Plating: | Nickel, matt |
| EN 61000-4-3 Electromagnetic Field: | Criterion A; Field intensity: 10 V/m |
| EN 61000-4-2 Electrostatic Discharge (ESD): | Criterion B; 4 kV contact discharge, 8 kV air discharge |
| EN 55022 Radio Interference Properties: | Class A |
| Current Consumption (typ.): | 120 mA (at 24 V DC) |
| Customer Specific Product: | |
| Cycle Time / Requested Packet Interval (RPI): | min. 1 ms |
| Depth: | 8.1102 in |
| Depth (#1): | 206 mm |
| Device Level Ring (DLR): | Supported, beacon based |
| Diagnostic Idicator: | LED red per channel |
| Diagnostic Indicator: | LED red |
| Diagnostic Indicator (#3): | LED red |
| Dimensions (W x H x D): | 60 mm x 26 mm x 206 mm |
| EMC Directive: | 2014/30/EU |
| Included in Delivery: | Attachable Labels: 15x, Sealing Caps: 5x M12 |
| Unique No.: | aut934880002 |
