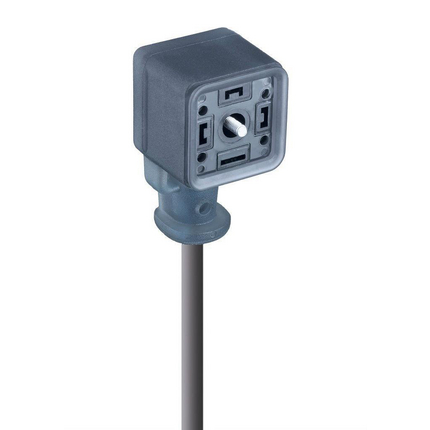

GAN DIN Standard Single-Ended Cordset
€18.77*
Prices excl. VAT plus shipping costs
Article number:GAN3ZLU-A0U-6100500-1UC
Manufacturer number:934889080
EAN:04001088021365
Brand:Hirschmann
Minimum order quantity:25
Product information
The GAN DIN Standard Single-Ended Cordset is a reliable connector solution for various industrial applications. Featuring a 4-pin configuration (3+1PE; PE at cable outlet) and a grey translucent body, this cordset ensures robust and precise connections. With a maximum operating voltage of 230 V AC/DC and a current rating of 10 A, it provides dependable performance even in challenging environments. Designed according to DIN EN 175301-803-A standards, the cordset is unshielded and features a central screw attachment for secure fitting. The high-quality PVC grey cable has a conductor size of 0.75 mm², contributing to its durability.
Downloads
Datasheet (EN)Specifications
| Ambient Temperature (Fixed Installation): | - 40 °C - + 90 °C |
|---|---|
| Ambient Temperature (Flex Installation): | - 5 °C - + 90 °C |
| Ambient Temperature (Operation)*: | -25 °C - +85 °C (With additional 934-887-001 gasket : -40 °C - +105 °C) |
| Attachment Material: | Steel, Philips combi slot |
| Attachment Type: | Central Screw |
| Cable Characteristics: | Exclusion of dangerous materials acc. : 2000/53/EG, 2011/65/EU, 2003/11/EG, 1907/2006/EG |
| Cable Diameter D: | ø 6.20 ± 0.20 mm |
| Cable Jacket Color: | grey RAL 7001 |
| Cable Jacket Material: | PVC |
| Cable Length: | 5 m |
| Cable Number: | 610 |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Coding: | A |
| Conductor Size: | 0.75 mm² |
| Conductor material: | Cu |
| Connector Design: | Angled |
| Connector Type: | Cordset, single ended |
| Contact Base Material (#1): | CuZn |
| Contact Bearer Color: | black |
| Contact Bearer Material (#1): | PA GF |
| Contact Plating: | Cu/Sn |
| Contact Resistance: | ≤ 10 mOhm |
| Design Standard: | DIN EN 175301-803-A, ISO 4400 |
| Fastening Torque (Attachment): | (50-60) Ncm |
| Flammability Class (Cable Jacket): | IEC 60332-1, DIN VDE 0472 Teil 904 test method B |
| Flammability Class (Contact Bearer): | UL 94 V-0 |
| Flammability Class (Molded Body): | UL 94 HB |
| Gasket Material: | Molded Integrated Gasket |
| Halogenfree: | no |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Item Description: | GAN3ZLU-A0U-6100500-1UC |
| Long Description (#1): | GAN DIN Standard Single-Ended Cordset: Form A, 4-pin (3+1PE; PE at cable outlet), grey translucent body, without circuitry, 230 V AC/DC, 10 A; PVC grey cable, 0.75 mm² |
| Mating Cycles: | ≤ 50 |
| Minimal Bending Radius (Fixed Inst): | ˃ 4 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Molded Body Color: | Grey translucent |
| Molded Body Material: | TPE |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | Notice derating |
| Number of Pins: | 3+PE (PE at cable outlet) |
| Number of Wires: | 4 |
| Oil Resistance: | VDE 0250 and 0472 |
| Operating Voltage: | 230 V AC/DC |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 934889080 |
| Pin Color 01@Side 1: | brown |
| Pin Color 02@Side 1: | blue |
| Pin Color 03@Side 1: | black |
| Pin Color PE@Side 1: | green-yellow |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Valve Connectors |
| Product Sub Family: | GAN |
| Protection Circuitry: | No Circuitry |
| Protection Degree / IP Rating**: | IP65, IP67 (IP69K: without additional gasket; max. +80 °C) |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Current*: | 10 A |
| Rated Impulse Voltage: | 4.0 kV |
| Replacement for: | ID: 934562076 Name: GAN-DAEF7A-AH0500C1-XC607-AC |
| RoHS Compliant: | yes |
| Shielding: | Unshielded |
| Type of Contact / Gender: | Female |
| VDE: | yes |
| Wire Insulation Material: | PVC |
| uniek_nr: | hir934889080 |
