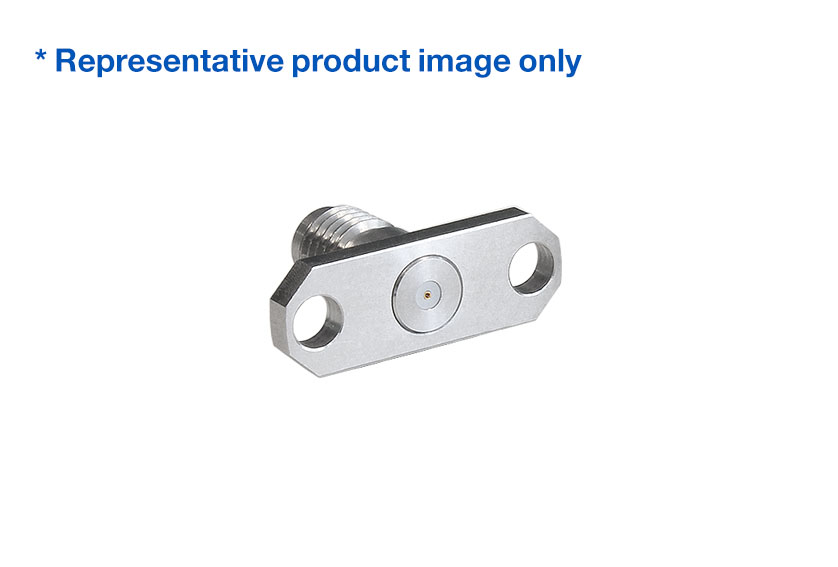

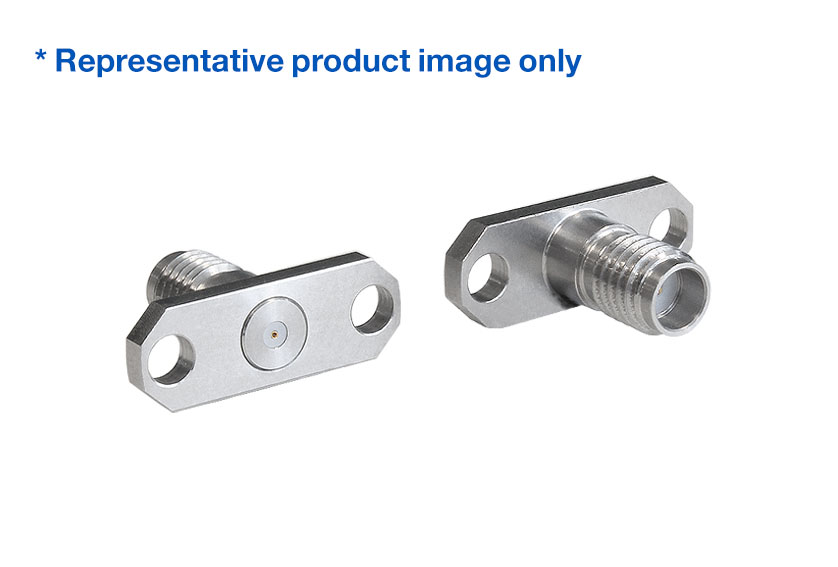

SSMA Straight Jack 2 Hole Flange RF Connector
€68.51*
Prices excl. VAT plus shipping costs
Article number:RFSSMAA2JEGD
Manufacturer number:RFSSMAA2JEGD
Brand:Bulgin
Minimum order quantity:25
Datasheet (EN)Specifications
| body_length: | 10.20mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >500V |
| durability: | >500 cycles |
| flange_mount_length: | 15.80mm |
| function: | Female Flange Mount RF Connector |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | Adapter ASTM D 1710 |
| max_coupling_torque: | 1.10Nm |
| max_operating_frequency: | 40GHz |
| max_operating_temperature: | +165°C |
| min_coupling_torque: | 0.80Nm |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -65°C |
| mount_hole_distance: | 12.20mm |
| socket_diameter: | 0.46mm |
| thread_size: | 10 36UNS 2A |
| uniek_nr: | blgRFSSMAA2JEGD |
| voltage_max: | 335V |
| vswr: | <1.30 |
