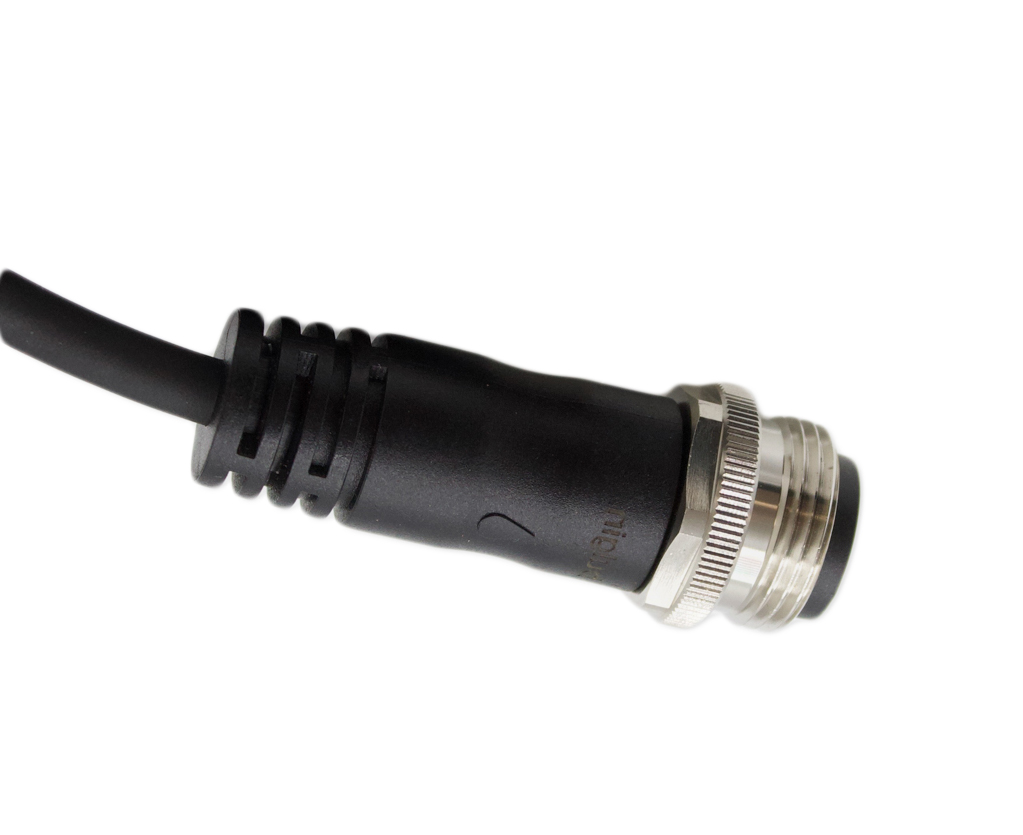

5 Contacts 7/8" Inline Body Male 5m Cable
€127.85*
Prices excl. VAT plus shipping costs
Article number:PXPTPU78FIM05ACL050PUR
Manufacturer number:PXPTPU78FIM05ACL050PUR
Brand:Bulgin
Minimum order quantity:50
Datasheet (EN)Specifications
| cable_length: | 5m |
|---|---|
| connection_method: | Solder |
| contact_type: | Plug Contact |
| current_max: | 9A |
| durability: | >100 Cycles |
| function: | Inline Body Male Connector Single Ended Cable |
| insulation_resistance: | >100MOhm |
| ip_rating: | IP67 |
| max_cable_entry_size: | 8.5mm |
| max_operating_temperature: | +80°C |
| min_operating_temperature: | -25°C |
| number_of_contacts: | 5 Contacts |
| pin_layout_code: | A Code |
| rohs_compliant: | |
| thread_size: | 7/8-16UN |
| uniek_nr: | blgPXPTPU78FIM05ACL050PUR |
| voltage_max: | 300V |
