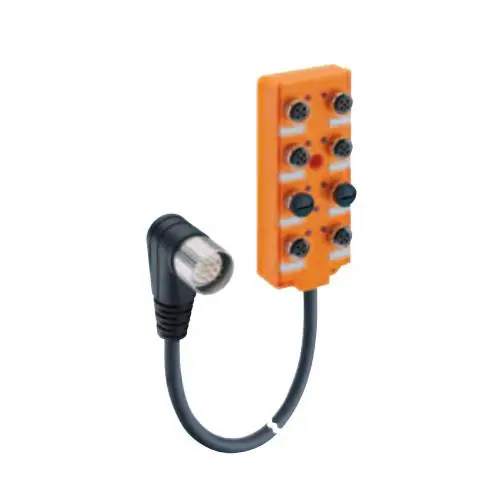

ASB with FIXCON-connector, 8 ports; M23 12-poles right angle
€227.08*
Prices excl. VAT plus shipping costs
Article number:RSWU 12-ASB 8/LED 5-4-331/10 M
Manufacturer number:71807
EAN:04020841590160
Brand:Lumberg Automation
Minimum order quantity:1
Product information
The ASB with FIXCON-connector is a highly reliable and durable connection block designed for industrial automation applications. It features 8 ports, making it suitable for complex systems that require multiple connections. The M23 12-poles right angle connector ensures a secure and efficient connection, minimizing the risk of disconnections during operation. The housing is made from plastic TPU, providing robustness and durability, while maintaining a lightweight structure. The vivid orange housing color allows for easy identification in any setup. The unit maintains an IP67 protection rating, ensuring reliable performance in harsh environments marked by dust and moisture exposure. Additionally, it is PNP sensor compatible, and the potted design enhances protection against environmental contaminations. This product complies with CE and RoHS standards, underscoring its safety and environmental commitment. The device has an operating temperature range from -15°C to 80°C, allowing for versatile application in different industrial conditions.
Downloads
Datasheet (EN)Specifications
| 5 - Pin: | 5 - Pin |
|---|---|
| Ambient Temperature (Operation)*: | -15 °C to 80 °C |
| Ambient Temperature (operation), max: | 80 |
| Ambient Temperature (operation), max (#1): | Error |
| Ambient Temperature (operation), min.: | Error |
| Ambient Temperature (operation), min. (#1): | -15 |
| Bushing with thread: | CuZn, nickeld |
| CE: | |
| Clearance / Creepage Distance: | EN 60664-1 (2003/11); VDE 0110-1 |
| Contact Base Material (#1): | CuZn |
| Contact Bearer: | PBT |
| Contact Bearer Material (#1): | PBT |
| Contact Plating: | pre-nickled and gold-plated |
| Contact Resistance: | = 5 mOhm |
| Contact material: | CuZn |
| Contact surface material: | pre-nickled and gold-plated |
| Customer Specific Product: | |
| Depth: | 5 in |
| Depth (#1): | 127 mm |
| Dimensions (W x H x D): | 54 mm x 30,3 mm x 127 mm |
| Fastening Torque (I/O Connection): | M12: 0.5 Nm |
| Height: | 30,3 mm |
| Housing Color: | Orange |
| Housing Material: | TPU, orange |
| Inflammability: | housing: UL 94 V-2 |
| Item Description: | RSWU 12-ASB 8/LED 5-4-331/10 M |
| Long Description (#1): | ASB with FIXCON-connector, 8 ports; M23 12-poles right angle |
| M12: | M12 |
| Mating Cycles: | max. 100 |
| Number of Pins: | 5 |
| O-Ring Material: | FKM |
| Part Number (#1): | 71807 |
| Pin dimensions: | Ø 1 mm |
| Pollution Degree: | 3 |
| Potted: | |
| Product Sub Family: | Classic |
| Protection Degree / IP Rating (IEC 60529): | IP67 |
| Protection Degree / IP Rating**: | IP67 |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Impulse Voltage: | 1.5 kV |
| Rated Voltage: | 60 V DC |
| RoHS Compliant: | |
| Sensor Type: | PNP |
| System Power Supply Connection Note: | *do not connect / disconnect under voltage! |
| Type of Contact / Gender: | pin contact |
| Width: | 54 mm |
| Width (#1): | 2.126 in |
| over moulding: | TPU, self-extinguishing |
| uniek_nr: | aut71807 |
