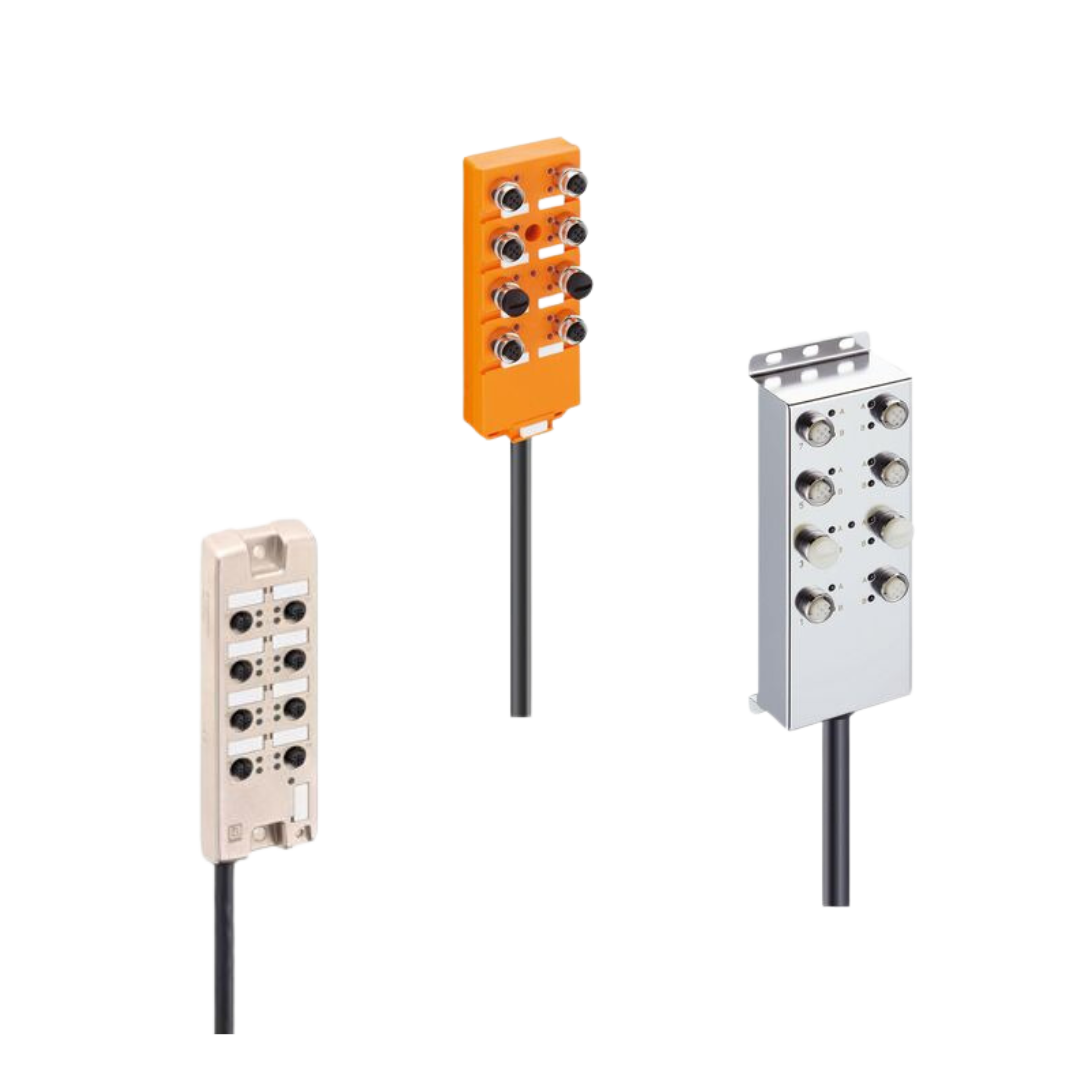

Passive Distribution Boxes

The LioN-R passive module with 8 ports and LED indicators is ideal for various automation tasks. It features a sturdy metallic housing made of zinc die-cast, ensuring durability and longevity. Designed to withstand extreme environmental conditions, the module operates efficiently between -40°C and 80°C, compliant with IP65/IP67 ratings for dust and water resistance. The device is equipped with M12, 5-poles, A-coded I/O connections, offering single I/O per port, with a system supply indicator via a green LED. The module operates on a 24 V DC actuator supply voltage (10 V DC to 30 V DC range), suitable for multiple sensor types including PNP. All ports support 2-, 3-, and 4-wire input wiring configurations, with galvanically isolated digital output channels ensuring reliable operation. One of the main benefits of the LioN-R passive module is its robust build, crafted to handle extensive operational demands in industrial environments. The zinc die-cast body with nickel matt plating reinforces its resistance against mechanical stress, while the PA / TPU contact bearer material and FKM O-ring materials enhance its overall durability. The module's protection degree rating of IP65/IP67 confirms its capability to operate under challenging conditions, making it an excellent choice for both indoor and outdoor applications. This module is versatile and can be utilized in various applications including factory automation, machinery, and process control systems. It is potted for better environmental protection and uses standard M6 x 25 / 30 screws for secure mounting. The device ensures safety and compliance with certifications like CE, RoHS, and cULus (UL 508). Its environmental resilience, high performance, and reliable connectivity make it an indispensable asset in creating a robust automation infrastructure.

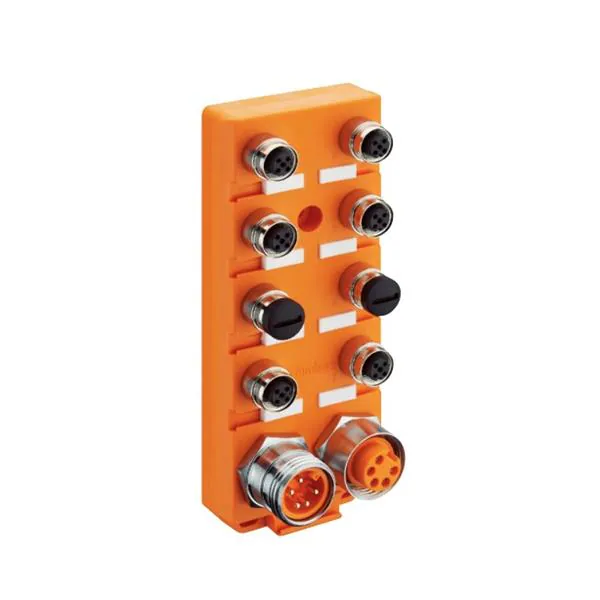

The Passive DeviceNet distribution box is designed for efficient and reliable distribution of DeviceNet signals. It features a 7/8" bus-in/bus-out connection and is equipped with 8 M12 branches, each with 5 poles and A-coding. The box is crafted from durable plastic (PUR) with a bright orange housing and complies with the IP67 protection rating, ensuring its robustness and reliability in challenging environments. The unit is potted, enhancing its protection against environmental factors. Operating temperatures range from 0 °C to 60 °C, and it supports an actuator supply voltage range of 10 V DC to 30 V DC, with a nominal voltage of 24 V DC. This distribution box is RoHS compliant and CE certified, making it a dependable choice for industrial applications where safety and performance are paramount.

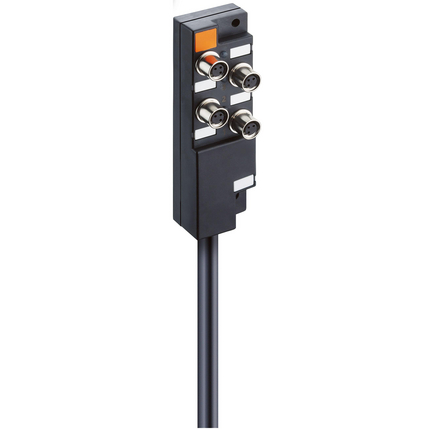

The LioN-S passive module with four ports and LED indicators is a key component for effective I/O connectivity in industrial automation systems. Measuring 30 mm x 25.5 mm x 100 mm, this module offers a compact, durable design suitable for various applications. The I/O connections include M8 connectors with three poles and A-coding, providing a single I/O per port configuration. The module operates within a wide temperature range from -25°C to 70°C, making it suitable for various industrial environments. The black housing, made from PBT + ASA, ensures high durability and resistance to harsh conditions. This LioN-S passive module features green LED status indicators for easy monitoring of the system supply. The actuator supply voltage ranges from 10 V DC to 30 V DC, with a nominal value of 24 V DC. Designed with protection degree IP67, it ensures resistance to dust and water, granted the appropriate connectors are used. The module supports a range of sensor types including PNP and wiring configurations for both input (2-, 3-, 4-wire) and output (2-, 3-wire) channels. Ideal for industrial automation applications, the LioN-S passive module is RoHS, China RoHS, and CE compliant, and comes with UL and CSA approvals, ensuring it meets high standards for safety and environmental compliance. This makes it a reliable choice for engineers and technicians looking for robust I/O connectivity solutions.

The ASB with FIXCON connector is designed for robust industrial applications, featuring 6 ports with double I/O per port. Each port comes with an M12, 5-poles, A-coded connector, and is protected by a sturdy plastic housing in a vibrant orange color. With a protection rating of IP67, this module is potted, ensuring excellent resistance to dust and water. The compact dimensions of 60 mm x 30.3 mm x 125 mm make it easy to install even in confined spaces. Operating efficiently within a temperature range of -15 °C to 80 °C, it supports a variety of environments. Additionally, the module provides clear status indications with green LEDs for system supply and yellow LEDs per channel for port status. It operates on an actuator supply voltage range from 10 V DC to 30 V DC, making it versatile for different applications. Safety and environmental compliance standards, including CE, RoHS, and cULus, ensure reliable and secure operation.

The LioN-S passive, 8 ports, LED, manufactured by Belden, is an advanced passive connection system designed for a broad range of automation applications. It features 8 ports with M8, 3-poles, A-coded I/O connections, allowing for multiple connectivity options including 2-, 3-, and 4-wire input wiring. The ports are housed in a durable PBT + ASA black casing, offering high reliability and protection with an IP67 rating when mounted and locked using compatible connectors. The device supports a wide operating temperature range from -25 °C to 70 °C and ensures compliance with key safety standards including CE, RoHS, and China RoHS.

The LioN-S passive, 8 ports module is designed to meet the demanding requirements of industrial environments. Featuring eight M8, 3-pole A-coded I/O connections, this module offers robust connectivity for a variety of sensors and actuators. The open-ended control cable interface allows for flexible installation. The housing is constructed from durable PBT + ASA material, offering superior resistance to environmental stress. With an IP67 protection rating, this module is highly resistant to dust and water intrusion, making it suitable for use in harsh conditions. It operates effectively in temperatures ranging from -25 °C to 70 °C. The module includes LED status indicators for system supply and port activities, providing clear visual diagnostics. Each port supports current up to 1.5 A, accommodating various industrial devices. This RoHS and China RoHS-compliant product ensures adherence to strict environmental standards.

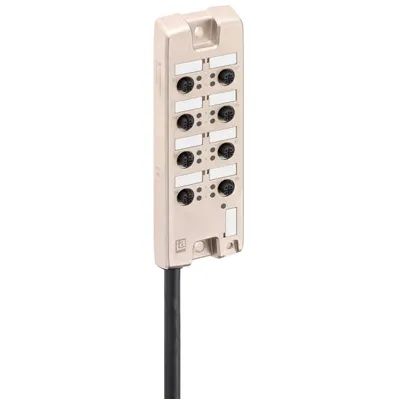

The ASB unit is a robust and reliable connectivity solution designed for industrial applications. Featuring 8 ports with M12 connectors, A-coded with 4/3 pins, the unit offers seamless integration for various control systems. The compact design and plastic TPU housing ensure durability and resistance to environmental stresses. With an IP67 protection rating, the ASB unit is well-suited for challenging environments, providing reliable performance in temperature ranges from -15 °C to 80 °C, and it is potted for enhanced protection. The 1 1/8" control cable interface with 19-poles enhances connectivity options, making it a versatile choice for complex wiring needs. The color-coded LED indicators for system supply and port status ensure easy monitoring and troubleshooting.

The ASB with FIXCON-connector is a versatile and robust connectivity solution designed to meet the demands of modern industrial environments. It includes 4 ports with LED indicators and supports a double I/O configuration per port, allowing flexible and efficient signal and power transmission. The device is equipped with M12, 5-pole, A-coded connections and comes in an orange plastic housing made of durable TPU material, ensuring a high protection degree of IP67. This module is also potted, enhancing its durability and long-term reliability in harsh conditions. The control cable interface is designed with an open end to provide ease of integration into various systems. The ASB with FIXCON-connector offers numerous benefits, including its wide operational temperature range from -15°C to 80°C, pollution degree 3 as per EN 60664-1 standards, and galvanically isolated digital output channels. The LED indicators provide clear and quick status updates for both system supply and port activities, ensuring easy monitoring and maintenance. The device supports a nominal actuator supply voltage of 24 V DC, with a range of 10 V DC to 30 V DC, making it versatile for different industrial applications. This product is ideal for applications requiring reliable and robust data and power transmission in harsh environments. It ensures safe and secure connections, with a fastening torque of 0.5 Nm for M12 connections. The ASB with FIXCON-connector complies with various safety and environmental standards, including CE, RoHS, China RoHS, and UL certifications, ensuring high standards of performance and safety.

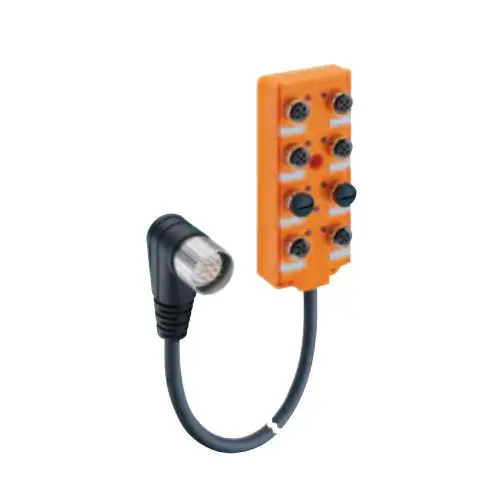

The ASB with FIXCON-connector is a highly reliable and durable connection block designed for industrial automation applications. It features 8 ports, making it suitable for complex systems that require multiple connections. The M23 12-poles right angle connector ensures a secure and efficient connection, minimizing the risk of disconnections during operation. The housing is made from plastic TPU, providing robustness and durability, while maintaining a lightweight structure. The vivid orange housing color allows for easy identification in any setup. The unit maintains an IP67 protection rating, ensuring reliable performance in harsh environments marked by dust and moisture exposure. Additionally, it is PNP sensor compatible, and the potted design enhances protection against environmental contaminations. This product complies with CE and RoHS standards, underscoring its safety and environmental commitment. The device has an operating temperature range from -15°C to 80°C, allowing for versatile application in different industrial conditions.

The LioN-S passive module, equipped with 8 ports, is designed for robust industrial applications requiring precise data connectivity. Featuring LED indicators and built from ESD-capable PBT + ASA material, this module ensures efficient and secure data transfer. The module supports M8, 3-poles, A-coded I/O connections with a single I/O per port. It offers protection up to an IP67 rating, making it highly durable in various environmental conditions. The compact dimensions of 30 mm x 25.5 mm x 145 mm allow for easy installation in tight spaces. With an operating temperature range of -25 °C to 70 °C, the module sustains performance in diverse climatic conditions. The green LED system supply indicator and yellow LED status indicators for each port facilitate easy monitoring. The LioN-S passive module is CE and RoHS compliant, contributing to both safety and environmental standards. Suitable for various automation applications, it is primarily used to simplify and enhance connectivity in industrial settings.

ASB with FIXCON connector, 8 ports, LED, integrated fuses, M23 connector, double I/O per port

The LioN-R passive module, featuring 8 ports with double I/O per port, is a robust solution for industrial automation needs. Housed in a durable zinc die-cast metal case with a nickel-matte finish, this module is built to withstand harsh environments with an IP65/IP67 protection rating. The compact dimensions (60 mm x 21 mm x 185 mm) and two-hole screw mounting make it easy to install in various settings. The module supports a wide temperature range of -40°C to 80°C (UL: 60°C), ensuring reliable operation under extreme conditions. The M12, 5-poles A-coded connectors provide secure and reliable I/O connections, with a maximum current of 1.5 A per connector and module. LED indicators facilitate easy status monitoring of both system and port levels. Compliant with CE, RoHS, and China RoHS standards, the LioN-R passive module ensures safety and environmental compliance. It includes PNP sensor compatibility and galvanically isolated digital output channels, enhancing system integrity and safety.

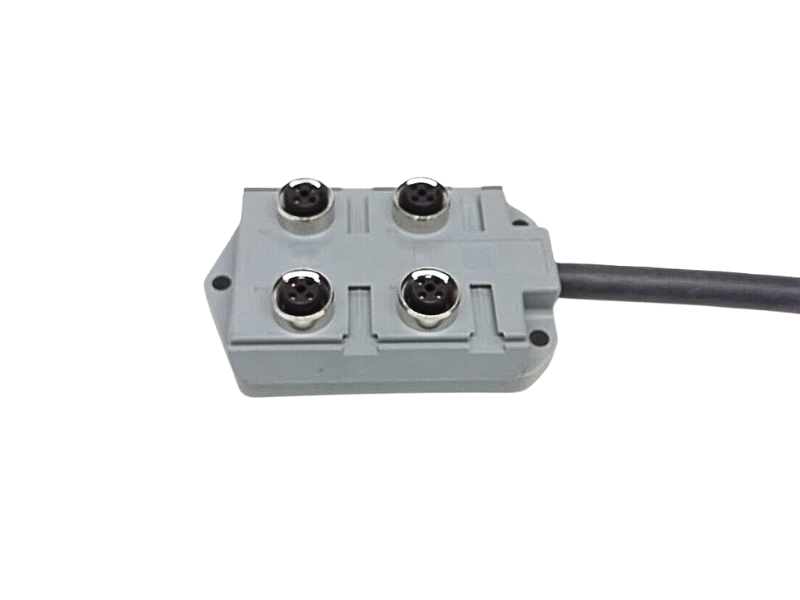

The ASB, 4 ports, 4/3-poles device is designed for efficient industrial automation connectivity. Featuring M12 connectors with 4/3 poles and A-coded configuration, this device ensures reliable connections for various applications. The housing, made from durable grey TPU plastic, ensures protection against harsh environmental conditions with an IP67 rating for robust outdoor and indoor usage. The I/O connection is single per port with an open-end control cable interface, designed to deliver optimal performance in applications requiring reliable signal and power transmission. Benefits of this product include enhanced protection against dust and water ingress, thanks to its IP67 rating, and robust construction with quality materials like CuZn contact base and PA contact bearer. The operational temperature range from -15 °C to 80 °C ensures the device's suitability in diverse environments. Additionally, LED indicators provide clear status feedback for system supply and port connections, aiding in quick diagnostics and maintenance. This ASB device is suitable for use in industrial automation systems requiring multiple I/O connections. It is ideal for environments with significant dust or moisture, ensuring consistent connectivity and performance in these demanding settings. With approvals like cULus Listed and RoHS compliance, it adheres to high safety and environmental standards.

The LioN-S passive, 10 ports device by Belden is designed for robust industrial applications requiring multiple connection points. It is housed in a durable PBT and ASA material, ensuring longevity and resistance to environmental factors. The module is equipped with M8, 3-pole, A-coded I/O connections, providing flexibility with an open-end control cable interface. The compact dimensions of 30 mm width, 25.5 mm height, and 170 mm depth ensure it fits seamlessly in various configurations. The device operates efficiently within a temperature range of -25 °C to 70 °C, making it suitable for diverse environmental conditions. With a protection degree of IP67, it guarantees complete protection against dust ingress and temporary immersion in water. The green LED indicator for system supply and yellow LED indicators for port status allow easy monitoring. The actuator supply voltage ranges from 10 V DC to 30 V DC, with a nominal value of 24 V DC (SELV/PELV). Designed for 2-, 3-, and 4-wire input wiring configurations and PNP sensor types, this device is suitable for a wide range of industrial applications. It complies with CE, RoHS, and China RoHS standards, ensuring safety and environmental compatibility.

The LioN-R passive provides robust industrial connectivity with its four ports, LED status indicators, and M23 connector. Featuring double I/O per port, this module ensures reliable and versatile performance. The housing material is a resilient zinc die-cast, nickel-plated for enhanced durability, and offers high protection with an IP65/IP67 rating. The device operates in a wide ambient temperature range, from -40 °C to 80°C, making it suitable for harsh environments. The control cable interface is M23, 19-poles, and the I/O connections are M12, 5-poles, A-coded, ensuring seamless integration into various systems. Additionally, the module supports both 2-, 3-, and 4-wire input wiring for PNP sensors and 2-, 3-wire output wiring, with galvanic isolation to prevent electrical interference. Easy to mount with standard M6 screws, the LioN-R passive is built for efficiency and reliability in industrial settings.

The LioN-R passive, 4 ports, LED module by Belden is designed for reliable operation in industrial environments. It features M12, 5-pole, A-coded I/O connections and supports single I/O per port. The device has a robust zinc die-cast housing with nickel plating, offering durability and protection against harsh conditions. The module's IP65 and IP67 ratings ensure it is suitable for demanding environments, withstanding temperatures from -40 °C to 80 °C. The compact dimensions (60 mm x 21 mm x 130 mm) and 2-hole screw mounting make it easy to integrate into various setups. With an actuator supply voltage of 24 V DC and a range of 10 V DC to 30 V DC, it is reliable for various applications. The system features LED indicators for status monitoring, ensuring optimal performance. With RoHS, CE, and cULus certifications, the LioN-R passive module complies with high safety and environmental standards.

The ASB with FIXCON connector comes with 4 ports, LED indicators, and an M23 connection, making it a versatile and essential component for various industrial applications. With 8 individual I/O connections using M12, 5/4-poles, and A-coded ports, this module offers robust connectivity and efficient performance. The intuitive design includes a green LED status indicator for system supply, while yellow LEDs mark each channel's status, ensuring easy monitoring and quick diagnostics. Crafted with a durable TPU plastic housing, this module is built to withstand harsh environments, boasting an IP67 protection rating. Its ability to operate in temperatures ranging from -15°C to 80°C further enhances its application range. The ASB is also CE and RoHS compliant, assuring adherence to the highest safety and environmental standards.

ASB with FIXCON connector, 8 ports, LED, M23 12-poles

The adressing adapter by Belden is a robust and necessary component in the ASi product family, designed to facilitate reliable and efficient automation connections. Encased in a sturdy plastic housing (PA), the adapter measures 58 mm x 16 mm x 438 mm, making it compact yet highly functional. The M12 control cable interface ensures secure connections with a fastening torque of 0.5 Nm. It operates within an actuator supply voltage range of 10 V DC to 30 V DC, with a nominal voltage of 24 V DC (SELV/PELV). This adapter supports 2-, 3-, and 4-wire input wiring, offering flexibility in various applications. While not galvanically isolated, it meets RoHS compliance and CE standards, ensuring safe and eco-friendly operation. Ideal for integration within automation systems, the adressing adapter is a vital tool for precise control and monitoring of processes.

The LioN-R passive module is designed to provide a robust and efficient 4-port I/O interface, featuring LED indicators for easy status monitoring. With a sturdy metal housing made of zinc die-cast and nickel-plated for additional durability, this device can withstand challenging industrial environments with IP65/IP67 protection ratings. It supports a wide operating temperature range from -40°C to 80°C, making it suitable for various application scenarios. The module uses M12 connections that are A-coded and can handle up to 1.5 A per connector and per module. The green LED indicators signal power status, while yellow LEDs denote the status of each port channel, ensuring clear and accessible diagnostic information.

The LioN-R passive module features 4 M12, 5-pole, A-coded ports with LED indicators for easy status monitoring. Built with a zinc die-cast metal housing, it ensures durability with nickel matte plating and features potted components for additional protection. This module ensures a high level of protection with IP65 and IP67 ratings, making it suitable for harsh environmental conditions. Operating in a wide temperature range from -40°C to 80°C, it meets stringent industry standards, including CE, RoHS, and UL certifications. The module supports a nominal actuator supply voltage of 24 V DC and accommodates input wiring configurations of 2-, 3-, and 4-wire sensor types. With its compact design (60 mm x 21 mm x 130 mm), it is easily mountable using standard M6 screws. This product is ideal for industrial automation applications requiring reliable and secure connectivity.

The Belden Miniature sensor distributor, model SB 8/LED NPN 3-333, offers a compact and efficient solution for sensor distribution needs. With 8 ports and integrated LED indicators, this distributor ensures clear and easy monitoring of connections. The I/O connection features M8, 3-poles, and is A-coded for secure and reliable connections. The housing is manufactured from durable TPU and is colored orange for high visibility. Rated at IP67, it provides excellent protection against dust and water ingress, ensured by its potted design. The distributor operates safely within ambient temperatures ranging from -15 °C to 80 °C, making it suitable for various demanding environments. It comes with an open-end control cable interface and supports single I/O wiring per port, ideal for precise and organized sensor setups. The distributor is RoHS compliant and CE certified, guaranteeing adherence to safety and environmental standards.

The LioN-S passive module, featuring 8 ports and LED indicators, is designed for robust and secure industrial applications. This device includes M8 connectors, 3-pole, A-coded, and provides a streamlined solution for I/O connection with single I/O per port configuration. The housing of the unit is crafted from PBT + ASA, ensuring durability and reliability under harsh conditions with an IP67 protection rating. The control cable interface is via open end, allowing for versatile application within various systems. The module operates within a temperature range of -25 °C to 70 °C, suitable for diverse industrial environments. The status indicators, green for system supply and yellow for port status, ensure easy monitoring of the operational state. The ASBM 8/LED 3-345 variant complies with CE, RoHS, and China RoHS standards, and is UL-listed for safety compliance. This device is ideal for applications requiring reliable and isolated digital input and output channels, with a maximum current capability of 1.5 A per connector and per module.

The Miniature sensor distributor, 8 ports, LED, is a highly reliable and versatile component ideal for industrial automation applications. Manufactured by Belden under the Classic series, this distributor provides 8 individual I/O connections with an M8, 3-poles, A-coded interface. Its housing is made from robust plastic material (TPU) and is finished in a high-visibility orange color. The unit is designed to meet the rigorous demands of industrial environments, with an IP67 protection rating ensuring it is completely dust-tight and protected against water immersion up to one meter depth. The IP67 rating is maintained only when the unit is mounted and locked in combination with Hirschmann or Lumberg Automation connectors. One of the standout benefits of this sensor distributor is its enhanced durability and functionality in extreme conditions. It operates reliably within a wide ambient temperature range from -15 °C to 80 °C, ensuring long-lasting performance in varied industrial settings. The unit features a potted construction, providing additional protection and durability. Additionally, it is equipped with LED indicators for easy monitoring and troubleshooting of each port. The Miniature sensor distributor can be broadly applied across various industrial automation systems, facilitating effective and organized sensor interfacing. It is especially useful in complex machinery setups where multiple sensor inputs need to be consolidated. Its flexible design, coupled with a pollution degree of 3 according to EN 60664-1, VDE 0110-1, makes it suitable for use in demanding environments. The open-ended control cable interface allows for customizable connections, and its RoHS compliance underscores its adherence to industry standards for environmental safety.
