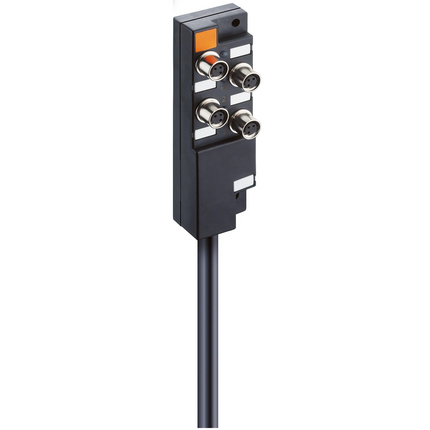

LioN-S passive, 4 ports, LED

The LioN-S passive module with four ports and LED indicators is a key component for effective I/O connectivity in industrial automation systems. Measuring 30 mm x 25.5 mm x 100 mm, this module offers a compact, durable design suitable for various applications. The I/O connections include M8 connectors with three poles and A-coding, providing a single I/O per port configuration. The module operates within a wide temperature range from -25°C to 70°C, making it suitable for various industrial environments. The black housing, made from PBT + ASA, ensures high durability and resistance to harsh conditions.

This LioN-S passive module features green LED status indicators for easy monitoring of the system supply. The actuator supply voltage ranges from 10 V DC to 30 V DC, with a nominal value of 24 V DC. Designed with protection degree IP67, it ensures resistance to dust and water, granted the appropriate connectors are used. The module supports a range of sensor types including PNP and wiring configurations for both input (2-, 3-, 4-wire) and output (2-, 3-wire) channels.

Ideal for industrial automation applications, the LioN-S passive module is RoHS, China RoHS, and CE compliant, and comes with UL and CSA approvals, ensuring it meets high standards for safety and environmental compliance. This makes it a reliable choice for engineers and technicians looking for robust I/O connectivity solutions.
