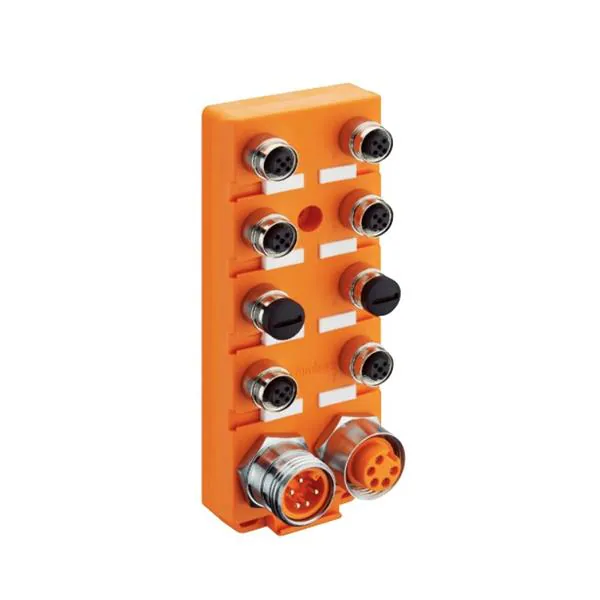

Passive DeviceNet distribution box
€171.01*
Prices excl. VAT plus shipping costs
Article number:0931 DNC 301
Manufacturer number:17158
EAN:04020841273391
Brand:Lumberg Automation
Minimum order quantity:1
Product information
The Passive DeviceNet distribution box is designed for efficient and reliable distribution of DeviceNet signals. It features a 7/8" bus-in/bus-out connection and is equipped with 8 M12 branches, each with 5 poles and A-coding. The box is crafted from durable plastic (PUR) with a bright orange housing and complies with the IP67 protection rating, ensuring its robustness and reliability in challenging environments. The unit is potted, enhancing its protection against environmental factors. Operating temperatures range from 0 °C to 60 °C, and it supports an actuator supply voltage range of 10 V DC to 30 V DC, with a nominal voltage of 24 V DC. This distribution box is RoHS compliant and CE certified, making it a dependable choice for industrial applications where safety and performance are paramount.
Downloads
Datasheet (EN)Specifications
| Actuator Supply Voltage (Nominal): | 24 V DC (SELV/PELV) |
|---|---|
| Actuator Supply Voltage (Range): | 10 V DC to 30 V DC |
| Ambient Temperature (Operation)*: | 0 °C to 60 °C |
| Ambient Temperature (operation), max: | 60 |
| Ambient Temperature (operation), max (#1): | Error |
| Ambient Temperature (operation), min.: | Error |
| Ambient Temperature (operation), min. (#1): | 0 |
| CE: | |
| Customer Specific Product: | |
| Depth: | 5.9843 in |
| Depth (#1): | 152 mm |
| Dimensions (W x H x D): | 60 mm x 38 mm x 152 mm |
| Fastening Torque (I/O Connection): | M12: 0,5 Nm |
| Fastening Torque (Power Connection): | 7/8": 1.5 Nm |
| Galvanically Isolated: | |
| Height: | 38 mm |
| Housing Color: | Orange |
| Housing Material: | Plastic, PUR |
| Input Wiring: | 2-, 3-, 4-wire |
| Item Description: | 0931 DNC 301 |
| Long Description (#1): | Passive DeviceNet distribution box, 7/8" bus-in/bus-out connection, 8 M12 branches |
| M12: | M12 |
| Part Number (#1): | 17158 |
| Potted: | |
| Product Family: | DeviceNet |
| Product Sub Family: | Classic |
| Protection Degree / IP Rating**: | IP67 |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| RoHS Compliant: | |
| System Power Supply Connection Note: | *do not connect / disconnect under voltage! |
| Width: | 60 mm |
| Width (#1): | 2.3622 in |
| uniek_nr: | aut17158 |
