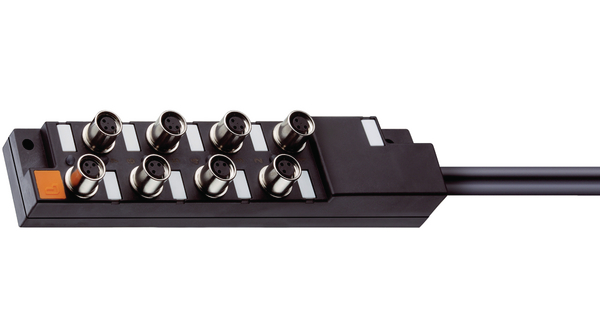

LioN-S passive, 8 ports
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:
ASBM 8 3-345/10 M
Manufacturer number:
934637875
EAN:
04001088022881
Brand:
Belden
Minimum order quantity:
1
Product information
The LioN-S passive, 8 ports module is designed to meet the demanding requirements of industrial environments. Featuring eight M8, 3-pole A-coded I/O connections, this module offers robust connectivity for a variety of sensors and actuators. The open-ended control cable interface allows for flexible installation. The housing is constructed from durable PBT + ASA material, offering superior resistance to environmental stress. With an IP67 protection rating, this module is highly resistant to dust and water intrusion, making it suitable for use in harsh conditions. It operates effectively in temperatures ranging from -25 °C to 70 °C. The module includes LED status indicators for system supply and port activities, providing clear visual diagnostics. Each port supports current up to 1.5 A, accommodating various industrial devices. This RoHS and China RoHS-compliant product ensures adherence to strict environmental standards.
Downloads
Datasheet (EN)Specifications
| Unique No.: | 934637875 |
|---|---|
| Galvanically Isolated: | |
| O-Ring Material: | FKM |
| Output Wiring: | 2-, 3-wire |
| Part Number (#1): | 934637875 |
| Pollution Degree: | 3 acc. to EN 60664-1, VDE 0110-1 |
| Height: | 25,5 mm |
| Housing Color: | Black |
| Housing Material: | PBT + ASA |
| Input Wiring: | 2-, 3-, 4-wire |
| Item Description: | ASBM 8 3-345/10 M |
| Long Description (#1): | LioN-S passive, 8 ports |
| Potted: | |
| System Power Supply Connection Note: | *do not connect / disconnect under voltage! |
| Width: | 30 mm |
| Width (#1): | 1.1811 in |
| Status Indicator (System Supply): | LED green |
| Status Indicator (Port): | Status Indicator (Port) |
| Product Sub Family: | LioN-S passive |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Protection Degree / IP Rating**: | IP67 |
| RoHS Compliant: | |
| Sensor Type: | PNP |
| CE: | |
| China RoHS-Compliant: | |
| Ambient Temperature (operation), min. (#1): | -25 |
| Ambient Temperature (operation), min.: | Error |
| Ambient Temperature (operation), max (#1): | Error |
| Actuator Supply Voltage (Nominal): | 24 V DC (SELV/PELV) |
| Actuator Supply Voltage (Range): | 10 V DC to 30 V DC |
| Ambient Temperature (Operation)*: | -25 °C to 70 °C |
| Ambient Temperature (operation), max: | 70 |
| Contact Base Material (#1): | CuSn |
| Customer Specific Product: | |
| Depth: | 5.7087 in |
| Depth (#1): | 145 mm |
| Dimensions (W x H x D): | 30 mm x 25,5 mm x 145 mm |
| Fastening Torque (Fixing Screw): | M4: 1 Nm |
| Fastening Torque (I/O Connection): | M8: 0.3 Nm |
| Current per Module: | max. 1,5 A |
| Current per Connector: | max. 1,5 A |
| Contact Bearer Material (#1): | PA |
