Single-Ended Cordsets

The G-Series Power Single-Ended Cordset is a high-performance connector designed for diverse power applications. Featuring a female, angled, 3-pin (2+PE) configuration, this cordset operates efficiently at 230 V AC/DC and up to 10 A. It comes with a robust PVC grey cable of 1.00 mm², ensuring reliable power transmission. The cordset offers exceptional versatility, being unshielded and designed with a central screw attachment type. It meets the stringent standards of DIN EN 61984 (VDE 0627) with an IP65 protection rating, ensuring durability and resistance to dust and water ingress. Additionally, the G-Series Power Cordset is built to withstand extreme temperatures ranging from -40°C to +90°C, making it suitable for various industrial environments. The high-quality materials used, including CuZn contacts and PA GF body, enhance the product's longevity and performance. Ideal for fixed or flexible installation, this cordset is perfect for powering machinery and equipment in demanding conditions.

The G-Series Power Single-Ended Cordset is a robust and reliable connection solution, featuring a male, angled, 4-pin (3+PE) configuration with a grey body. Designed to operate at 230 V AC/DC with a rated current of 10 A, this cordset is equipped with a PVC grey cable of 0.75 mm² gauge, ensuring durability and flexibility. The connector is unshielded and attaches with a central screw. Rated for up to 250 V AC/DC and 4.0 kV impulse voltage, this cordset meets DIN EN 61984 (VDE 0627) standards and offers IP65 protection when properly installed. This cordset provides reliable electrical connection in harsh environments, with a wide operating temperature range from -40°C to +90°C. Its durable construction includes CuZn contacts with Cu/Sn plating, a PA GF body, and meets UL 94 HB flammability standards. It’s suitable for various industrial applications where high performance and durability are critical. Whether in fixed or flexible installations, the G-Series Power Single-Ended Cordset is designed to meet demanding requirements. Applications include industrial automation systems, machinery, and other electrical and electronic devices requiring secure and stable power connections. The cordset’s robustness and compliance with significant safety standards make it ideal for use in environments subjected to harsh conditions, ensuring long-term reliability and performance.

The G 2 KW 1 F is part of the G-Series Power Single-Ended Cordset range. It features a female, angled, 2-pin design with a black body, providing a reliable connection for your electrical needs. The unit supports a voltage rating of 50 V AC/DC and a current rating of 10 A, making it suitable for a variety of power applications. The cordset comes with a black EM2 cable of 0.75 mm² conductor size, ensuring efficient power transmission. Crafted with precision, it adheres to DIN EN 61984 (VDE 0627) standards and boasts an IP65 protection rating, offering durability in challenging environments.

The G-Series Power Single-Ended Cordset is designed for high-performance connectivity in demanding applications. Featuring a male, angled 3-pin configuration (2+PE) and a robust grey body, this cordset is capable of handling 230 V AC/DC and a maximum current of 10 A. The attached grey PVC cable has a conductor size of 0.75 mm², ensuring reliable power transmission. This product is part of the Hirschmann G Series and is built to meet DIN EN 61984 standards, offering an IP65 protection rating when properly mounted and locked. The ambient operating temperature range from -40°C to +90°C makes it suitable for various environmental conditions. Constructed with high-quality materials such as CuZn for contact base and PA GF for molded body, this cordset provides durability and longevity. The cordset is specifically designed for fixed and flexible installations with minimal bending radii and is RoHS compliant. Ideal for industrial automation, machinery, and power distribution applications.

The G 2 KW 1 F is a G-Series Power Single-Ended Cordset designed for reliable power connectivity. It features a female, angled, 2-pin connector with a black body, providing robust performance at 50 V AC/DC and 10 A. The cordset is equipped with a durable EM2 black cable with a conductor size of 0.75 mm², ensuring reliable signal transmission. This product is rated IP65, ensuring protection against dust and water ingress. Designed in compliance with DIN EN 61984 and DIN EN 60664-1 standards, it is suitable for various industrial applications. The G 2 KW 1 F is also RoHS compliant and has a temperature range of -40°C to +90°C, making it versatile for use in harsh environments.

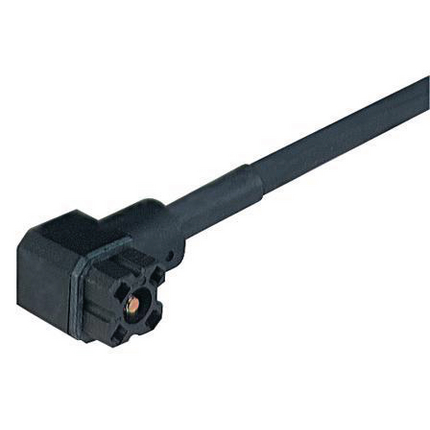

The G 4 KW 1 F black is a high-quality G-Series Power Single-Ended Cordset from Hirschmann. This robust cordset consists of a 4-pin female connector in an angled, black body. It is rated for 50V AC/DC with a maximum current of 10 A. The cable is crafted from durable PUR and has a conductor size of 0.75 mm² with a 7.2 mm diameter. Designed for both fixed and flexible installations, it supports multiple mating cycles and offers a significant protection degree with an IP65 rating when properly mounted. Suitable for operating in temperatures from -40°C to +90°C, this cordset is ideal for diverse industrial applications. Additionally, it complies with several standards, ensuring safety and reliability.

The G 4 KW 1 F black is part of the G-Series Power Single-Ended Cordset, specifically designed for industrial applications requiring consistent and reliable power connections. This cordset features a 4-pin female connector with an angled design and a robust black body. Rated for 50V AC/DC and supporting up to 10A, it ensures dependable performance in demanding environments. The cordset comes with a PUR black cable, providing excellent abrasion resistance and durability, with a conductor size of 0.75 mm². Its unshielded design and the IP65 protection rating make it suitable for various industrial operations, ensuring it remains impermeable to dust and water when mounted and locked with compatible connectors.

The G-Series Power Single-Ended Cordset is a reliable choice for your power connection needs. This product features a male, angled, 3-pin connector housed in a robust grey body. It operates at a voltage of 50 V AC/DC with a current capacity of 4 A. The cordset is equipped with a grey PVC cable, having a conductor size of 0.25 mm², ensuring stable and efficient power transmission. Built to withstand tough conditions, it has an ambient operating temperature range of -40°C to +90°C and offers protection with an IP65 rating when properly installed and locked with compatible connectors from Hirschmann or Lumberg Automation. The material composition includes a durable PA GF molded body and contact bearer, ensuring longevity and reliability. This cordset is compliant with RoHS standards, making it environmentally friendly. Ideal for power connections in various industrial applications.

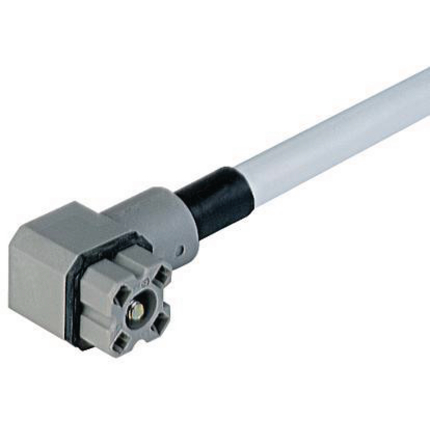

The G-Series Power Single-Ended Cordset is a robust and reliable component designed for efficient power connectivity. Featuring a female, angled, 4-pin (3+PE) connector, this cordset is ideal for various industrial applications. It has a durable grey body that supports an operating voltage of 230 V AC/DC and a rated current of 10 A. The grey PVC cable has a conductor size of 1.00 mm², ensuring efficient electrical transmission. This unshielded cordset is manufactured to DIN EN 61984 (VDE 0627) standards with IP65 protection, making it suitable for harsh environments. With a temperature range of -40°C to +90°C and a flammability class UL 94 HB, this cordset is built for safety and longevity. The contact base material is made of CuZn, with Cu/Sn plating and PA GF molded body, ensuring excellent conductivity and durability. Suitable for applications in industrial environments, automation systems, and critical power connections.

The G 4 KW 1 F grey is part of the G-Series Power Single-Ended Cordsets, designed for various industrial applications requiring reliable power connections. This cordset features a female, angled connector with 4 pins, housed in a durable grey body. It operates at a voltage of 50V AC/DC and can handle up to 10 A of current. The connector is made with high-quality materials including a CuZn base for contacts, PA GF for the contact bearer, and a PVC jacket for the cable, ensuring durability and long-lasting performance. The cable itself has a 0.75 mm² conductor size and is 7.4 mm in diameter, providing excellent flexibility and minimal bending radii for both fixed and flexible installations. One of the primary benefits of using the G 4 KW 1 F grey cordset is its robustness and reliability in demanding environments. It offers an IP65 protection rating, ensuring resistance against dust and low-pressure water jets from any direction. This makes it suitable for a wide range of industrial applications, particularly where environmental factors may be a concern. The cordset also complies with various safety and environmental standards, including RoHS compliance, making it a safe and eco-friendly choice. This cordset is ideal for use in automation, machinery, and other industrial applications where secure and reliable power connections are needed. Its angled female design allows for more flexible placement in tight spaces, and its compatibility with Hirschmann and Lumberg Automation connectors enhances its versatility. Accessories, such as a central screw made of stainless steel (item #732750003), can be ordered separately to complement the installation.

The G 4 KW 1 F grey is part of the G-Series Power Single-Ended Cordset family, featuring an angled female 4-pin connector with a grey body. It is designed to handle voltages of up to 50V AC/DC and currents of up to 10 A. The connector is made from a combination of CuZn with a Cu/Sn plating, encased in a grey PA GF molded body. This unit is equipped with a 0.75 mm² PVC grey cable, ensuring a robust and durable connection. Suitable for applications requiring secure and reliable connections in industrial environments, this cordset operates seamlessly within temperature ranges of -40°C to +90°C, and meets the IP65 degree of protection when appropriately mounted and locked with compatible connectors. Its compact and angled design allows for easy and versatile installation in varying setups, ensuring longevity and consistent performance.
