Receptacles
_1327_category_image.png)

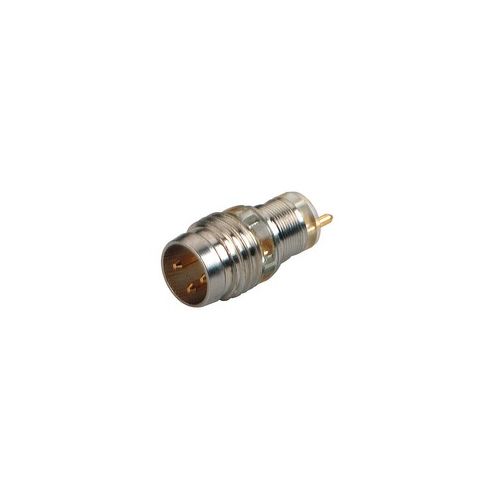

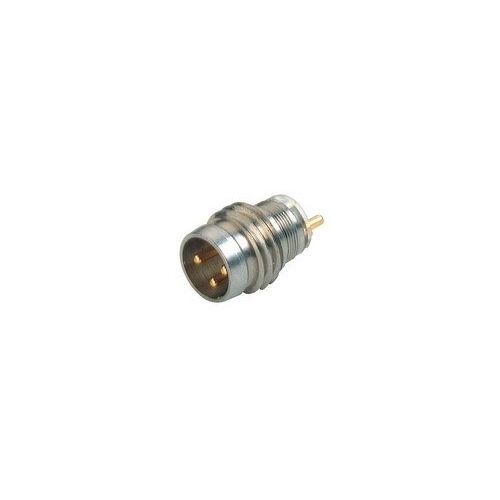

ELST 3308 RV LM
M8 Insert Sensor/Actuator Receptacle Connector
The M8 Insert Sensor/Actuator Receptacle Connector is a high-quality male connector designed for a variety of industrial applications. Featuring an M8 mating side and print contacts on the connecting side, this 3-pin, A-coded, unshielded connector is equipped with light indicator windows for easy status monitoring. Its metallic grey housing ensures durability and resistance to wear. Operating at a maximum voltage of 50 AC / 60 DC and a current of 4 A, this connector provides reliable performance. It is rated for up to 100 mating cycles and offers excellent insulation resistance.
This connector is ideal for use in automation technology, machinery, and industrial sensors. Benefits include easy attachment with snap- and screw-locking mechanisms, and high levels of protection with an IP67/IP68 rating when properly mounted. Made from high-quality materials such as CuZn with Cu/Au and Cu/Cr plating, this connector guarantees long-lasting service even under harsh conditions. It complies with RoHS and environmental standards, making it a safe and environmentally friendly choice.
Applications for this connector include sensor/actuator interfacing, signal transmission in automated systems, and use in industrial machinery. It is particularly suitable for environments requiring high reliability and durability, such as manufacturing plants and outdoor installations.
On Request
RSMEJ 3
M8 Insert Sensor/Actuator Receptacle Connector
The M8 Insert Sensor/Actuator Receptacle Connector is designed for secure and reliable connections in automation systems. The male connector features a translucent ring and uses an M8 Snap-In mechanism on the mating side, paired with solder contacts on the connecting side. This 3-pin, A-coded connector, unshielded and featuring a metallic grey housing, ensures optimal performance at 50 AC / 60 DC with a 4 A rating (24 AWG). Its robust construction adheres to IEC 61076-2-104 standards, making it suitable for various industrial applications with operational temperatures ranging from -25°C to +85°C. The connector's IP65 protection rating ensures resistance against dust and water when properly installed.
€1.75
per item

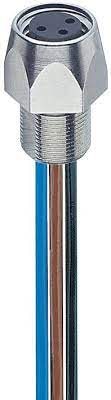

RKMF 5/0,5 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is a reliable and versatile connection solution. This female, front-mount connector features an M8 screw on the mating side and stranded wires on the connecting side. The connector is designed with 5 pins, is B-coded, and provides unshielded connectivity. It has a robust metallic grey housing that ensures secure and stable connections, with a rated voltage of 30 V AC/DC and a rated current of 3 A. The product meets IEC 61076-2-104 standards and boasts a high level of durability with an operating temperature range of -25 °C to +85 °C.
€17.26
per item
RKMF 4/1 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is a highly reliable female, front-mount connector designed for sensor and actuator applications. It features an M8 screw on the mating side and stranded wires on the connecting side, accommodating a 4-pin configuration with A-coding. Encased in a metallic grey housing, the connector is rated for 30 V AC/DC and a maximum current of 4 A. Its design ensures a robust connection with an IP67 protection degree, making it ideal for industrial environments where durability and reliability are crucial. With its unshielded design, this connector is perfect for applications where EMI protection is not a concern, providing straightforward installation with its screw-locking mechanism. Suitable for various installation conditions, the connector can operate within a temperature range of -25 °C to +85 °C, ensuring adaptability across different settings. Its high insulation resistance and low contact resistance enhance its efficiency, making it an excellent choice for automation and control systems.
€15.11
per item
RSMF 8/0,5 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is designed to provide reliable and efficient connectivity in sensor and actuator applications. It features a male connector with an M8 screw on the mating side and stranded wires on the connecting side for secure and stable attachment. This connector comes with 8 pins, A-coded, and is unshielded. The metallic grey housing provides durability and resistance to environmental factors, suitable for both 30 V AC/DC and 1.5 A operations. It offers a maximum contact resistance of ≤10 mOhm and high insulation resistance over 10^9 Ohm, ensuring reliable performance. The connector meets the IEC 61076-2-104 design standard with an IP67 protection degree when properly mounted and locked. It also features CuZn contact base material with Cu/Au plating and a CuZn housing with Cu/Ni plating, ensuring durability and longevity. This connector is potted, making it ideal for a variety of industrial applications where environmental exposure is a concern.
€18.88
per item

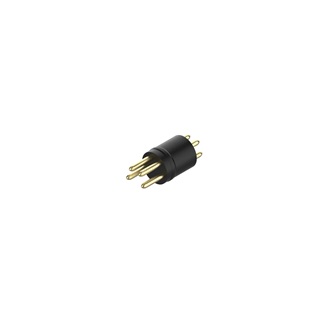

RSMEK 4
M8 Insert Sensor/Actuator Receptacle Connector
M8 Insert Sensor/Actuator Receptacle Connector: Male, insert, M8 - mating side, print contacts - connecting side, 4-pin, A-coded, unshielded, black body, 30 V AC/DC, 4 A
€1.65
per item
RSMF 8/0,1 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is a reliable male receptacle designed for front mounting with an M8 screw on the mating side and stranded wires on the connecting side. It features 8 pins with A-coding, is unshielded, and housed in a robust metallic grey casing. The connector operates efficiently at 30 V AC/DC with a current rating of 1.5 A. It has high contact resistance (≤ 10 mOhm) and excellent insulation resistance (> 10^9 Ohm). The IP67 rating ensures its durability in harsh environments, making it suitable for industrial automation applications. The standard complies with IEC 61076-2-104 and comes with various cable length options.
On Request

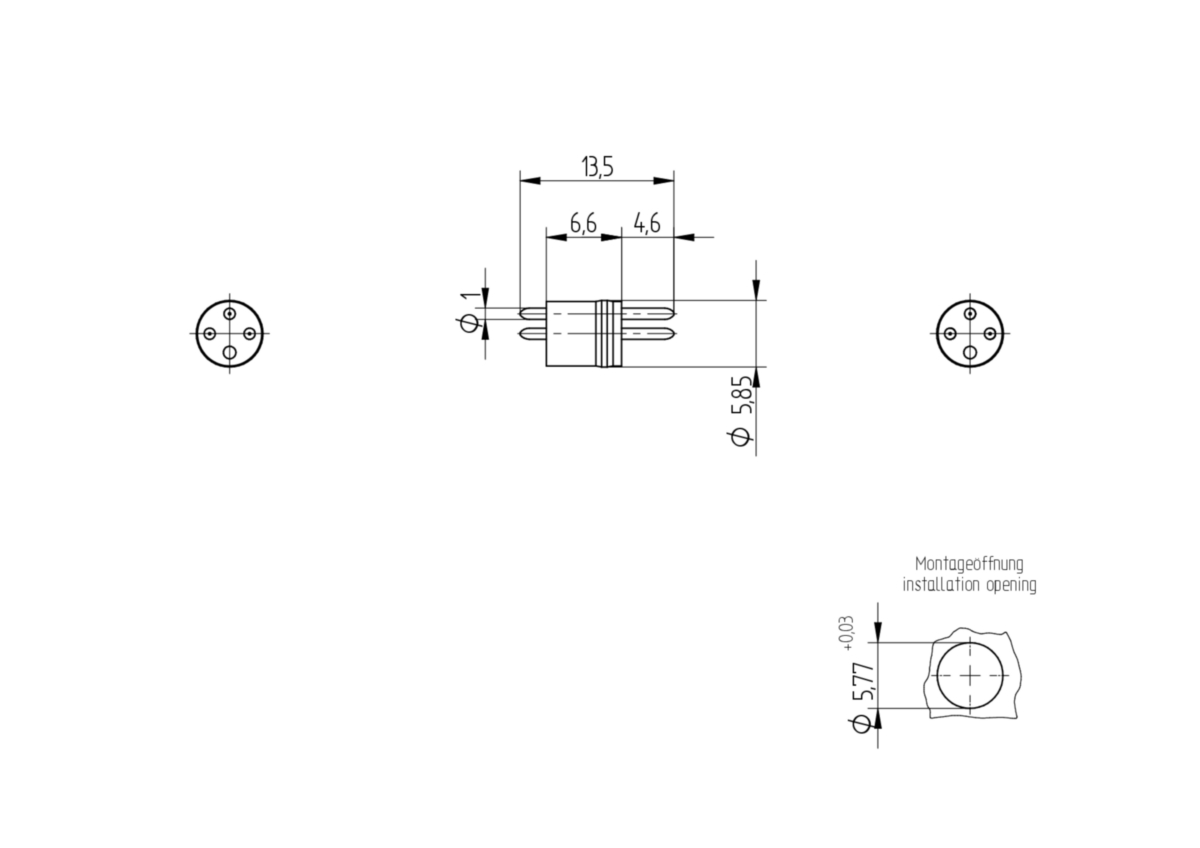

RSMEK 3 L
M8 Insert Sensor/Actuator Receptacle Connector
M8 Insert Sensor/Actuator Receptacle Connector: Male, insert with ventilation hole, M8 - mating side, print contacts - connecting side, 3-pin, A-coded, unshielded, black body, 50 AC / 60 DC, 4 A
€1.37
per item

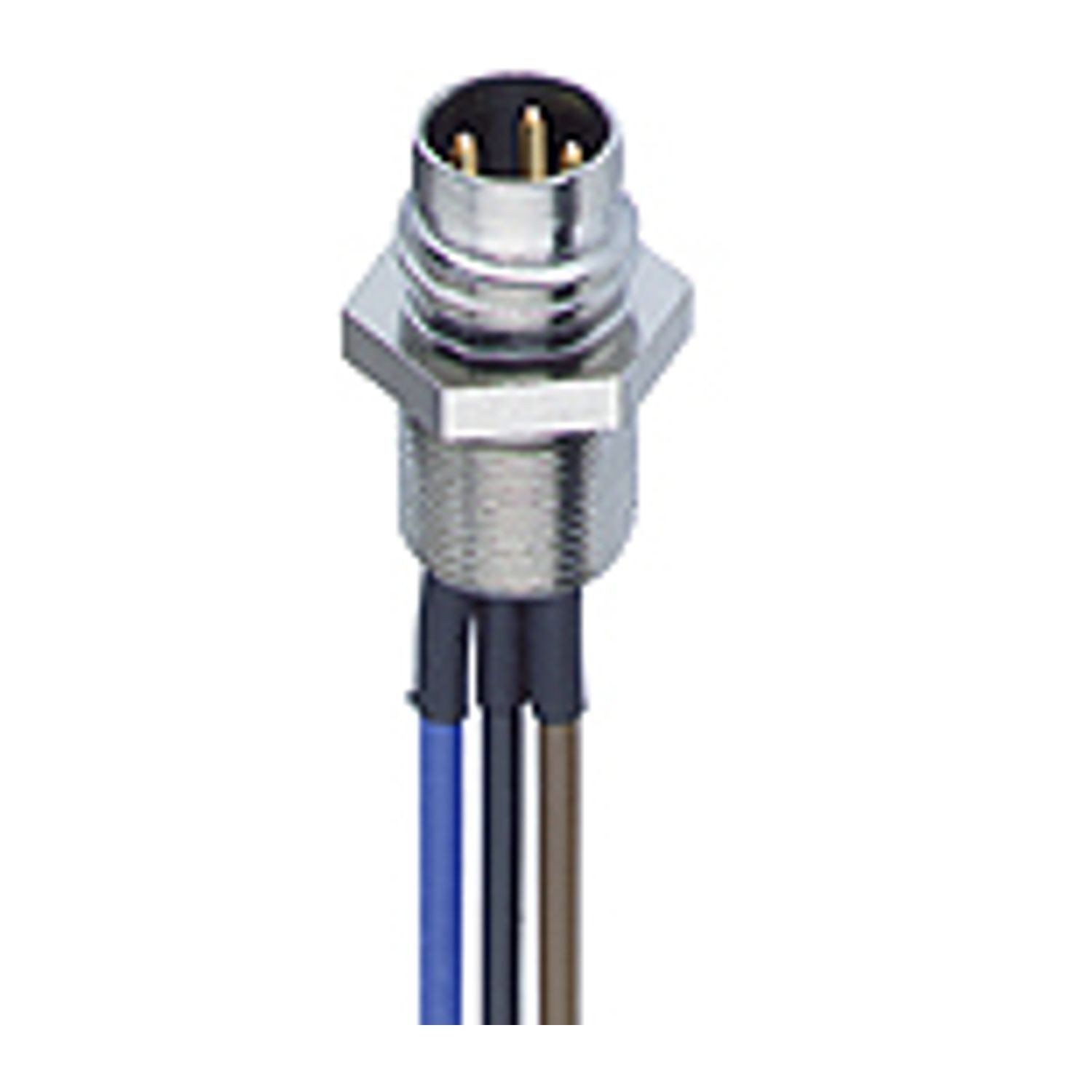

RSMF 3/0,6 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is a high-performance male connector designed for industrial environments. It features a front-mount design with an M8 mating side and stranded wires connecting side, ensuring reliable performance in demanding settings. With its 3-pin, A-coded configuration and metallic grey housing, it offers excellent conductivity and durability. The connector supports 50 AC / 60 DC power, withstanding up to 4 A, making it suitable for various automation tasks. It also features snap- and screw-locking mechanisms for secure attachment.
The benefits of this connector include its high resistance to environmental factors, thanks to its unshielded, robust construction that meets IP67 protection standards. It is crafted from quality materials, including a CuZn contact base and Cu/Au plating, ensuring low contact resistance and superior insulation resistance of more than 10⁹ Ohm.
This connector is versatile in application, ideal for sensor and actuator connections in automation systems. Its compliance with IEC 61076-2-104 design standards and UL ratings also makes it a reliable choice for global markets, suited for temperatures ranging between -25 °C to +85 °C.
€9.73
per item
ELST 3308 RV LH
M8 Insert Sensor/Actuator Receptacle Connector
The M8 Insert Sensor/Actuator Receptacle Connector is a male connector designed with light indicator windows, making it ideal for monitoring and diagnostics in industrial environments. It is built for durability with a metallic grey housing and features a mating side of M8 and a connecting side with solder contacts. This 3-pin, A-coded connector operates at 50 AC / 60 DC with a current rating of 4 A (24 AWG) and is unshielded. The robust construction includes a CuZn contact base material with Cu/Au plating, ensuring reliable performance and longevity. The connector meets IEC 61076-2-104 standards and offers IP67 and IP68 protection ratings when mounted and locked correctly, making it suitable for harsh environments. The snap- and screw-locking mechanism provides secure attachment, while the transparent PA contact bearer allows easy visual inspection.
€4.15
per item
RSMF 8/0,2 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is a high-quality male connector, designed for front mounting. It features an M8 screw at the mating side and stranded wires for the connecting side. With an 8-pin, A-coded configuration, the connector is unshielded and housed in a metallic grey casing. It operates effectively at 30 V AC/DC with a rated current of 1.5 A. The connector is made from durable materials, including a silver-colored CuZn housing and a robust PA contact bearer. It is designed to withstand ambient temperatures from -25 °C to +85 °C and meets an IP67 protection rating, ensuring resistance to dust and water. This connector is ideal for a wide range of sensor and actuator applications, offering reliable performance in industrial environments.
On Request
RKMF 3/1 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is an essential component for connecting sensors and actuators in various industrial applications. This female connector is designed for front mounting, utilizing an M8 screw for secure mating and stranded wires for the connecting side. Featuring a 3-pin, A-coded configuration, it is unshielded with a metallic grey housing, suitable for environments requiring an operational voltage of 50 AC / 60 DC and a current of 4A. Its robust build is enhanced with a CuZn contact base and Cu/Au plating, making it reliable for up to 100 mating cycles.
This connector provides several benefits, including a high insulation resistance of over 10^9 Ohm and a contact resistance of ≤ 10 mOhm, ensuring effective transmission and minimal loss of signal quality. The operating temperature range supports diverse applications from -25 °C to +85 °C, with an IP67 rating when combined with compatible connectors, offering excellent protection against dust and water ingress.
It is ideal for use in demanding environments where reliability is crucial, such as in automation technology, machinery, and transportation industries. The connector supports seamless integration with other devices due to its standard M8 design conforming to IEC 61076-2-104, ensuring compatibility and ease of use.
€13.51
per item
RKMF 3/2 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is a robust solution designed for seamless integration in industrial automation systems. Featuring a female, front mount design, it is equipped with an M8 screw on the mating side and stranded wires on the connecting side. This 3-pin, A-coded connector offers reliability with its unshielded, metallic grey housing, ensuring secure signal transmission for applications requiring up to 50 AC and 60 DC volts with a maximum current of 4 A.
The connector's design allows for easy and secure connections thanks to its screw-locking mechanism. It boasts a high contact resistance of ≤ 10 mOhm and superb insulation resistance of over 10^9 Ohms, making it suitable for harsh environments. With an operating temperature range from -25°C to +85°C and an IP67 protection rating, it guarantees durability and longevity, even in challenging conditions.
Ideal for sensor and actuator interface, the connector fits perfectly in automation tasks, ensuring reliable data and power connections. Its applications range from industrial machinery to automation equipment, providing installation flexibility with up to 100 mating cycles.
€14.63
per item
ELST 4408 RV LH
M8 Insert Sensor/Actuator Receptacle Connector
The M8 Insert Sensor/Actuator Receptacle Connector is a high-quality male connector designed for sensor and actuator applications. Featuring a metallic grey housing, this M8 connector includes light indicator windows and solder contacts on the connecting side. It is a 4-pin, A-coded connector, providing efficient electrical connections for a variety of industrial purposes. Operating at 30 V AC/DC and 4 A (24 AWG), the connector ensures reliable performance and durability.
Benefits of this connector include its robust construction with unshielded design and ease of installation using snap- and screw-locking mechanisms. The inclusion of light indicator windows facilitates easy monitoring of connection status. Additionally, its IP67 and IP68 ratings (when properly mounted and locked) ensure protection from dust and prolonged water immersion, making it suitable for harsh environments.
This M8 connector is widely used in industrial automation, manufacturing, and sensor-actuator connectivity where reliable and secure electrical connections are crucial. The high-quality materials used, including CuZn base and housing with Cu/Au plating, ensure long-lasting performance under varying conditions. It’s compliant with relevant IEC standards and is RoHS compliant, making it a safe and environmentally friendly choice.
€4.74
per item

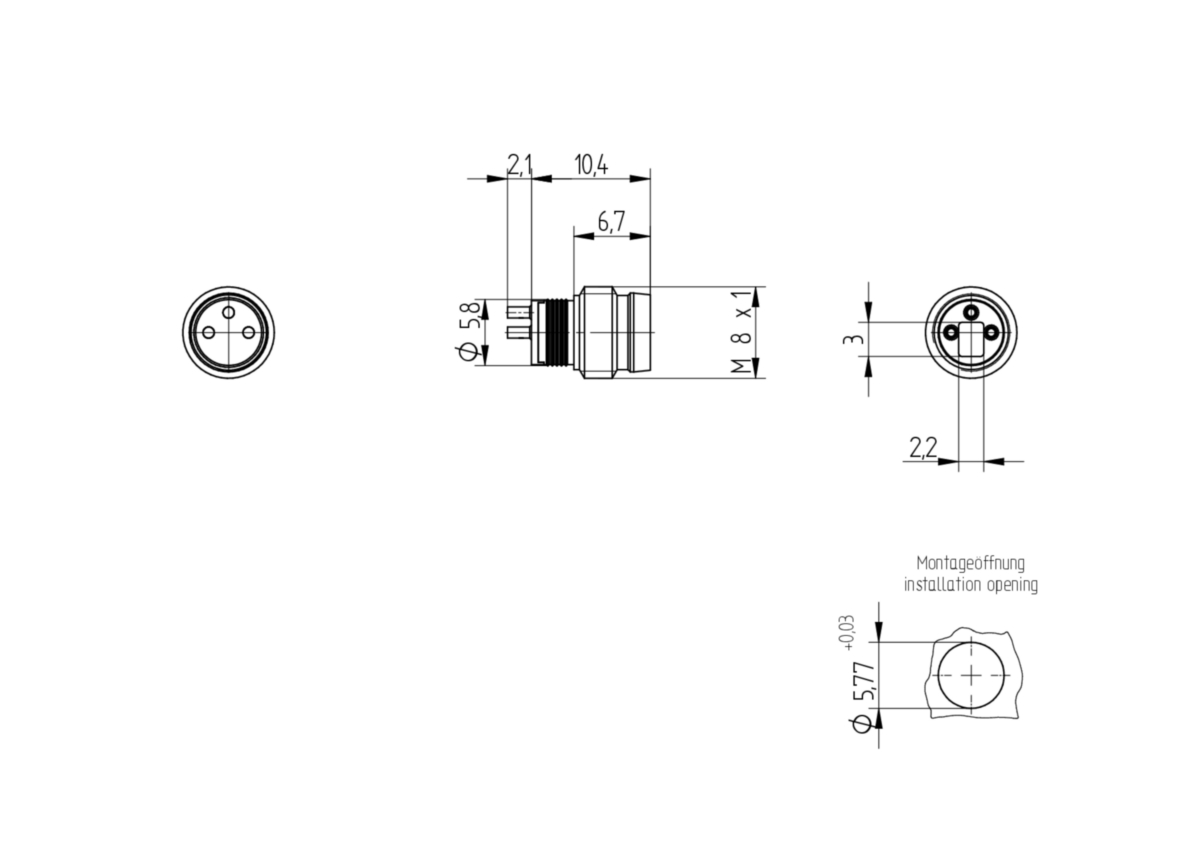

RSMESD 3
M8 Insert Sensor/Actuator Receptacle Connector
M8 Insert Sensor/Actuator Receptacle Connector: Male, insert, M8 - mating side, solder contacts - connecting side, 3-pin, A-coded, unshielded, metallic grey housing, 50 AC / 60 DC, 4 A (24 AWG)
€3.10
per item
RSMED 5
M8 Insert Sensor/Actuator Receptacle Connector
The M8 Insert Sensor/Actuator Receptacle Connector is designed for secure and reliable sensor-actuator connectivity. Featuring a 5-pin male insert, it is B-coded and unshielded, housed in a durable metallic grey casing. The connector supports a rated voltage of 30 V AC/DC and a current of 3 A (24 AWG). Its mating side supports M8 with solder contacts on the connecting side, ensuring robust connections for industrial applications. The connector is compliant with IP65, IP67, and IP69K protection standards, making it suitable for harsh environments. The connector is made from high-quality materials including CuZn with Cu/Ni plating, meeting IEC 61076-2-104 standards.
€5.44
per item

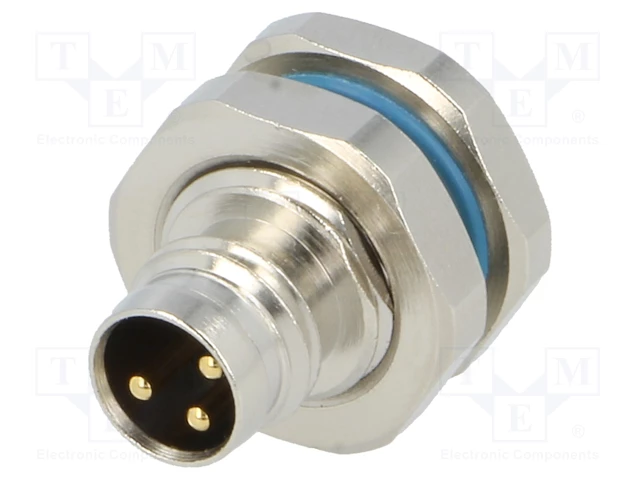

RSMHL 3/S 5,5
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is designed for robust and reliable connections in various industrial applications. This male connector features a rear mount with M8 mating on the connection side, and print contacts for efficient connectivity. It has 3 pins and is A-coded. The unshielded design comes in a metallic grey housing, offering a compact form factor. This connector supports a rated voltage of 50 AC / 60 DC and a current rating of 4A, making it ideal for a range of sensor and actuator connections. It is constructed with high-quality CuZn materials with a nickel-plated finish for enhanced durability and is compliant with IEC 61076-2-104 standards. Its IP67 rating ensures protection against dust and temporary submersion in water, suitable for use in harsh environments.
€8.73
per item

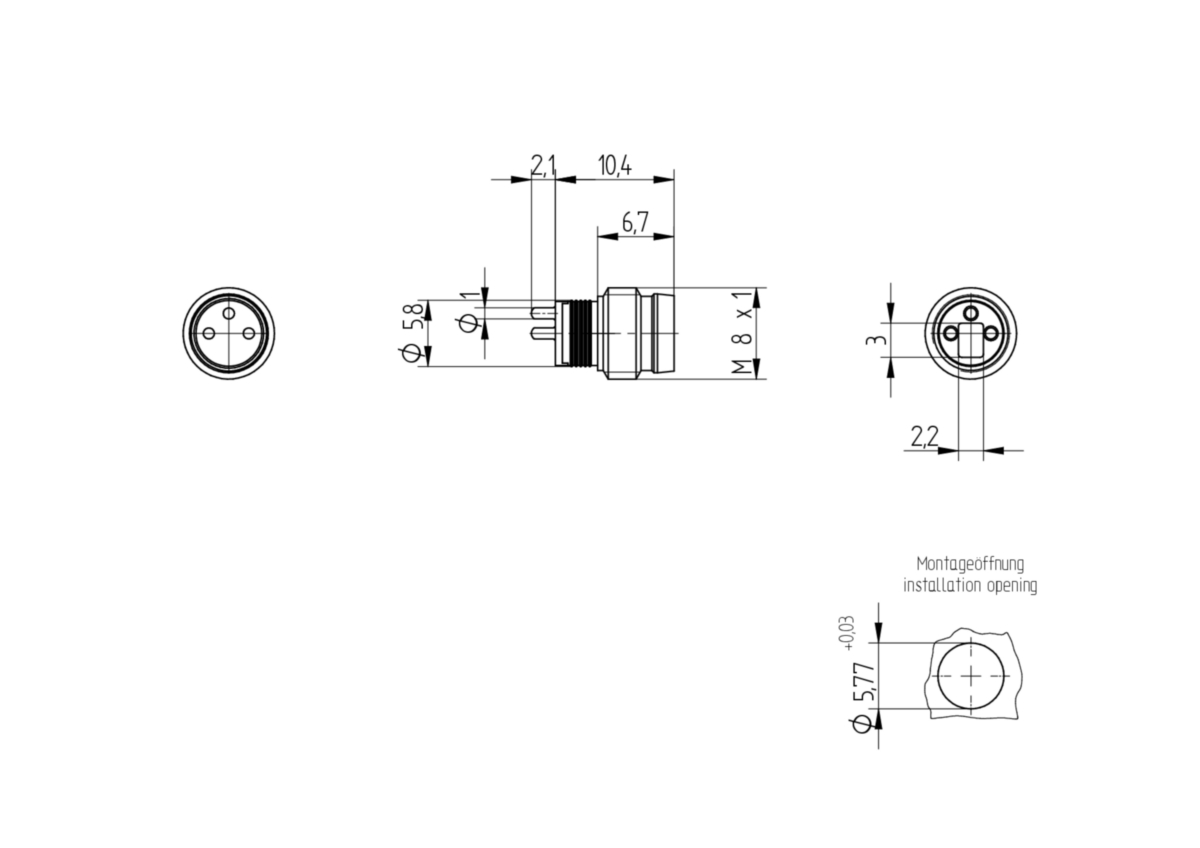

RSMESB 3
M8 Insert Sensor/Actuator Receptacle Connector
M8 Insert Sensor/Actuator Receptacle Connector: Male, insert, M8 - mating side, print contacts - connecting side, 3-pin, A-coded, unshielded, metallic grey housing, 50 AC / 60 DC, 4 A
€3.52
per item
ELST 3308 RV KM
M8 Insert Sensor/Actuator Receptacle Connector
The M8 Insert Sensor/Actuator Receptacle Connector is designed for reliable and efficient connections in sensor and actuator applications. This male connector features an M8 mating side and print contacts connecting side, providing a stable 3-pin connection. Its A-coded, unshielded, metallic grey housing ensures durability and robust performance under various conditions. With a rated voltage of 50 AC / 60 DC and a 4 A current rating, it guarantees optimal signal integrity. The connector is designed to handle up to 100 mating cycles and operates within an ambient temperature range of -25 °C to +90 °C, conforming to IEC 61076-2-104 standards. Its protection degree of IP67/IP68 ensures it is dust-tight and can withstand submersion in water, making it ideal for harsh environments.
€3.05
per item

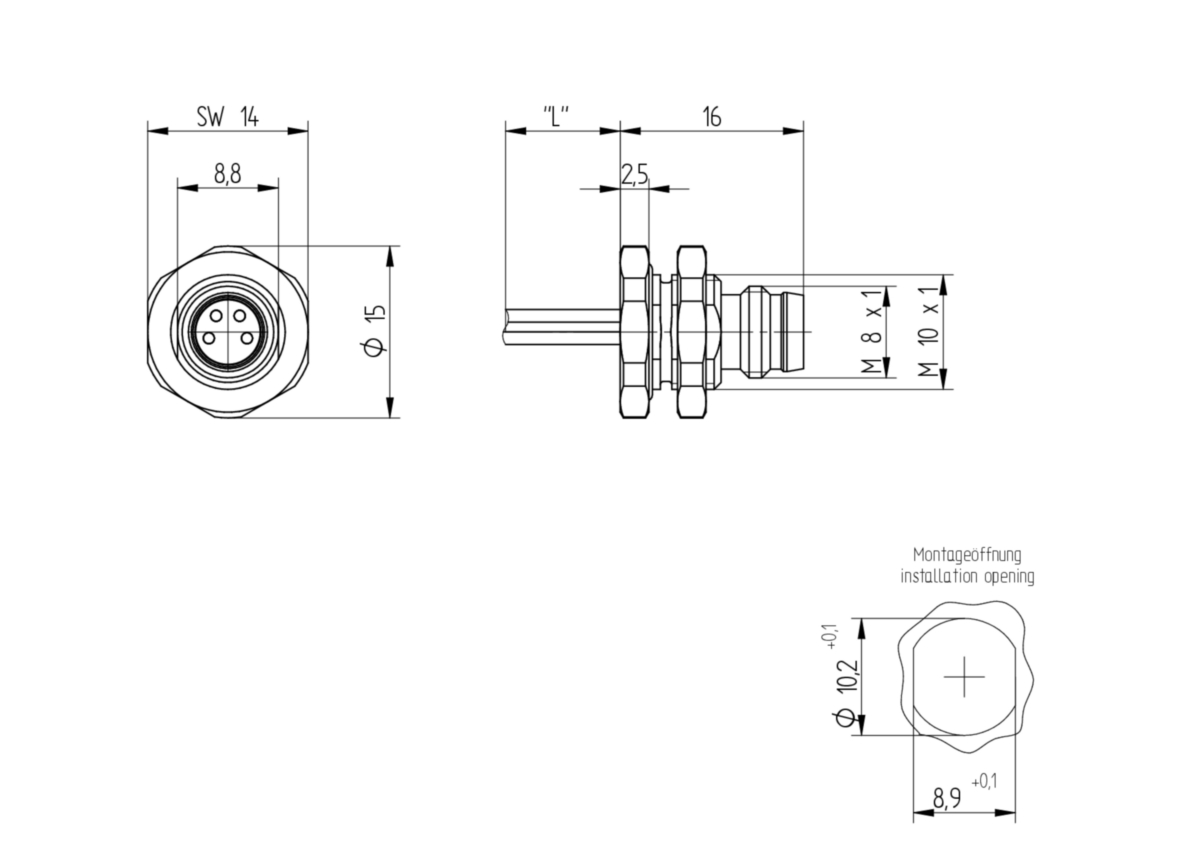

RSMH 4/0,5 M
M8 Standard Sensor/Actuator Receptacle Connector
M8 Standard Sensor/Actuator Receptacle Connector: Male, rear mount, M8 - mating side, stranded wires - connecting side, 4-pin, A-coded, unshielded, metallic grey housing, 30 V AC/DC, 4 A
€13.88
per item
RSMF 4/0,5 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is a robust male connector, designed for front mounting with an M8 mating side and stranded wire connecting side. It features a 4-pin, A-coded setup that ensures secure connectivity for various applications. The unshielded metallic grey housing withstands voltages up to 30 V AC/DC and currents up to 4 A, making it suitable for both industrial and automation environments. Its durability is ensured with features such as high resistance to contact and insulation, maintaining optimal performance across varying temperatures (-25°C to +85°C) and up to 100 mating cycles. The connector is designed under IEC 61076-2-104 standards, providing IP67 protection, making it ideal for challenging conditions involving dust and moisture.
€11.01
per item
RSMF 3/1,40 M
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is a high-quality front mount connector designed for efficient and reliable connections. This male connector features an M8 mating side and stranded wires on the connecting side. It has three pins and is A-coded, ensuring secure and stable connections in sensors and actuators. The connector is unshielded and comes in a robust metallic grey housing. It is rated for 50 AC/60 DC and can handle up to 4A of current, making it suitable for various industrial applications.
€10.65
per item

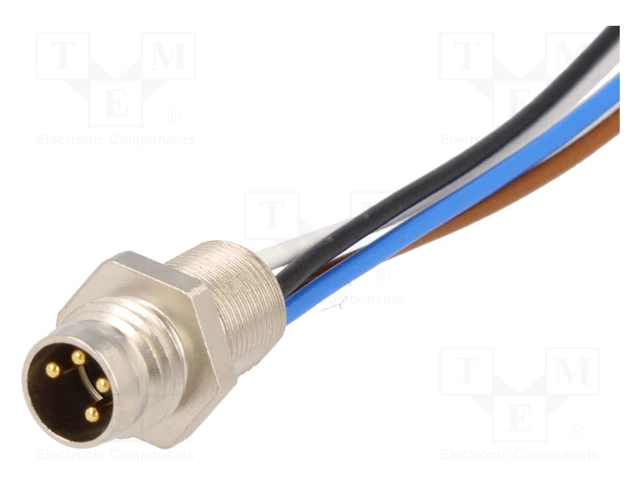

ELST 4408 RV FM 805
M8 Standard Sensor/Actuator Receptacle Connector
The M8 Standard Sensor/Actuator Receptacle Connector is an essential component for connecting sensors and actuators, designed with male, front mount features. It has an M8 mating side and stranded wires on the connecting side. The connector includes a 4-pin A-coded configuration, making it suitable for various industrial applications. With a robust metallic grey housing, this unshielded connector can handle up to 30 V AC/DC and has a rated current of 4A. Additionally, it meets the IEC 61076-2-104 standard, ensuring reliable performance. With a thread size of M8x0.5 and an IP67/IP68 protection rating, this connector is ideal for demanding environments. Its compact yet durable design makes it perfect for use in sensor and actuator networks.
€11.17
per item
