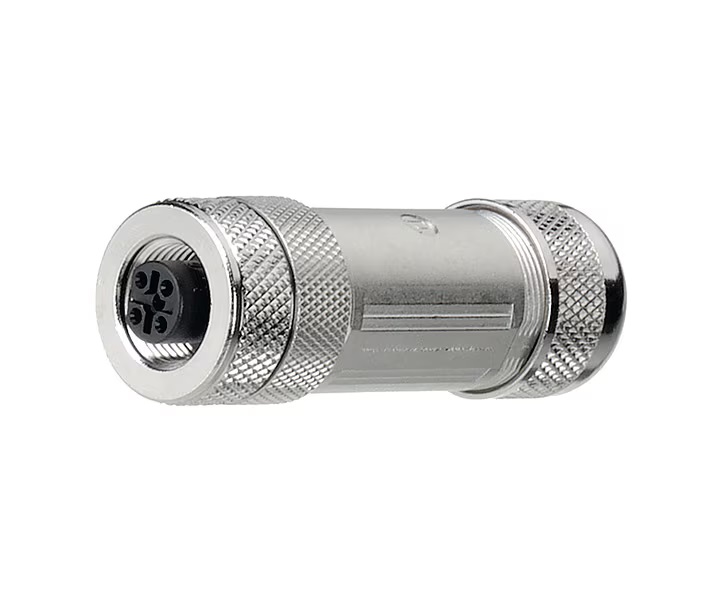

M12 Field attachable D-coded PROFIBUS female

The PROFIBUS Field Attachable Connector 0976 PFC 101 is a high-quality M12 female connector equipped with threaded joints and shieldable options. This model accommodates up to 5 poles with B coding, making it particularly suitable for Profibus signal cables. The connector boasts a durable design with a GD-ZnAl housing, pre-coppered and nickel-plated surfaces, and PBT inserts, ensuring long-term reliability and performance. The screw terminals allow for straightforward assembly, providing a secure and stable connection. With an IP67 / NEMA 6P degree of protection, the connector is well-suited for challenging environmental conditions. It operates efficiently within a temperature range of -25°C to +90°C. This product is designed to accommodate cable diameters between 4.0-9.0 mm, with a maximum connectable conductor size of 0.75 mm².
