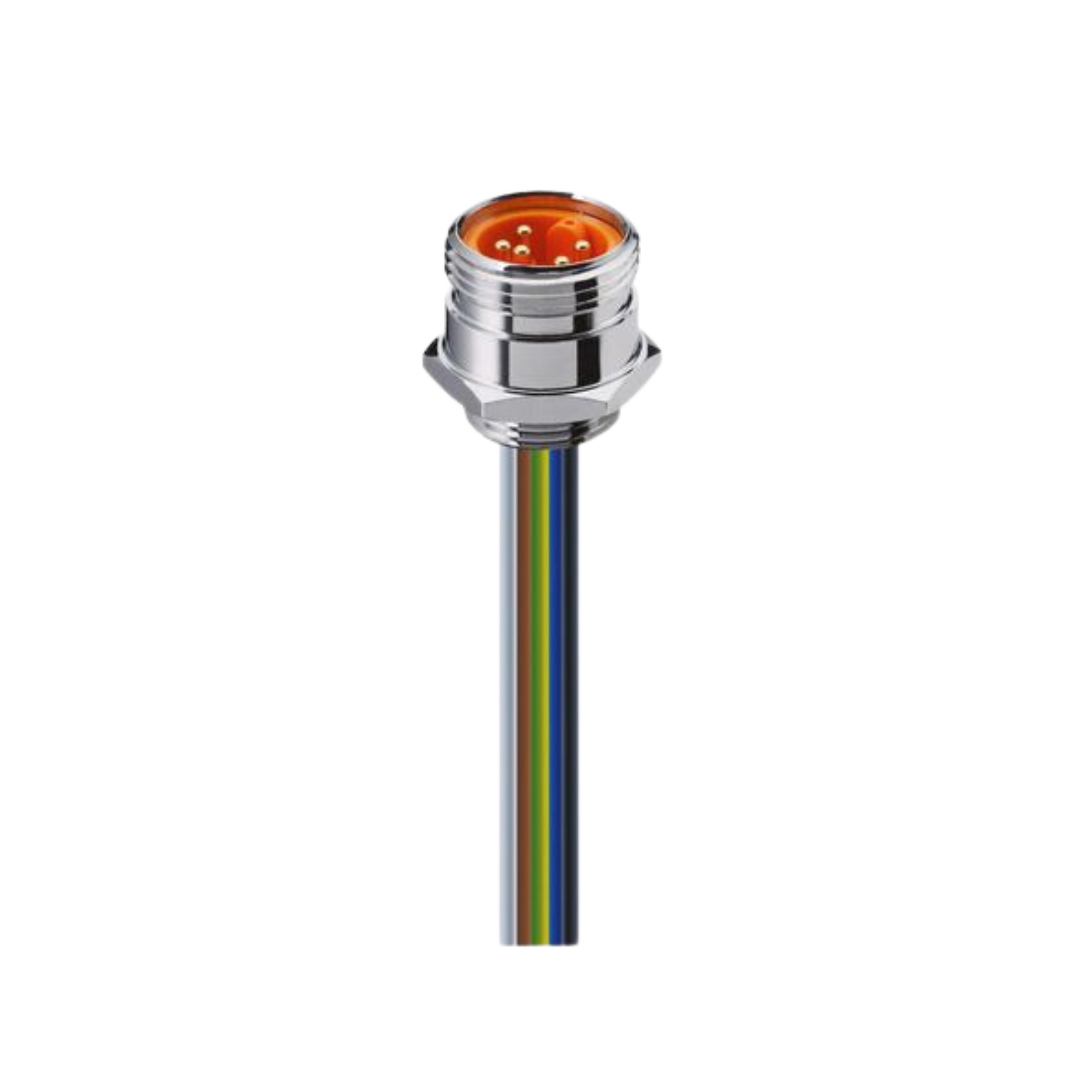

7/8" Receptacle Male

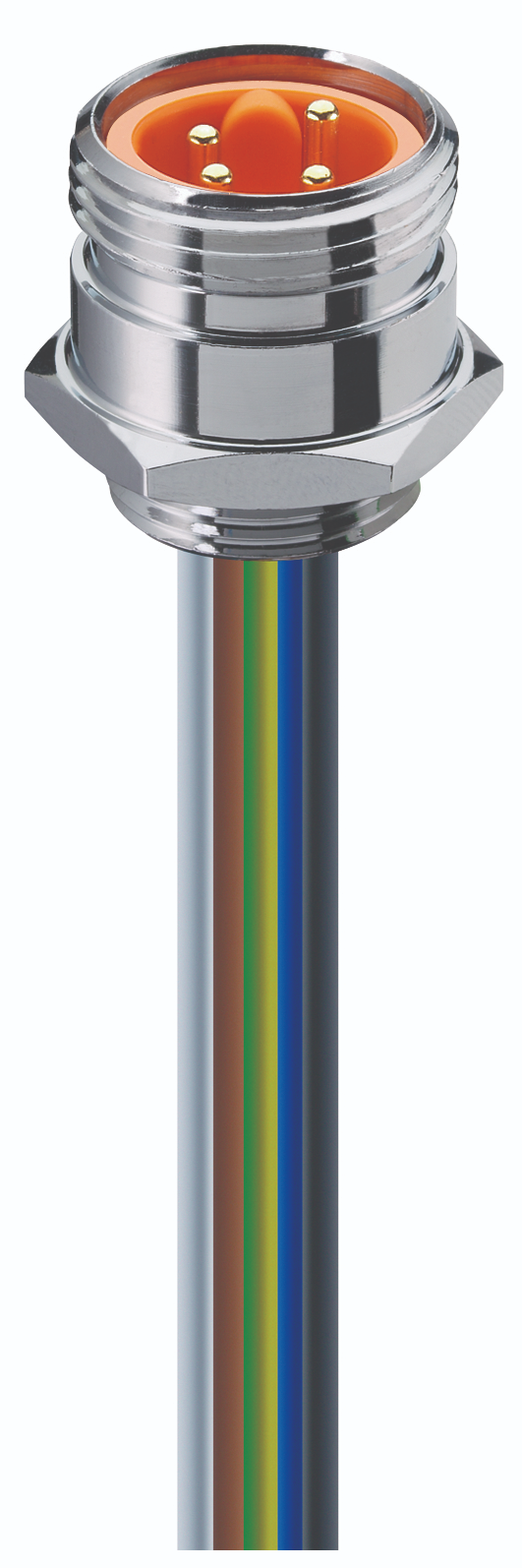

7/8" Power Receptacle Connector: Male, front mount, 4-pin, silver housing, 230 V AC/DC, 9 A, 0.50 mm²

The 7/8" Power Receptacle Connector is a highly reliable and efficient component designed for power connectivity applications. This male, front mount connector features a 5-pin (4+PE) configuration and is housed in a sturdy silver casing. It operates at a voltage of 230 V AC/DC with a current rating of 9 A and a conductor size of 0.50 mm², making it suitable for a variety of industrial environments. The connector is unshielded and offers an IP68 protection rating, providing excellent resistance against dust and water when mounted and locked properly. The benefits of this connector include robust construction with materials like CuZn and TPU ensuring long-lasting durability. The nickel-plated housing provides additional protection against environmental factors. Its 250 V AC/DC rated voltage and reliable performance up to an operating temperature range of -25 °C to +90 °C make it ideal for demanding conditions. Additionally, it is RoHS compliant, ensuring safe and environmentally friendly use. This connector is ideal for applications requiring stable and secure power connections, such as industrial automation systems, machinery, and other equipment that demands reliable power transmission. Its 5-wire conductor with PVC insulation ensures safe and efficient electrical flow.

The 7/8" Power Receptacle Connector is a highly reliable component designed for robust power connections. This male front mount connector features a 2-pin configuration housed in a durable silver case. It operates at a voltage of 230 V AC/DC and can handle a current of up to 12 A. The conductor size of 0.75 mm² ensures efficient electrical performance. Made with top-grade materials, including a CuZn nickel-plated housing and Cu/Au contact plating, this connector ensures excellent conductivity and long-term durability. With an IP68 protection rating, it is suitable for harsh environments and offers high resistance to moisture and dust. The key benefits of this connector include its high current-carrying capacity, robust construction, and reliable performance in various industrial applications. The 7/8" connector's front mount design simplifies installation, while the 2-pin configuration is versatile for various power delivery tasks. This connector is ideal for use in industrial automation, machinery, and other applications that require secure and efficient power connections. Attach this connector in systems where reliability and durability are paramount, ensuring consistent performance even in demanding conditions.

The 7/8" Power Receptacle Connector is a male, front mount connector with a robust silver housing, designed for efficient power transmission. This 4-pin connector operates at 230 V AC/DC and can handle up to 9 A of current. It is meticulously crafted with a contact base material of CuZn and a contact bearer of TPU, ensuring durability and reliability. With an IP68 rating, it offers superior protection against dust and water, making it suitable for harsh environments. Additionally, the connector includes a neoprene O-ring for secure sealing.

The 7/8" Power Receptacle Connector is designed for reliably connecting power in various industrial applications. This male, front mount connector features 3 pins (2+PE) and has a robust silver housing. It supports an operating voltage of 230 V AC/DC and a rated current of 12 A, providing efficient power transmission. The connector is suitable for conductor sizes of 0.75 mm², offering versatility for different wiring needs. **Benefits:** - High durability with nickel-plated CuZn housing and Neoprene O-Ring. - Ensures secure connections with ≤ 10 mOhm contact resistance. - Wide operational temperature range from -25 °C to +90 °C. **Applications:** Ideal for industrial automation, machinery, and equipment requiring reliable power connections. The connector's IP68 rating ensures it withstands demanding environments, making it suitable for outdoor and high-pollution settings.

1" Power Receptacle: Male, straight, 7-pin, front mount, 1/2" 14-NPT panel tap, 600 V, 8 A, 16 AWG, US Color Code

The 7/8" Power Receptacle Connector is an essential component for power connectivity in various industrial settings. This male connector, designed for front mounting, features a robust 5-pin (4+PE) configuration. It operates at a voltage of 230 V AC/DC and can handle a current of up to 9 amperes. The connector's housing is made from nickel-plated CuZn, providing excellent durability and corrosion resistance. The insulation materials, TPU and PVC, ensure safe operation within a temperature range of -25 °C to +90 °C. This connector meets the IP68 protection degree, making it ideal for challenging environments. The benefits of this connector include its high insulation resistance (> 10^9 Ohm) and low contact resistance (≤ 10 mOhm), ensuring reliable and efficient power transmission. Its robust construction and compliance with the RoHS directive make it a safe and environmentally friendly choice for industrial power connections. This connector is suitable for a wide range of applications, including industrial automation systems, machinery, and electrical distribution networks. It should be used in combination with compatible connectors from Hirschmann or Lumberg Automation to maintain its IP68 rating.

The 7/8" Power Receptacle Connector is designed for robust power connections, offering a male, front mount configuration with 5 pins (4+PE). It features a silver nickel-plated housing, supporting 230 V AC/DC at 9 A with a conductor size of 0.50 mm². The connector is suitable for applications requiring durable and reliable connectivity, particularly in industrial and automation settings. Constructed with CuZn for the contact base material and TPU for the contact bearer, the device achieves a high insulation resistance of ˃ 10^9 Ohm and a contact resistance of ≤ 10 mOhm. With an IP68 protection rating when combined with appropriate connectors, it is resistant to dust and water, making it ideal for harsh environments. The ambient operating temperature ranges from -25°C to +90°C, ensuring consistent performance under various conditions.

The 7/8" Power Receptacle Connector caters to high-power requirements with its robust design and high-quality materials. This male, front-mount connector features a 4-pin configuration, housed in a durable silver housing. It operates efficiently at 230 V AC/DC and supports currents up to 9 A. The connector accommodates conductor sizes up to 0.50 mm², ensuring reliable performance under varied industrial conditions. Constructed with top-grade CuZn contacts plated with Cu/Au and a TPU contact bearer, it ensures superior conductivity and resistance to wear. The IP68 protection rating signifies excellent resistance against dust and water, making it suitable for demanding environments. This connector is ideal for use in industrial automation, machinery, and other high-reliability electrical applications where secure and stable connections are essential.

The 7/8" Power Receptacle Connector is designed for reliable power transmission. This male, front mount connector features a 3-pin configuration (2+PE) and is crafted with a durable silver housing. It operates efficiently at a voltage rating of 230 V AC/DC and a current rating of 12 A, making it suitable for various industrial applications. The connector supports a conductor size of 0.75 mm², ensuring secure and stable connections. With its IP68 protection rating, it offers robust resistance to dust and water, making it ideal for harsh environments. The nickel-plated CuZn material enhances its durability and conductivity, while the Neoprene O-ring ensures additional sealing capability.

The 7/8" Power Receptacle Connector is a robust and reliable male front mount connector designed for power applications. This connector features a 2-pin configuration, ensuring a secure and stable connection. The silver housing provides enhanced durability and corrosion resistance, making it ideal for demanding environments. Operating at 230 V AC/DC and a rated current of 12 A, it is capable of handling significant power loads. The contact bears are made of CuZn with Cu/Au plating for improved conductivity and contact resistance stability. It has an IP68 rating, ensuring maximum protection against dust and water, making it suitable for both indoor and outdoor applications. The connecting cables are designed with a 0.75 mm² conductor size, ensuring reliable power transmission.
