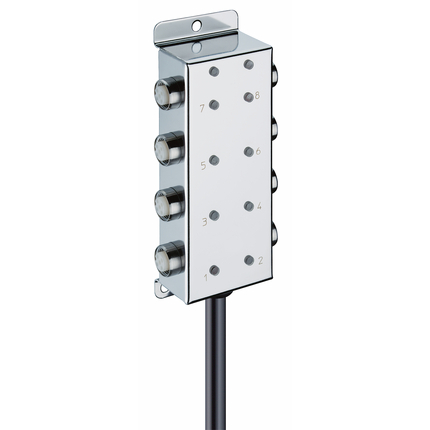

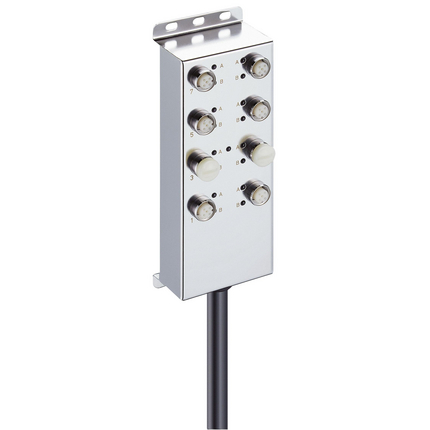

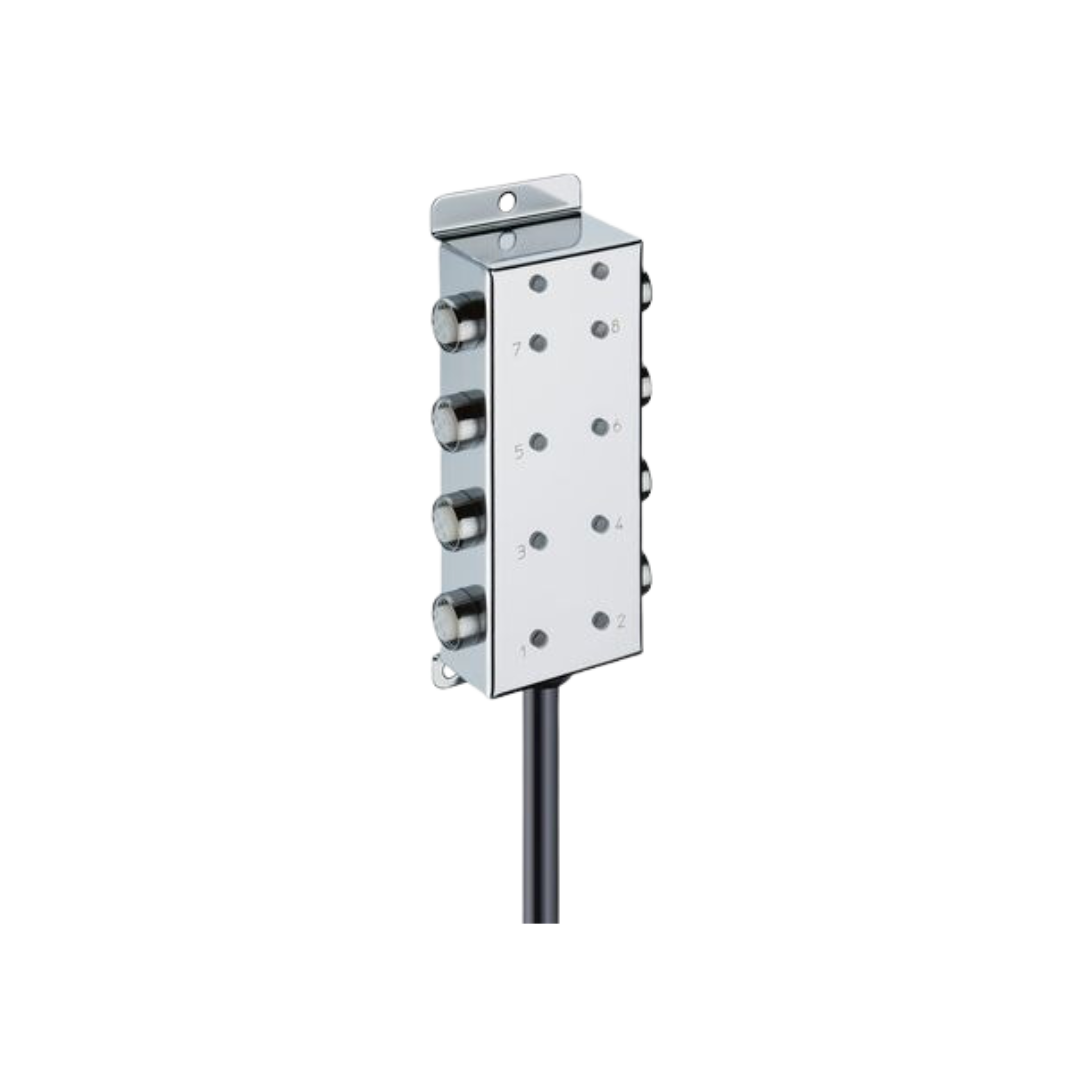

M12 Actuator/Sensor Distribution Box Stainless Steel With LED and Cable

The ASB module with 8 ports offers reliable performance in demanding environments. Encased in durable stainless steel housing, it features side connections and uses M12, 5/3-poles, A-coded interfaces. The module is potted for additional protection and operates efficiently within a wide ambient temperature range (-25°C to 70°C). With an IP67/IP69k rating, it ensures protection against dust and high-pressure water jets. The device supports various input wiring configurations, including 2-, 3-, and 4-wire sensor types, accommodating PNP sensors with a maximum current of 1.5 A per connector. Additionally, it has built-in LED indicators for system status and individual port status, enhancing operational monitoring. Compliant with CE, RoHS, and China RoHS standards, the ASB module embodies robust compliance and environmental safety.

The ASB 8-port module is a versatile and robust solution designed for industrial environments. Encased in a durable stainless steel housing, it offers superior protection against dust and water with IP67 and IP69k ratings. Each port is equipped with LED indicators for easy status monitoring, making it ideal for real-time diagnostics and maintenance. The module supports a double I/O configuration per port, providing greater flexibility and efficiency in various applications. The M12, 5-pole, A-coded connectors ensure secure and stable connections, while the open-end control cable interface simplifies installation. The ASB module operates efficiently within a broad temperature range of -25 °C to 70 °C, making it suitable for diverse industrial settings.

The ASB with 8 ports is a highly functional and durable device suitable for demanding industrial applications. Encased in a rugged stainless steel housing, it provides robust protection and ensures longevity even under harsh environmental conditions. Each port features an LED for status indication and supports double I/O, offering enhanced connectivity and versatility. The I/O connections use M12 5-pole A-coded connectors, accommodating various wiring configurations (2-, 3-, or 4-wire) for broad compatibility with different sensor types. One of the standout benefits of this product is its high level of protection, with an IP67/IP69k rating, ensuring it can withstand water jets and dust ingress, making it ideal for dirty or wet environments. The device also operates within a wide ambient temperature range of -25°C to 70°C, allowing for use in diverse climatic conditions. Additionally, it features green and yellow LEDs for system and port status indicators, providing clear and immediate feedback on operational status. This device can be applied in a multitude of industrial settings where reliable and secure I/O connectivity is critical, such as automation systems, manufacturing plants, and process control environments. Its compliant with various safety and environmental standards, including CE and RoHS, and has approvals from UL and CSA, ensuring it meets rigorous industry requirements.

The ASB is a highly versatile device featuring 8 ports with LED indicators, housed in a durable stainless steel enclosure. Each port provides double I/O connectivity, making it ideal for complex networking scenarios. The device is equipped with M12, 5-pole, A-coded I/O connections, and an open-end control cable interface. Constructed for demanding environments, it boasts an IP67/IP69k rating, ensuring it is water and dust resistant. With a temperature operation range of -25°C to 70°C and a maximum current per connector of 1.5A, it guarantees reliable performance in various conditions. The device also includes green LED status indicators for system power and yellow LEDs for port status, enhancing monitoring and diagnostics.

The ASB, comprising 8 ports with LED indicators, is designed for reliable and efficient performance in demanding environments. Encased in a durable stainless steel housing, it ensures longevity and resistance to environmental factors. The product features side connections for easier access and management, and an IP67/IP69k rating, making it dust-tight and water-resistant even under high pressure and temperature conditions. The M12, 5/4-pole, A-coded connectors support single I/O per port configuration, allowing straightforward integration into various industrial setups. Additionally, it comes with a green LED system supply status indicator and yellow port indicators, facilitating easy monitoring of operational status. It's compliant with CE, RoHS, and China RoHS standards, and its compact size of 59 x 28 x 129 mm makes it suitable for tight installations.

The ASB 8-port module with LED status indicator is designed for robust industrial applications. Encased in a stainless steel housing and equipped with side connections, this module ensures high durability and efficiency in harsh environments. It features M12 connectors with 5/4-poles, A-coded configuration, and is potted to provide additional protection. The IP67/IP69k rating ensures that the module is dust-tight and resistant to high-pressure water jets, making it ideal for demanding settings. The operational temperature ranges from -25 °C to 70 °C, with a temporary upper limit of 80 °C. The module supports single I/O per port and open-end control cable interface. The benefits of this module include enhanced durability due to its stainless steel construction, clear status indication via green and yellow LEDs for system and port states, and a high protection rating for reliable operation in adverse conditions. It supports a wide voltage range of 10 V DC to 30 V DC with a nominal voltage of 24 V DC, ensuring compatibility with various industrial automation systems. This module is suitable for applications requiring robust and reliable connectivity in industrial automation, including assembly lines, machine control, and other automation solutions where high protection against environmental factors is necessary. The compliance with CE, RoHS, and China RoHS ensures adherence to global safety and environmental standards.

The ASB, an 8-port LED module, is encased in a durable stainless steel housing with side connections, making it ideal for industrial applications requiring reliable I/O operations. The device supports M12 connectors with a 5/4-pole A-coded configuration and offers a dependable solution with its open-end control cable interface. Designed to withstand demanding environments, the ASB features an IP67/IP69k protection rating and operates efficiently in ambient temperatures ranging from -25°C to 70°C. Each port is equipped with a yellow LED status indicator, ensuring seamless monitoring of connected devices. The module supports both PNP sensor types and various input/output wiring configurations, catering to diverse operational needs. Its stainless steel construction, combined with RoHS and China RoHS compliance, ensures longevity and environmental responsibility.

The ASB with 8 ports and LED indicators features a robust stainless steel housing, making it a reliable choice for industrial settings. Each port is equipped with an M12, 5/4-poles A-coded connection, ensuring secure and efficient data transmission. The open-ended control cable interface adds flexibility for various applications, and its side connections optimize space management. With an IP67/IP69k rating, this device offers exceptional protection against dust and water ingress, ensuring durability in harsh environments. The unit is also potted and has a wide operational temperature range from -25°C to 70°C, making it resilient to fluctuating conditions. The status indicators (green for system supply and yellow for ports) provide quick visual checks, ensuring operational efficiency.
