Field Attachables

The M23 Power Field Attachable Connector is an essential component for robust industrial and automation applications. This connector features a straight, male design with 19 pins, housed in a durable silver exterior. Rated for 50 V AC / 60 V DC, it ensures dependable connections in various environments. With an operational temperature range of -40°C to +70°C and an IP65 protection rating, this connector is built to withstand harsh conditions. It includes a coupling nut attachment and is suitable for cables with a diameter ranging from 6 mm to 8 mm, making it versatile for different setups. The M23 connector is renowned for its durability and effectiveness, thanks to its high-quality materials like CuZn and nickel-plated finishes.

The M23 Power Field Attachable Connector is a robust field attachable power connector designed for reliable and efficient performance. This male, straight connector comes with 19 pins, encased in a durable silver housing. It has an operating voltage of 120 V AC/DC and allows for a maximum current rating of 16 x 8 A for 1 mm pins and 3 x 10 A for 1.5 mm contacts. The connector is designed for easy soldering connections and can accommodate cables with a diameter ranging from 10 mm to 14 mm. With an insulation resistance greater than 10^9 Ohm and a protection degree of IP65, it ensures safe and secure connections. The robust construction with CuZn/Ni housing material further enhances its durability, making it suitable for various industrial applications. Its operational temperature ranges from -40°C to +70°C, providing flexibility in different environmental conditions. Compliance with RoHS standards ensures it meets environmental and safety guidelines, making it a reliable choice for power connection needs.

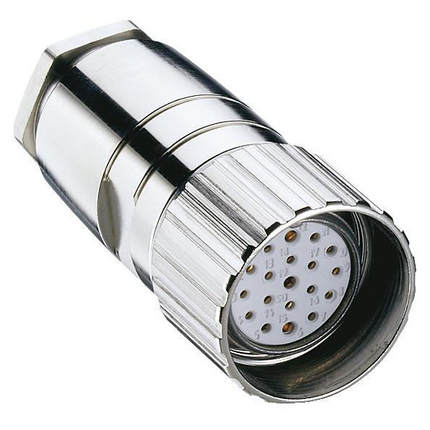

The M23 Power Field Attachable Connector is a high-quality, female, straight connector with 19 pins. It features a robust silver housing and is designed to operate at 50 V AC / 60 V DC. This connector is part of the Lumberg Automation brand and belongs to the M23 Power series. It's unshielded, with a coupling nut attachment type, and suitable for solder connections. The connector supports an ambient temperature range of -40°C to +125°C and is rated IP65 when properly mounted and locked. The high insulation resistance and mating cycle count (≤ 100) ensure reliable, long-term performance, making it ideal for industrial applications.

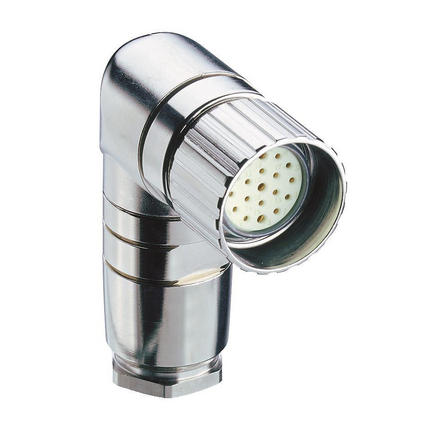

The M23 Power Field Attachable Connector is a high-quality, female, angled, 19-pin connector with a silver housing. Designed for robust power connections, it operates at 50 V AC or 60 V DC with a high-rated current capacity of 16 x 8 A (pin-Ø 1 mm) and 3 x 10 A (contact-Ø 1.5 mm). The connector ensures a reliable insulation resistance of over 10^9 Ohm and supports up to 100 mating cycles. It features a solder type connection, with a suitable cable diameter range from 10 mm to 14 mm. The product is built with durable materials, including a CuZn contact base, GD-Zn housing, and a PBT contact bearer rated UL 94 V0 for flammability, providing overall protection to IP65. The connector is RoHS compliant, making it environmentally safe. Ideal for industrial applications, it is designed to withstand demanding environments with an operating temperature range from -40°C to +90°C.

M23 Power Field Attachable Connector: Male, angled, 19-pin, silver housing, 120 V AC/DC

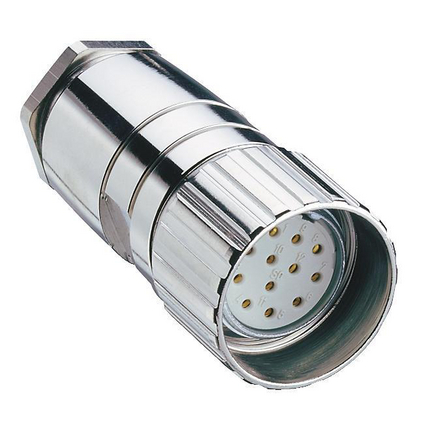

The M23 Power Field Attachable Connector is a robust and reliable solution for demanding industrial environments. This field attachable connector is designed with a straight layout, featuring 12 pins and a female gender configuration. The product comes with a durable silver housing that ensures effective operation under tough conditions, supporting both 50 V AC and 60 V DC voltage ratings. The coupling nut attachment ensures a secure fit, while the solder connections guarantee stable electrical performance. Rated at 8A, this connector is both efficient and sturdy, making it ideal for different power applications. Additionally, the connector offers excellent insulation resistance of ˃ 10^9 Ohm and can withstand operating temperatures ranging from -40°C to +125°C. It has an IP65 protection rating, ensuring it is well-protected against dust and water ingress when properly mounted and locked. It is RoHS compliant, ensuring adherence to environmental and safety standards.

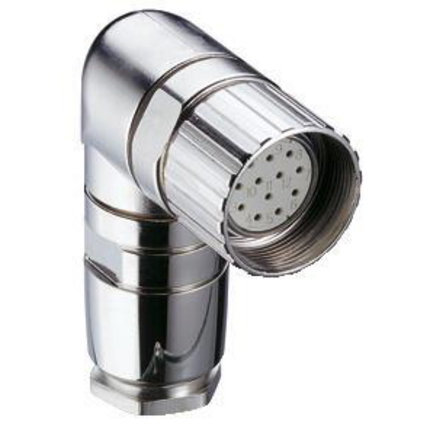

The M23 Power Field Attachable Connector is a robust and reliable solution designed for industrial automation systems. This female connector features an angled design and includes 12 pins, making it ideal for applications requiring multiple connections in a compact form. Encased in a silver housing, it operates at 50 V AC / 60 V DC and can handle a rated current of up to 8A. The connector supports cable diameters between 10 mm to 14 mm and employs a solder connection type. Rated IP65, it provides strong protection against dust and water ingress, ensuring durability in harsh environments. The connector is RoHS compliant and features materials such as CuZn, PBT, and nickel-plated components, enhancing its long-term performance and reliability.

The M23 Power Field Attachable Connector is a robust and reliable component designed for industrial applications. It features a straight, male design with 19 pins and is housed in a durable, silver material. The connector supports a voltage of 50 V AC / 60 V DC, making it ideal for various power transmission requirements. With a coupling nut attachment type and an IP65 rating, it offers excellent versatility and secure connections. The connector can handle a rated current of 16 x 8 A and 3 x 10 A with an insulation resistance greater than 10^9 Ohm. It is designed for solder connections and is compatible with cables ranging from Ø10 mm to Ø14 mm. The durable construction with nickel-plated materials ensures stability and longevity in demanding environments.

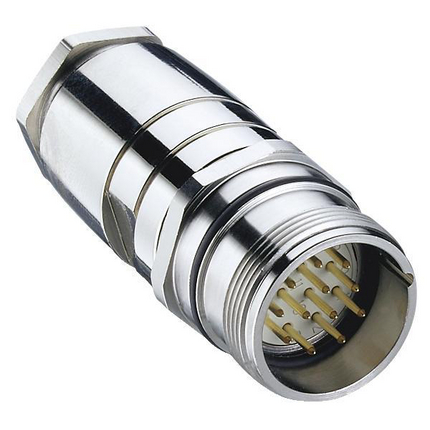

The M23 Power Field Attachable Connector is designed to meet industrial needs with robust performance. This male, straight connector features 12 pins, making it suitable for complex power transmission applications. Its silver housing provides durability and reliable protection in various conditions. Capable of operating at 120 V AC/DC, this connector is ideal for industrial settings requiring consistent and secure power connections. With a rating of IP65, it ensures protection against dust and water when properly mounted. The connector supports a maximum current of 8A and conductor cross-sections up to 1.0 mm², making it versatile for different cable types ranging from 6 mm to 8 mm in diameter. Made from high-quality materials including CuZn and PBT, it offers long-lasting performance while complying with RoHS standards. The solder connection type ensures a secure and steady link, with a coupling nut attachment for easy installation.

The M23 Power Field Attachable Connector from Lumberg Automation is a versatile and robust solution designed for reliable electrical connections. This connector features a male, straight design with 12 pins, housed in a durable silver casing. It supports an operating voltage of 50 V AC / 60 V DC and a rated current up to 8A, making it ideal for applications requiring reliable connectivity. The connector ensures an impressive insulation resistance of greater than 10^9 Ohm and has a protection rating of IP65 when properly mounted and locked, providing enhanced protection against dust and water ingress. The solder-type connection and PG 13.5 cable gland facilitate secure and straightforward installation. Additionally, the connector is made from high-quality materials such as CuZn, PBT, and GD-Zn / CuZn Ni for longevity and resilience in various operational environments. It operates efficiently in temperatures ranging from -40°C to +70°C. The M23 Power Field Attachable Connector is RoHS compliant, ensuring adherence to environmental standards.

The M23 Power Field Attachable Connector is designed for industrial applications requiring a robust and reliable connection. It features a male, straight, 12-pin configuration and is housed in durable silver material. The connector operates at 50 V AC / 60 V DC and supports current up to 8A, making it ideal for power transmission applications. The device is solder-connected and compatible with cables ranging from Ø10 mm to Ø14 mm, ensuring flexibility in various setups. With a protection degree of IP65, it is designed to withstand environmental stress and industrial pollutants. The connectors ensure safe operation between -40°C to +70°C, ensuring performance across a wide temperature range.
