Single-Ended Cordsets

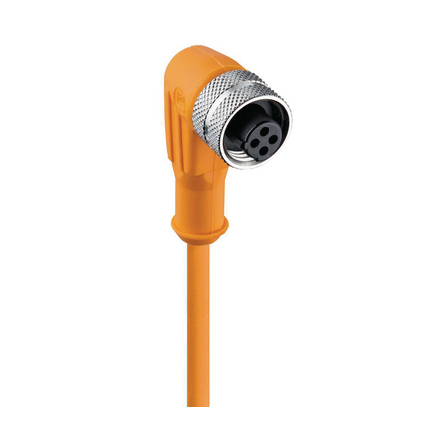

RKWT 4U-07/5 M
1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset
The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset is engineered for high-performance sensor and actuator applications. Featuring a female, angled, 4-pin, U-coded connector, this cordset operates efficiently at 230 V AC/DC with a maximum current of 4 A. The robust construction includes a PVC orange cable with 4 wires, each 0.25 mm² in size, ensuring durability and reliability. The orange body and angled design make installation and identification straightforward in various industrial settings.
This cordset offers numerous benefits including high operational reliability, ease of connection, and resilience in challenging environments thanks to its IP65 and IP67 protection ratings. It is engineered to withstand temperatures from -40 °C to +90 °C in fixed installations, making it suitable for a wide range of industrial uses. The materials used, such as CuSn for contact base and nickel-plated CuZn for attachment material, guarantee long-lasting performance and stability.
Applications for this cordset are extensive, encompassing automated manufacturing systems, industrial robots, and machinery where reliable sensor and actuator connections are crucial. Its angled design and sturdy construction make it ideal for confined spaces and rigorous industrial settings where efficient and secure connections are essential.
€20.61
per item

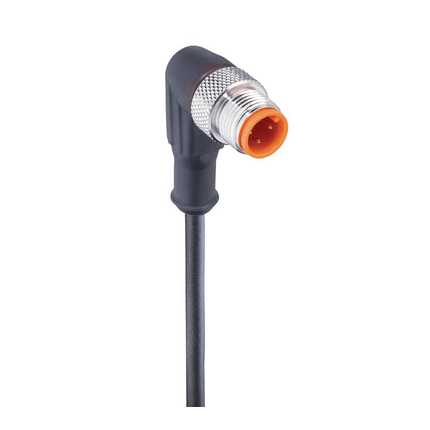

RSWT 3-224/2 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is expertly designed for optimal performance in various industrial applications. This cordset features a male, angled, 4-pin configuration, and is A-coded. It has a translucent body that enhances visibility and inspection. The cordset operates at 230 V AC/DC with a rated current of 4 A, making it suitable for numerous robust applications. The accompanying PUR black cable consists of 3 wires with a conductor size of 0.34 mm², offering excellent flexibility and durability. This product boasts an IP65, IP67, IP68, and IP69K protection rating, ensuring its resilience in harsh environments. Additionally, it complies with various flammability and environmental standards, including UL 94 HB and RoHS compliance, guaranteeing safety and reliability. The M12 standard design and high-quality materials, such as CuSn and Cu/Au plating, provide consistent and secure connections.
€16.60
per item

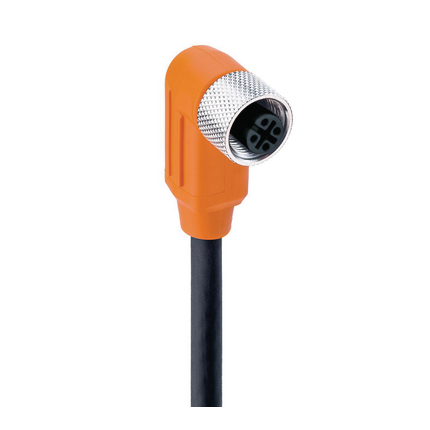

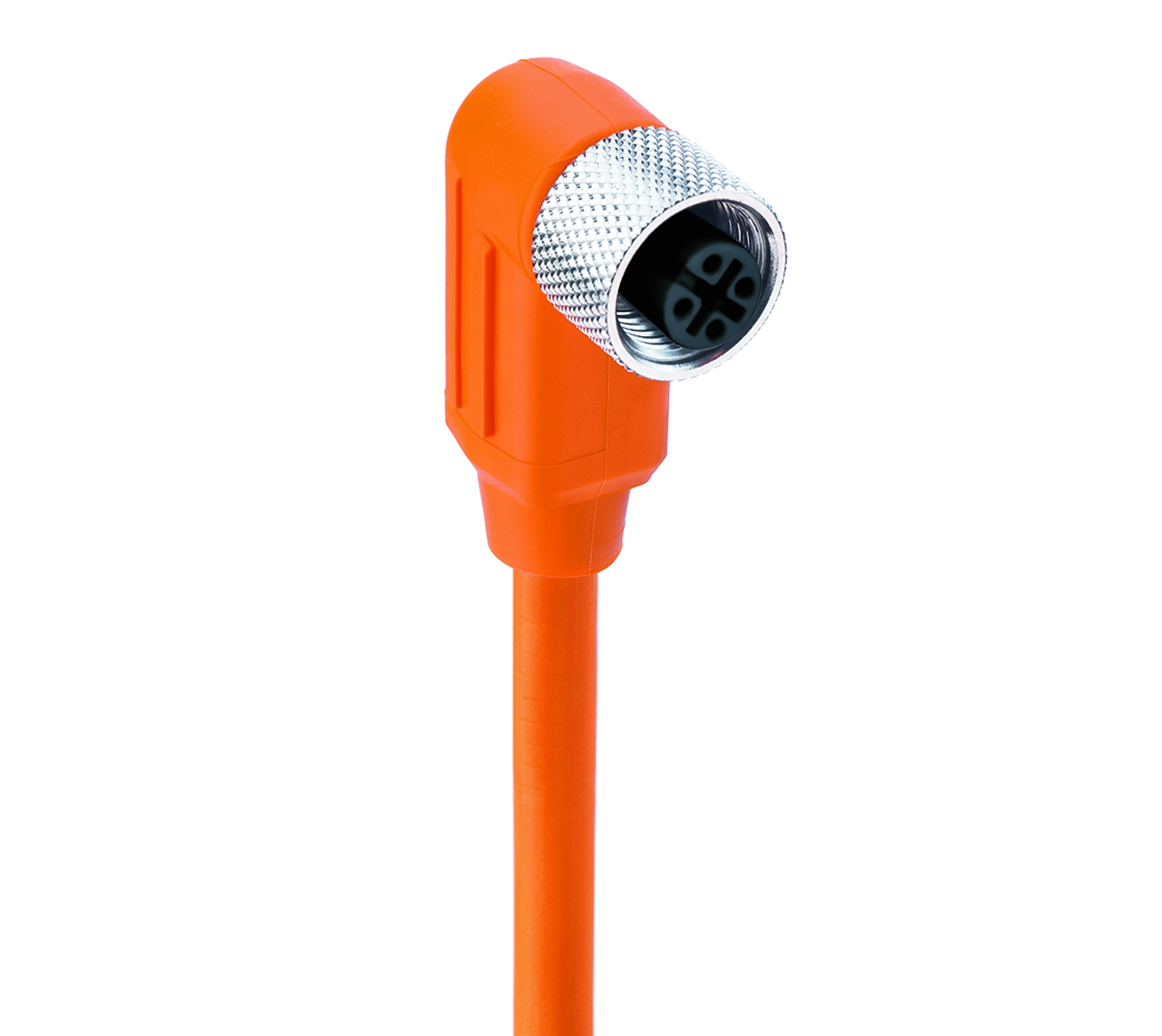

RKWTS 4-288/3 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a reliable and high-performance solution for industrial applications. This female connector, with a 4-pin, A-coded configuration, features an angled design and shielding to ensure efficient signal transmission even in challenging environments. Encased in an orange TPU molded body, it operates at 50 V AC / 60 V DC and carries up to 4 A, making it suitable for various electronic devices. The black PUR cable with 4 wires, each 0.34 mm², is robust and flexible, designed to withstand harsh conditions. With operating temperatures ranging from -40 °C to +90 °C and an IP rating of IP65, IP67, IP68, and IP69K, it's suitable for a variety of installations.
This cordset's benefits include its excellent stability under voltage surges, minimal contact resistance, and high insulation resistance, ensuring consistent performance. The robust cable sheath is hydrolysis and microbe-resistant, making it ideal for environments where these factors are a concern.
Applications for this cordset include industrial automation, machinery, and sensor connectivity, offering reliable connections for critical communications in manufacturing and process control settings.
€27.70
per item

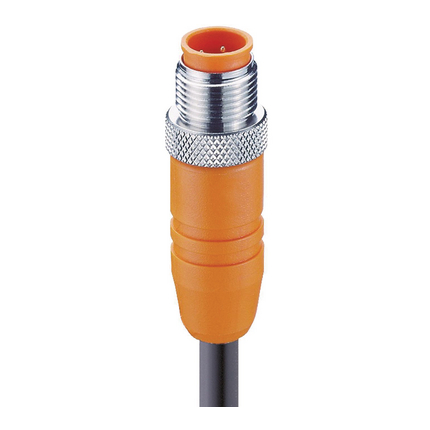

RST 5-72/10 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for reliable and efficient connections in various industrial applications. Featuring a 5-pin, A-coded, straight male connector with an orange body, this cordset supports 50 V AC/60 V DC and a current rating of 4 A. Its black PUR cable comes with 5 wires, each with a conductor size of 0.34 mm², ensuring optimal performance and durability. The cordset has an IP65/67/68/69K rating, making it suitable for harsh environments, and can operate within a temperature range of -40°C to +90°C. The high-quality materials and construction, including CuSn contacts and a TPU-GF contact bearer, enhance its reliability for sensor/actuator connections in industrial automation.
€32.42
per item
RKTS 4-182/50 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a robust and reliable solution for connecting sensors and actuators. This cordset features a female, straight, 4-pin, A-coded, and shielded configuration, all housed in a distinctive orange body. It is designed to operate at voltages up to 50 V AC or 60 V DC, with a current rating of 4 A. The cable itself is made of durable PVC with a diameter of 5.0 mm, contains four wires (0.34 mm² each), and offers protection levels up to IP65 and IP67 when properly mounted and coupled with compatible connectors.
The benefits of this cordset include excellent shielding for reliable performance in electrically noisy environments and robust construction to ensure long service life, even in harsh conditions. The IP67 rating ensures protection against dust and temporary immersion in water. The orange color aids in easy identification and installation.
This cordset is ideal for use in various industrial applications requiring dependable and stable electrical connections, including automation, sensor integration, and more. Its compatibility with standard M12 connections ensures broad usability across numerous platforms and systems.
€124.06
per item

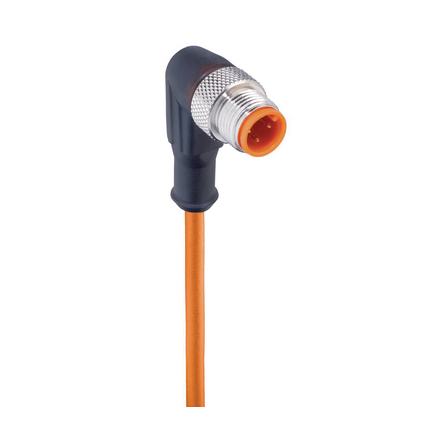

RSWT 4-07/5 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed with a male, angled, 4-pin, A-coded connector in a translucent body. It supports an operating voltage of 230 V AC/DC with a rated current of 4 A. The cordset includes a robust PVC orange cable with 4-wires of 0.25 mm² and is known for its durability and flexibility, suitable for various industrial applications. The unshielded design incorporates a coupling screw attachment, ensuring secure and reliable connections. Offering protection degrees IP65 and IP67, the cordset is resilient in harsh environments, making it ideal for diverse conditions.
€18.88
per item

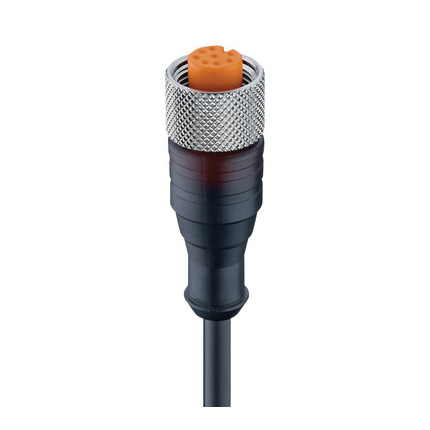

RKT 8-6-337/20 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is designed for versatile connectivity in industrial automations. It features a straight, female connector with 8 pins and A-coding, housed in a translucent body. This robust connector is suitable for both AC and DC operations at 30 V and can carry a current of up to 2 A. The cordset boasts a black PUR cable with 6 wires, each with a conductor size of 0.34 mm², ensuring reliable performance in demanding environments. It complies with stringent operational standards, including IEC 61076-2-101, and provides robust protection with a high IP rating spanning IP65, IP67, IP68, and IP69K. The cable's material composition includes a copper conductor, TPU body, and nickel-plated CuZn attachment ensuring durability and resistance to harsh conditions.
€71.55
per item
RSTSN 8-299/3 M
M12 Standard Sensor/Actuator Single-Ended Cordset
M12 Standard Sensor/Actuator Single-Ended Cordset: Male, straight, 8-pin, A-coded, shielded, orange body, 30 V AC/DC, 2 A; PUR black cable, 8-wires, 0.25 mm²
€56.76
per item
RSTS 8-273/2 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is a high-quality connector for industrial sensor and actuator applications. It features a male, straight, 8-pin, A-coded, shielded connector with an orange body. The cordset operates at a rated voltage of 30 V AC/DC and a rated current of 2 A. The cable is made of PUR material and is black in color. It is designed with 8 wires, each with a conductor size of 0.14 mm², offering reliable performance in various environments. This connector ensures a secure attachment with a coupling screw and boasts robust shielding capabilities. It complies with multiple safety and environmental standards, making it a dependable choice for use in demanding industrial settings, especially in applications requiring high resistance to chemicals, oils, and extreme temperatures.
€29.71
per item

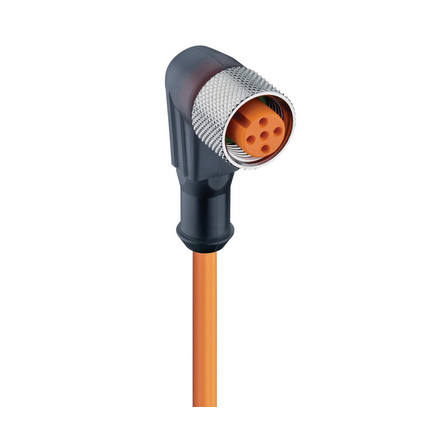

RKWT 5-70/2 M
M12 Standard Sensor/Actuator Single-Ended Cordset
The M12 Standard Sensor/Actuator Single-Ended Cordset is an essential component for integrating sensors and actuators in industrial automation systems. Featuring a female, angled, 5-pin, A-coded design with a translucent body, this cordset supports an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A. The durable PVC orange cable includes five wires—four of 0.34 mm² and one of 0.50 mm² (GNYE). With high-quality Cu/Au plated contacts and a robust coupling nut made from nickel-plated CuZn, this cordset ensures a reliable and stable connection. It is designed to handle up to 100 mating cycles and operates effectively in temperatures ranging from -25 °C to +70 °C. This product boasts an IP65/IP67 rating, ensuring exceptional protection against dust and water. The PVC crosslinked jacket and FKM O-ring further enhance its durability and resistance to chemicals and oils. Suitable for both fixed and flexible installations, it is ideal for use in challenging industrial environments.
€16.38
per item

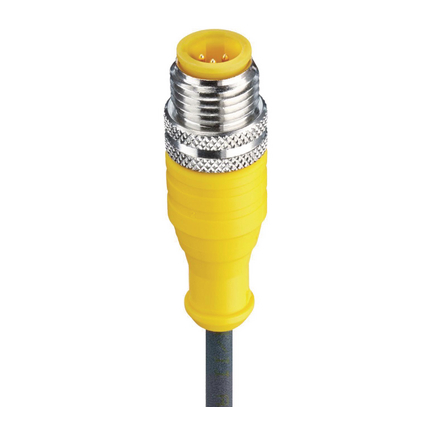

RST 3U-226/5 M
1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset
The 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset is a high-quality male connector designed for reliable performance in sensor and actuator applications. The straight, 3-pin, U-coded connector has a durable yellow body and is designed for effective operation at 230 V AC/DC and a current rating of 4 A. It comes with a robust PUR black cable, which includes 3 wires with a conductor size of 0.50 mm². This cordset ensures excellent contact resistance (≤ 10 mOhm) and insulation resistance (˃ 10^9 Ohm), and boasts a high protection degree rated at IP65, IP67, and IP69K, making it highly resistant to harsh environmental conditions. It can operate effectively across a wide temperature range from -40 °C to +90 °C.
This product offers notable benefits such as robust chemical and oil resistance, halogen-free materials, and high flexibility in cold environments. Its design excludes PVC and silicone, making it suitable for multiple industrial applications that require high-performance and reliable connectivity.
Ideal for use in diverse industrial environments, this single-ended cordset can be effectively applied in automation systems, machine controls, and other high-demand applications, ensuring seamless connectivity and consistent performance.
€21.56
per item

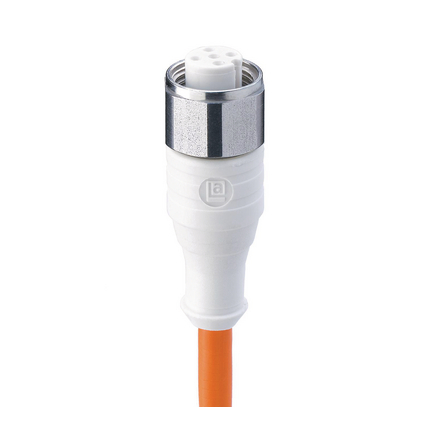

WRKT 5-522/25 M
M12 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset
The M12 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset is designed for stringent wash-down environments, making it ideal for applications in food and beverage manufacturing. Featuring a female, straight 5-pin, A-coded connector with a white body, this cordset operates under the voltages of 50 V AC / 60 V DC and supports up to 4 A current. The attached TPE orange cable has 5 wires, each of 0.25 mm², ensuring robust and reliable electrical connections. This cordset adheres to multiple protection ratings, including IP65, IP67, IP68, and IP69K, making it suitable for use in harsh and contaminating environments. Its CuSn contact base material with Cu/Au plating ensures excellent electrical conductivity and durability.
€76.67
per item
