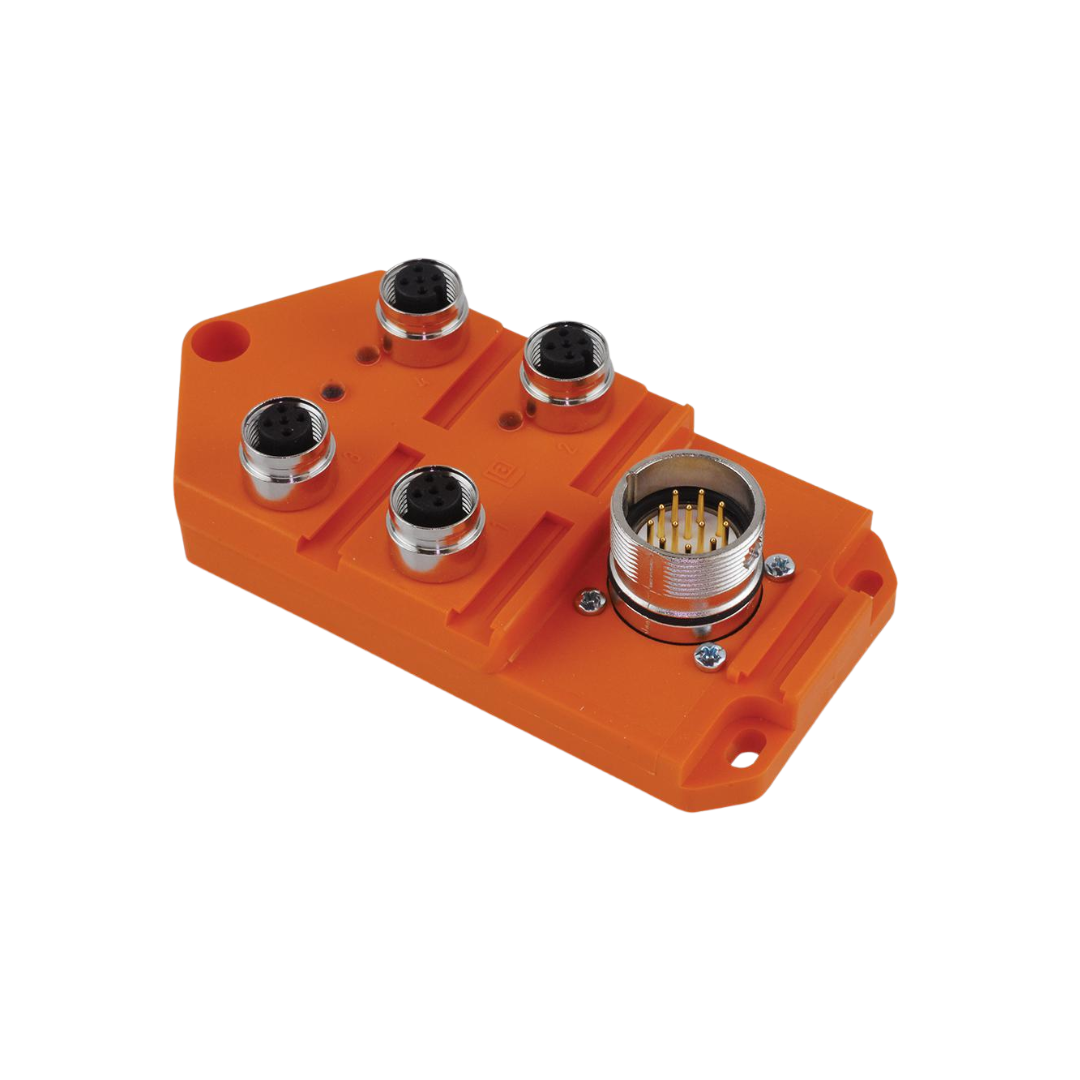

4-Port M12 Actuator/Sensor Distribution Box With LED and M23 Quick-Disconnect for Control Cable

The LioN-R passive provides robust industrial connectivity with its four ports, LED status indicators, and M23 connector. Featuring double I/O per port, this module ensures reliable and versatile performance. The housing material is a resilient zinc die-cast, nickel-plated for enhanced durability, and offers high protection with an IP65/IP67 rating. The device operates in a wide ambient temperature range, from -40 °C to 80°C, making it suitable for harsh environments. The control cable interface is M23, 19-poles, and the I/O connections are M12, 5-poles, A-coded, ensuring seamless integration into various systems. Additionally, the module supports both 2-, 3-, and 4-wire input wiring for PNP sensors and 2-, 3-wire output wiring, with galvanic isolation to prevent electrical interference. Easy to mount with standard M6 screws, the LioN-R passive is built for efficiency and reliability in industrial settings.

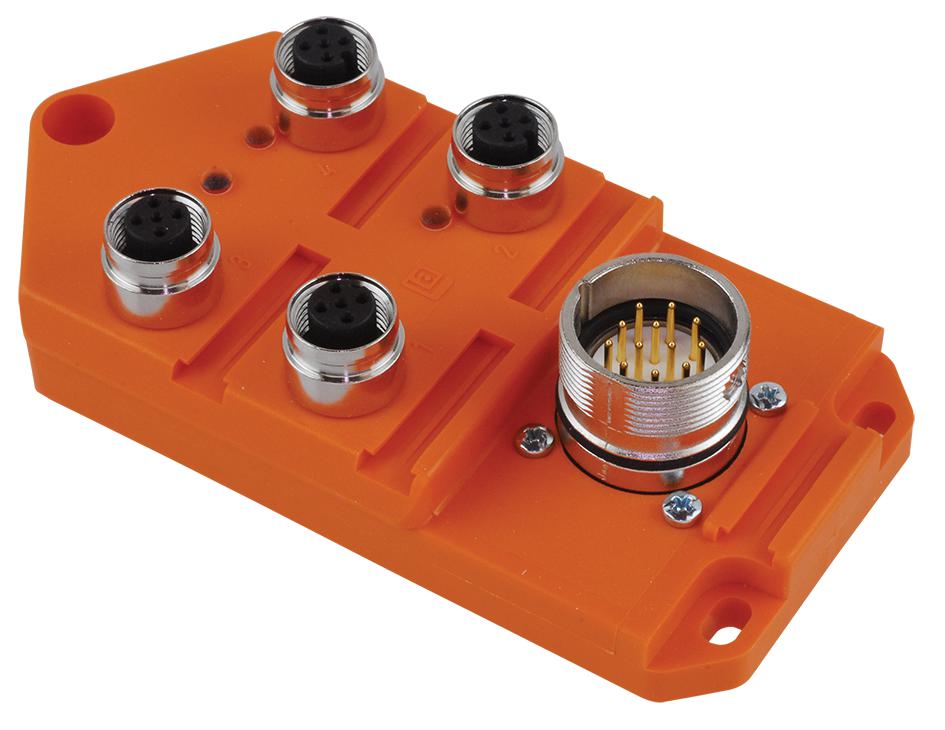

The ASB with FIXCON connector is designed for robust and efficient electrical connections. Featuring four ports and an LED system, it ensures clear status indication. The M23 connection enhances its versatility, making it suitable for various applications. The housing, made from durable TPU plastic, is orange and has an IP67 protection rating. With a wide ambient temperature operation range of -15 °C to 80 °C, this connector is ideal for industrial environments. The product includes M12 5/4-pole A-coded connections and a control cable interface with M23 12-poles. Additionally, the unit has a protection degree of IP67, pollution degree 3 according to EN 60664-1, VDE 0110-1 standards, and is potted for added durability. It supports 24 V DC actuator supply voltage with a nominal range between 10 V DC to 30 V DC and features LED indicators per channel for system status.

The ASB with FIXCON connector features 4 ports, equipped with LED status indicators, an M23 connection interface, and double I/O per port. Designed by Belden, this product has a robust housing made from TPU plastic, ensuring durability and reliability in various environments. It offers an IP67 protection rating, making it resistant to dust and water, provided it is mounted and locked with a compatible connector. The device supports various wiring configurations and is powered by a 24 V DC actuator supply with a range from 10 V DC to 30 V DC. The connector interfaces include M12 with 5 poles, A-coded for I/O connections, and M23 with 19 poles for control cable interfaces. The ASB connector is RoHS and China RoHS compliant, CE marked, and cULus and CSA approved. This makes it reliable for industrial applications requiring robust and efficient connectivity solutions.
