M12 - D coded Industrial Ethernet Receptacle female for PCB

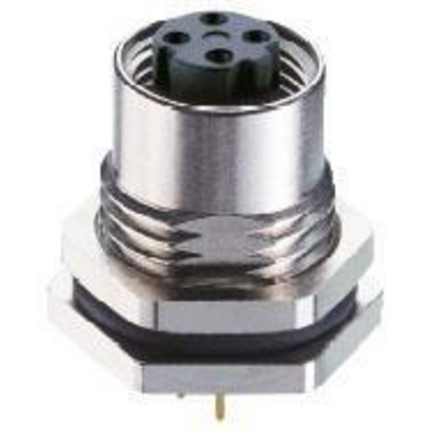

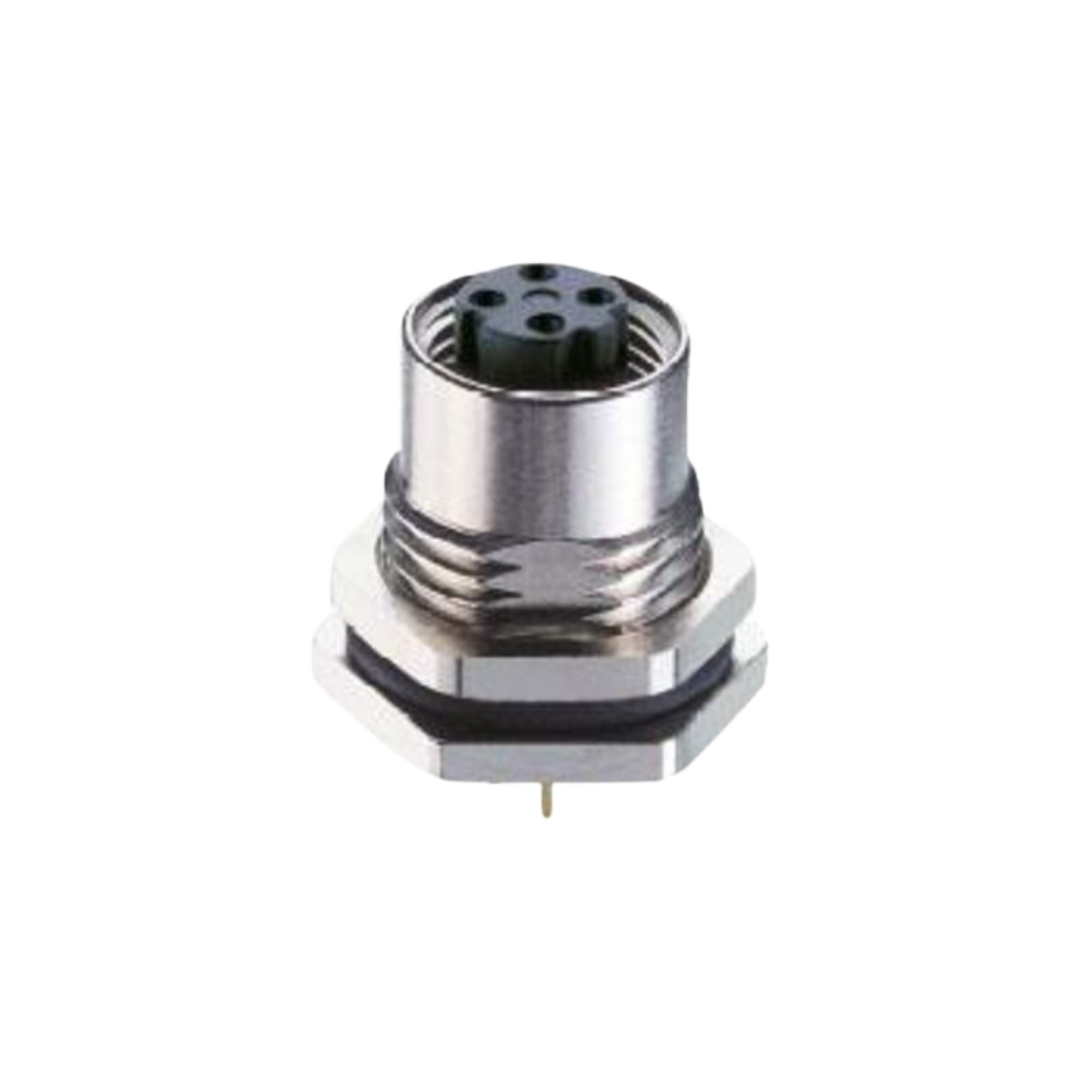

The Fast Ethernet Cat5e Data Receptacle Connector is designed to provide reliable and high-speed data transmission. It features a female, rear mount configuration with an M12 mating side and print contacts on the connecting side. This 4-pin connector is D-coded and unshielded, housed in a metallic grey casing that ensures durability and efficiency. Suitable for operating voltages of 50 V AC / 60 V DC, and rated for currents up to 4 A, this connector is built to handle demanding industrial environments. It also complies with IP65 and IP67 protection degrees, making it resistant to dust and water. One of the main benefits of this connector is its strong structural integrity with a nickel-plated housing and CuZn thread material, contributing to its robustness and long service life. With a contact resistance of ≤ 10 mOhm and insulation resistance of ˃ 10^9 Ohm, it ensures minimal electrical interference and high safety standards. The operating temperature range from -25 °C to +85 °C makes it versatile for various harsh conditions. Ideal for industrial automation and control systems, the Fast Ethernet Cat5e Data Receptacle Connector can be used in machinery, network systems, and data communication applications. Its rear mount and screw-locking attachment type provide secure and stable installations on printed circuit boards (PCB), enhancing the overall reliability of your data connections.
